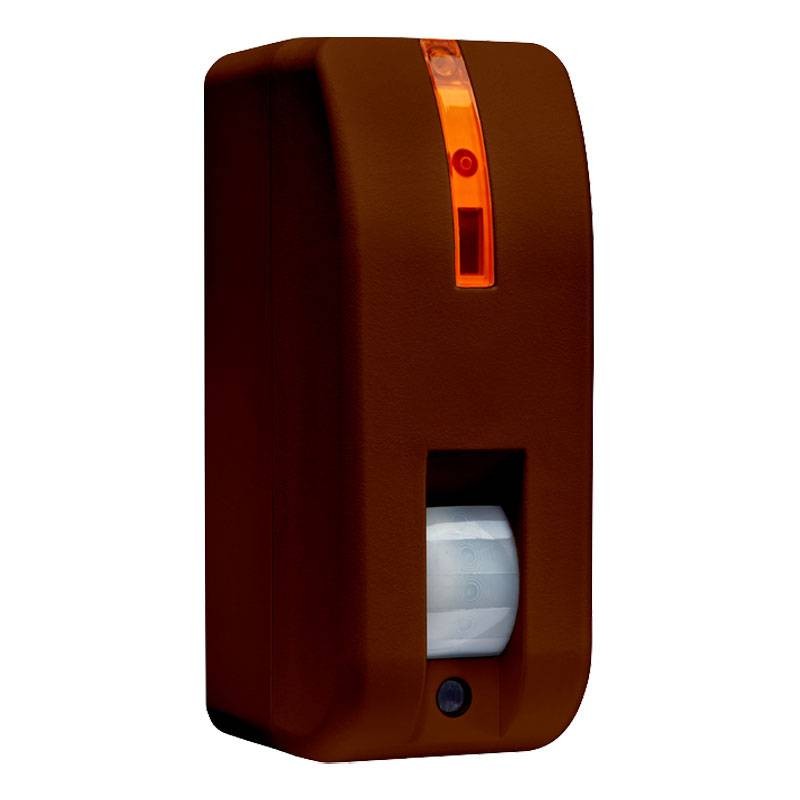

Elkron DT18AM/BR Dual Technology Antimasking Detector 80IM4500113
EKO 80IM4500113
8034034446994
Elkron DT18AM/BR dual technology detector, Antimasking function, for center window applications, brown color:
- Dual technology MW & PIR
- Microwave: 24 Ghz
- Application optimization between window and shutter
- Temperature compensation
- Max range: 4 m
- Infrared lens anti-masking
- AND operation
- Alarm time: 3 seconds
- Tamper: 100 mA@30V
- Color White
Elkron DT18AM/BR Dual Technology Antimasking Detector 80IM4500113
€67.10
Tax included
€67.10
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 20
Pay in installments with Klarna
D18AM or DT18AM/BR (white and brown) is a dual technology detector, designed and engineered for center-window installations and equipped with active infrared lens anti-masking.
Features:
- 12V +/- 3V power supply
- Max absorption (in memory all.) 32mA
- Standby absorption 20mA
- Microwave 24Ghz
- Alarm Time 3s
- Opto Relay 100mA / 24V
- Tamper 100mA / 30V
- Working Temperature -10°C / +55°C
- Ambient humidity 95%
- Theoretical MTBF 120,000 HOURS
- Dimensions without accessories 110x44x42mm
Functions:
- Infrared sensor anti-masking: enables infrared lens masking attempts to be reported
- LED OFF: disables detection displays while keeping memory displays enabled
- LED filter: allows viewing of detections only in the immediate vicinity of the sensor
- SHUTTER FILTER: when installed in the vicinity of a shutter, enabling the filter allows the detector to discard noise generated by movement or vibration of the shutter itself. Enabling is done via dip switch
- METER RANGE: the detector has an operating range of 3 meters
There are no reviews
Data sheet
- Type: Detectors
- System: Antimasking
- Installation: Doors and Windows
With Wires
