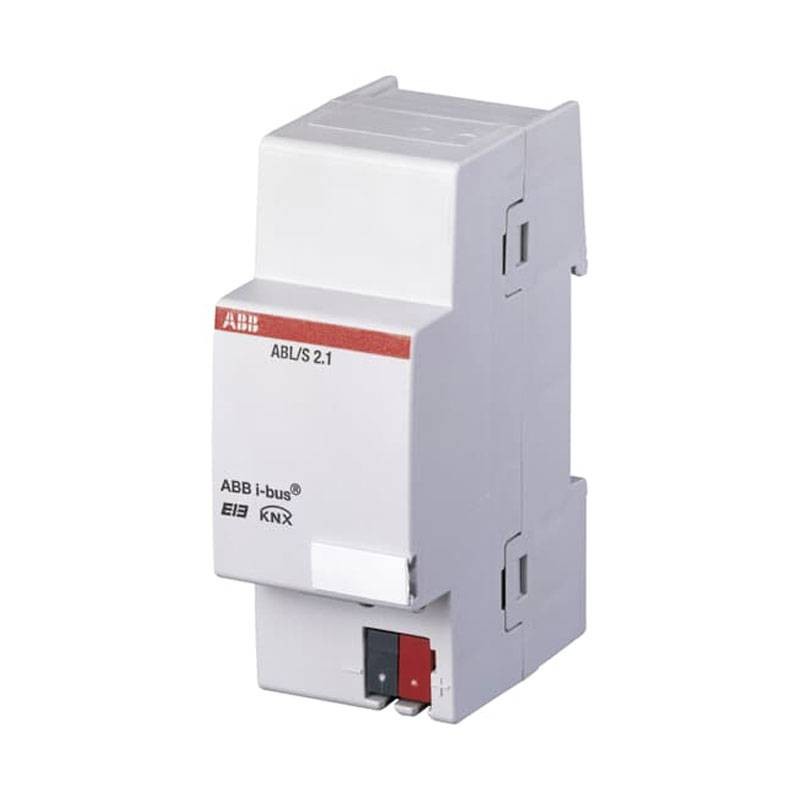

MDRC logic application module Abb KNX ABL/S 2.1 IP20 EC 833 0
ABB EC 833 0
4016779652643
Abb KNX ABL/S 2.1 application module with the following features:
- Degree of protection: IP20
- Compatible bus systems: KNX (TP)
- Width in number of modular intervals: 2
- Product height: 90 mm
- Product width: 36 mm
- Product depth: 64.5 mm
- Weight: 100 grams
MDRC logic application module Abb KNX ABL/S 2.1 IP20 EC 833 0
€813.09
Tax included
€813.09
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Further Abb RCBO combinations:
Further Abb circuit breaker combinations:
Enables the development of complex logic functions by simply combining different logic elements and ports using a graphical user interface as an ETS plug-in from ETS3. No additional software is required.
50 logic elements (AND, OR, 1 of N), 50 uni- and bi-directional gates, 30 timer modules (On/Off delay, pulse duration and staircase light controller), 10 comparators, 200 worksheets, 250 Markers and 254 In - and Outputs are available.
No additional power supply is needed; the device is powered by the KNX bus.
The device contains 50 logic operators, 30 gates, 30 timers and 10 comparators.
There are no reviews
Data sheet
- Type: Interface Modules
- Modules: 2
- Degree of protection: IP20
