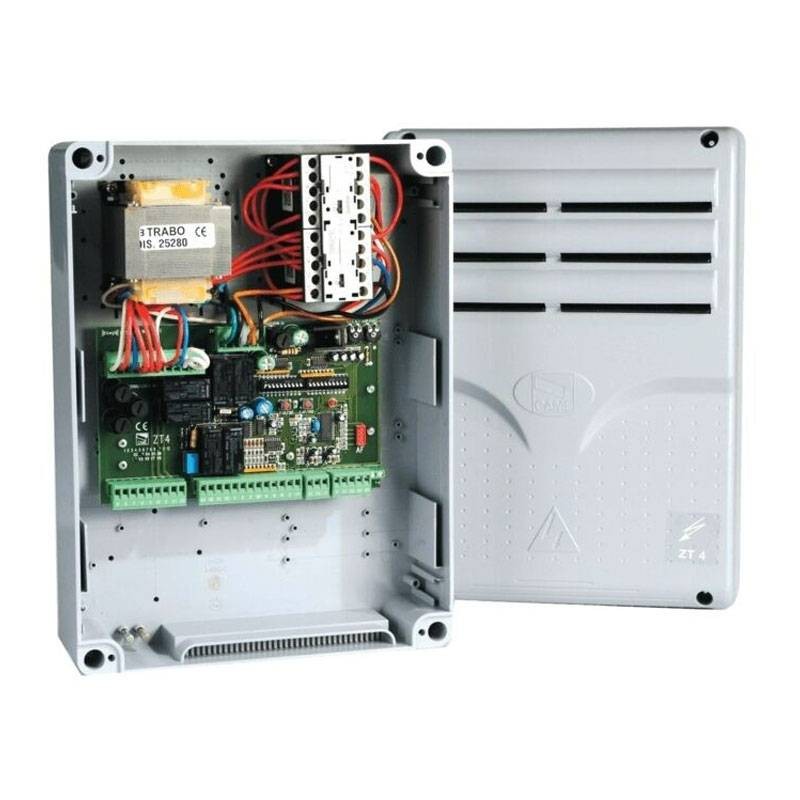

Came 230/380V AC Three-phase control panel for gates with self-diagnosis 002ZT6
CMC 002ZT6
8050456028068
Control panel for gates with Came three-phase self-diagnosis with the following features:
- Power supply: 230 V/400 V - 60 Hz
- Max allowable power: 780 W
- Absorption at rest: 50 mA
- Max power for accessories at 24 V 45 W
- Max power for accessories at 230 V 85 W
- Enclosure material: ABS
- Enclosure degree of protection: IP54
- Operating temperature: - 20/+ 55 degrees
The ZT6 control panel is designed by Came to control 001BK-2200T sliding gate automation and 001C-BXT sectional, sliding and folding sliding door automations.
Came 230/380V AC Three-phase control panel for gates with self-diagnosis 002ZT6
€344.94
Tax included
€344.94
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
The board manages and controls the following functions:
- automatic closing
- partial opening for pedestrian passage
- obstacle detection when the gate is stopped at any point
- maintained action
- pre flashing of the flasher
- safety test function
The command modes that can be defined are:
- opening/closing
- open/close with maintained action
- open/close/stop
- partial opening
- total stop
Photocells, after detecting an obstacle, can cause:
- reopening if the gate is closing
- the reclosing if the gate is opening
- the partial stop
- the total stop
Appropriate trimmers adjust:
- the intervention time of the automatic closing
- the partial opening time
It is also possible to connect:
- a courtesy lamp for illuminating the maneuvering area for a fixed time
- a lamp for lighting the maneuvering area during the opening/closing cycle
There are no reviews
Data sheet
- Type: Central command
