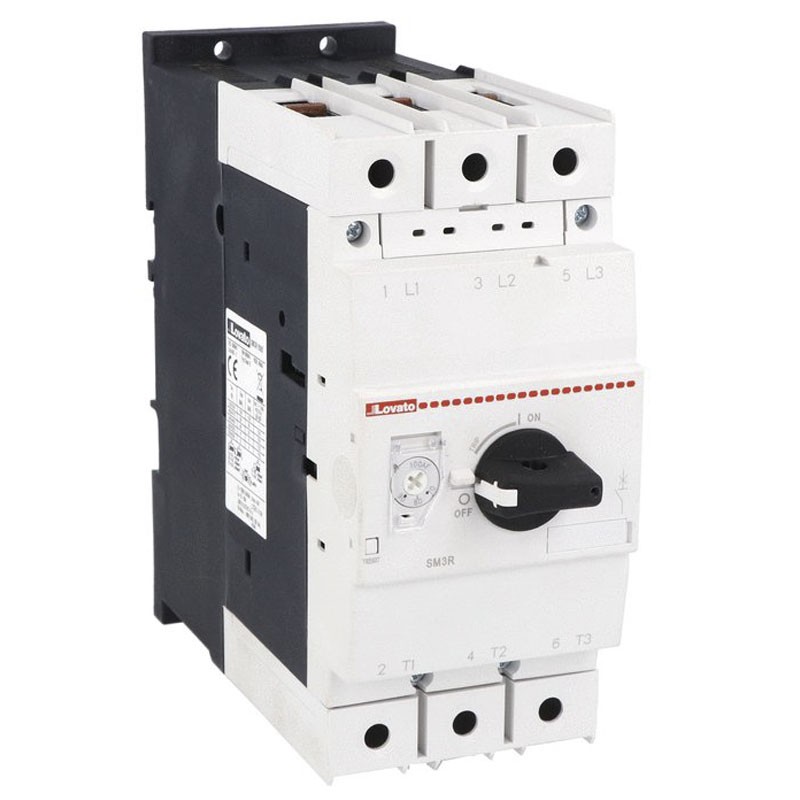

Lovato SM3P 70/90A 50Ka Circuit Breaker SM3R9000
LOV SM3R9000
8013975219867
Lovato motor protection switch type SM3R, with the following characteristics:
- Number of poles 3
- With magnetic and thermal protection
- With phase failure sensitivity
- IEC/EN rated insulation voltage: 1000V
- Rated impulse withstand voltage (Uimp): kV 6
- Rated frequency: 50/60 Hz
- Adjustment range thermal trip _ 70...90
- Rated current 90 amps
- Magnetic trip: 13 x In
- Trip class: 10A
- Utilization category: A
- Mechanical life span: 50000 cycles
- Electrical endurance: 25000 cycles
Lovato SM3P 70/90A 50Ka Circuit Breaker SM3R9000
€213.65
Tax included
€213.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Other technical features:
- Max number of conductors that can be installed simultaneously: 2
- Screwdriver tool: Allen 4mm
- Power terminal protection according to IEC/EN 60529: IP20
- Cable stripping length Main circuit mm 1
- Operating temperature: -20/+70°C
- Storage temperature: -50/+80°C
- Compensation temperature: -50/+40°C
- Maximum altitude: m 3000
- Mounting position: Normal Vertical plane - Allowed Any
- Mounting: Screw-on / 35mm DIN rail
- Weight 2.2 kg
