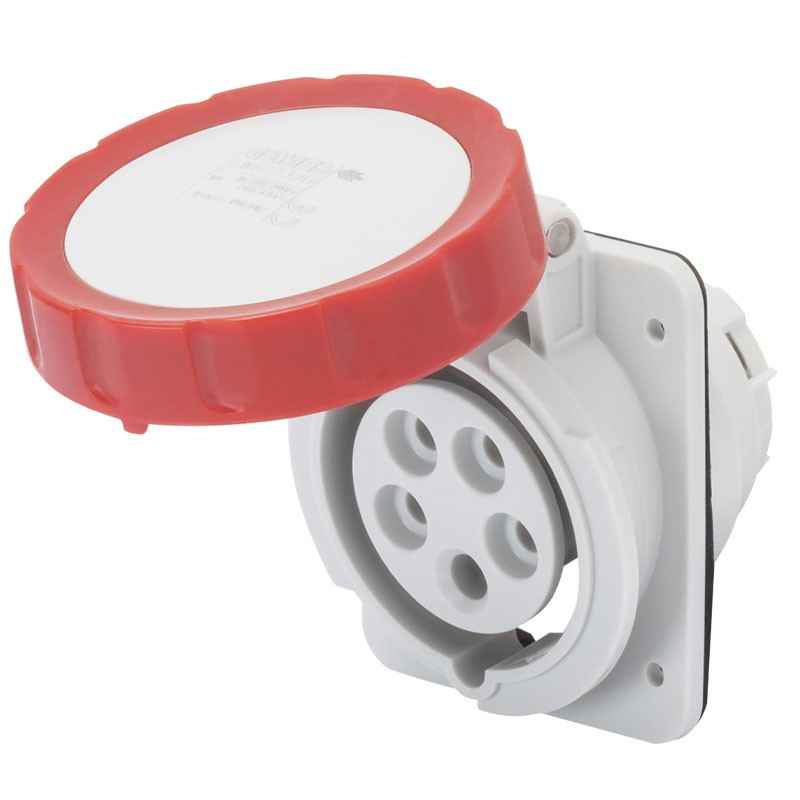

Gewiss fixed flush-mounted socket 3P+N+E 16A IP67 red 380V GW62232H
GEW GW62232H
8011564799370
Gewiss 10° HP recessed fixed socket, with the following characteristics:
- Rated voltage 380 - 415V
- Number of poles 3P+N+E
- Nominal current 16A
- Degree of protection IP67
- Color red
Gewiss fixed flush-mounted socket 3P+N+E 16A IP67 red 380V GW62232H
€12.57
Tax included
€12.57
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 154
: 59
Pay in installments with Klarna
Features:
- Gewiss Series
- Shock resistance: IK09
- Reference h:6

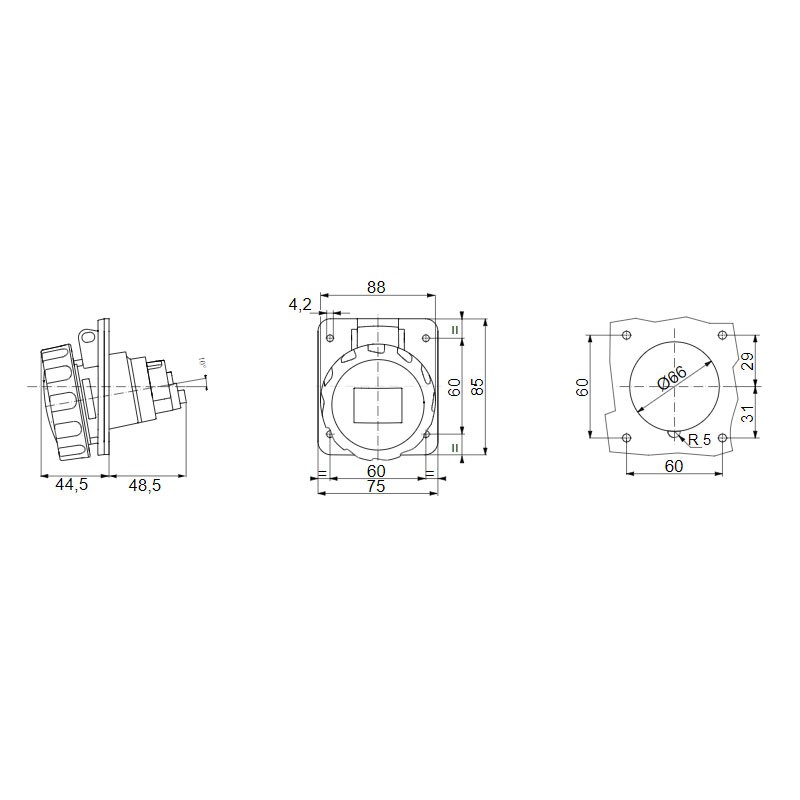

- Flange dimensions (mm) 85x75
- Frequency 50/60 Hz
- Terminal clamping capacity: 1-2,5 mm² flexible cables - 1,5-4 mm² rigid cables
- Operating temperature -25 +55 °C
- Wiring type: screw
- Type Material: Halogen free according to EN 60754-2
- Electrocod code: 2210
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- N. Total operations: > 5000
- Admissible overload: 22A
- Breaking capacity at 1.1 Un: 20A
- Insulation resistance: > 10 MΩ
- Thermopressure with ball: 125 °C (Active parts) - 80 °C (Passive parts)
- Ware number 85366990
There are no reviews
Data sheet
- Type: Sockets CEE
- Voltage: 380/415VAC
- Poles: 3P+N+T
- Degree of protection: IP67
- Installation: Recessed
- Amps: 16A
