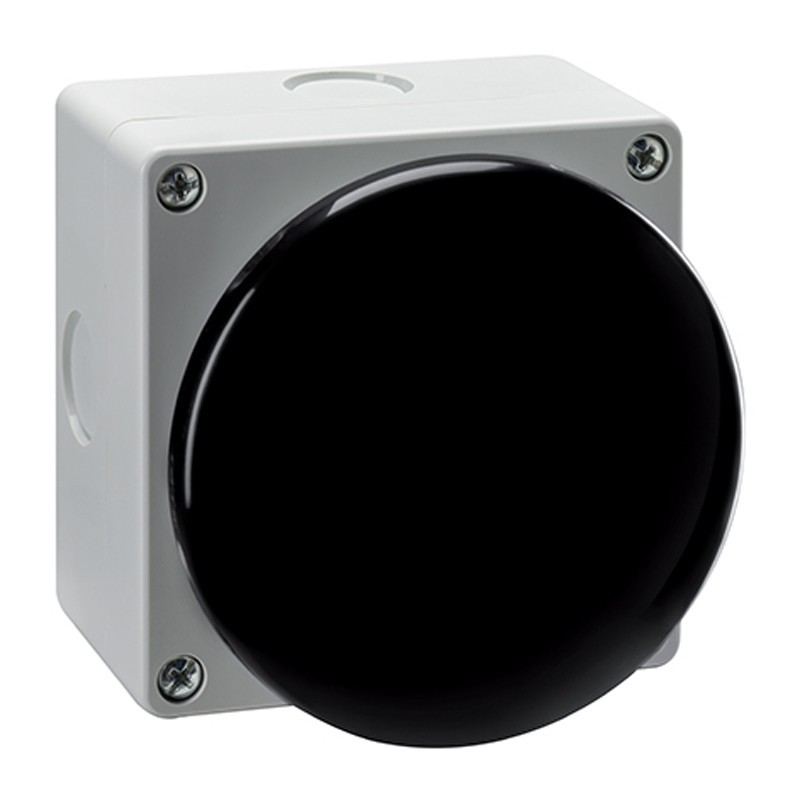

Palm Lovato Black Oscillating Palm Button without hook NC LP9S11B
LOV LP9S11B
8013975266250
Palm Lovato button with Black Oscillating Mushroom without hook NA NC, diameter 90 mm, designed for Machine Stop and Immediate Control applications, also service.
Palm Lovato Black Oscillating Palm Button without hook NC LP9S11B
€25.91
Tax included
€25.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 5
Pay in installments with Klarna
Typical applications are:
- Escalators
- gate opening command
- Pedestrian calls for the disabled.
The ergonomic design makes them suitable for easy operation with the hand, elbow, foot ensuring immediate intervention on machinery or plants even if the operator has his hands busy.
Features:
- cable entry (breakthrough holes): M20/PG13.5 (1 on each side) - M16/PG11 (2 on the bottom)
- any mounting position is permitted
- Tmax cover screws tightening torque: 0.8Nm
- environmental conditions: operating temperature: -25... 75°C
- storage temperature: -40... 85°C
- Degree of protection according to IEC/EN: IP65. CONTACT ELEMENTS
- rated insulation voltage: 690V
- thermal current Ith: 10A
- conductivity: 5V 10mA
- Contact screws tightening torque: 0.5...0.8Nm
- permitted cable cross section: 1 or 2 conductors - 0.5...2.5 mm
- designation according to IEC/EN60947-5-1: A600 Q300.
