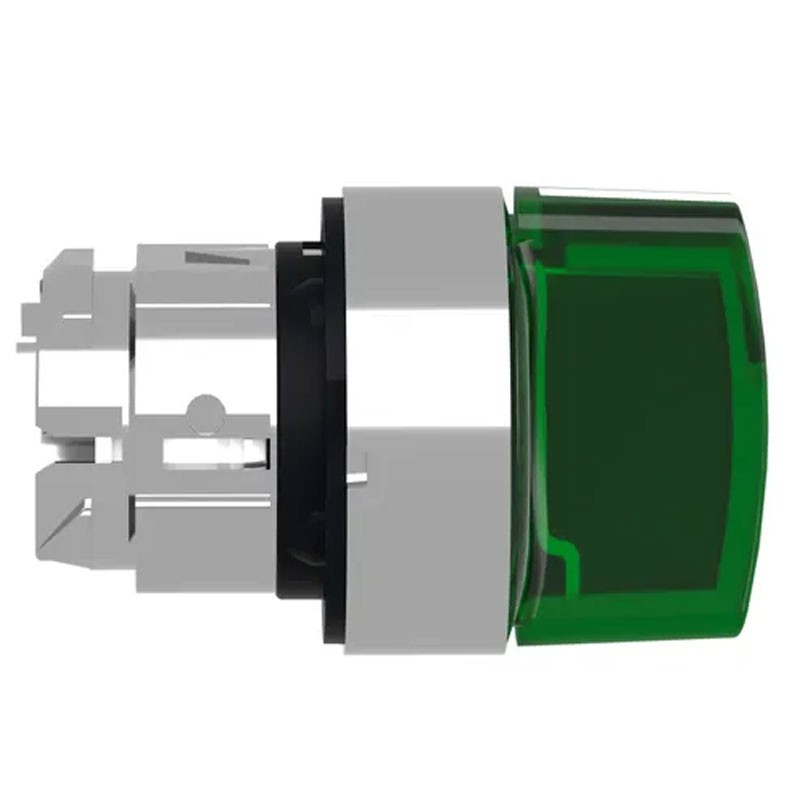

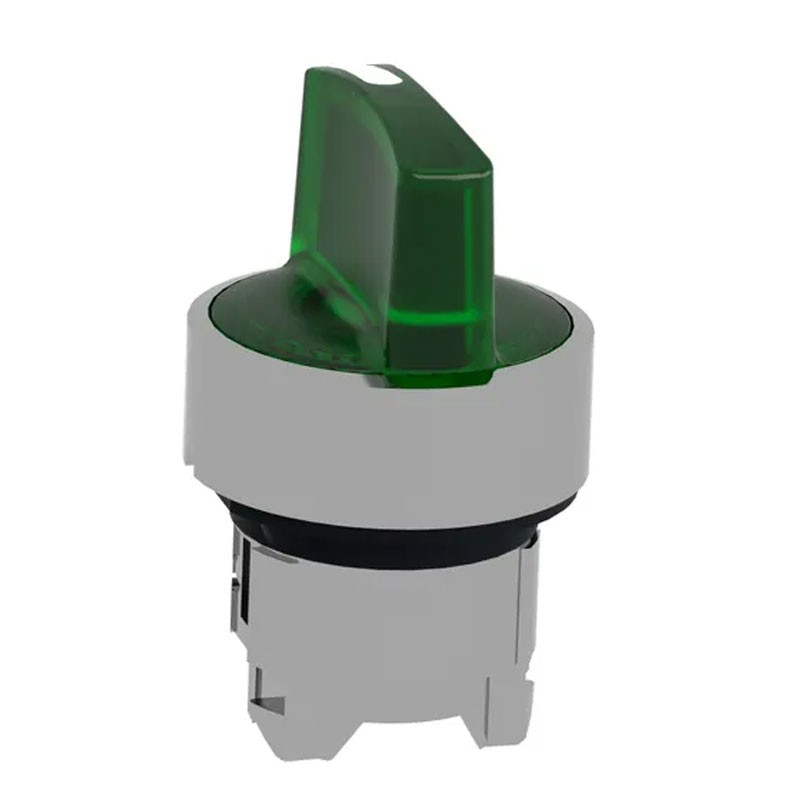

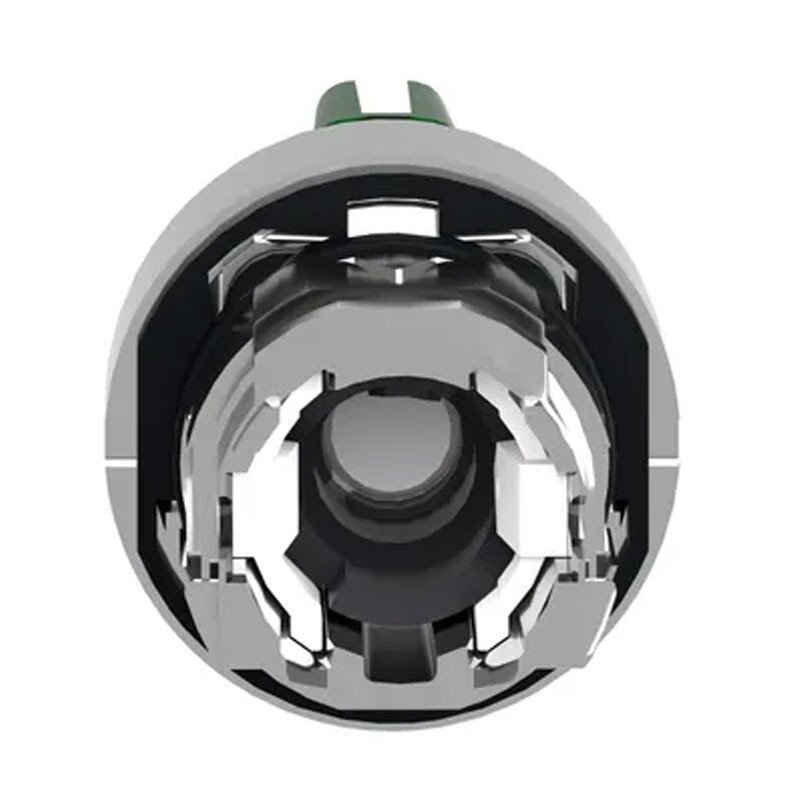

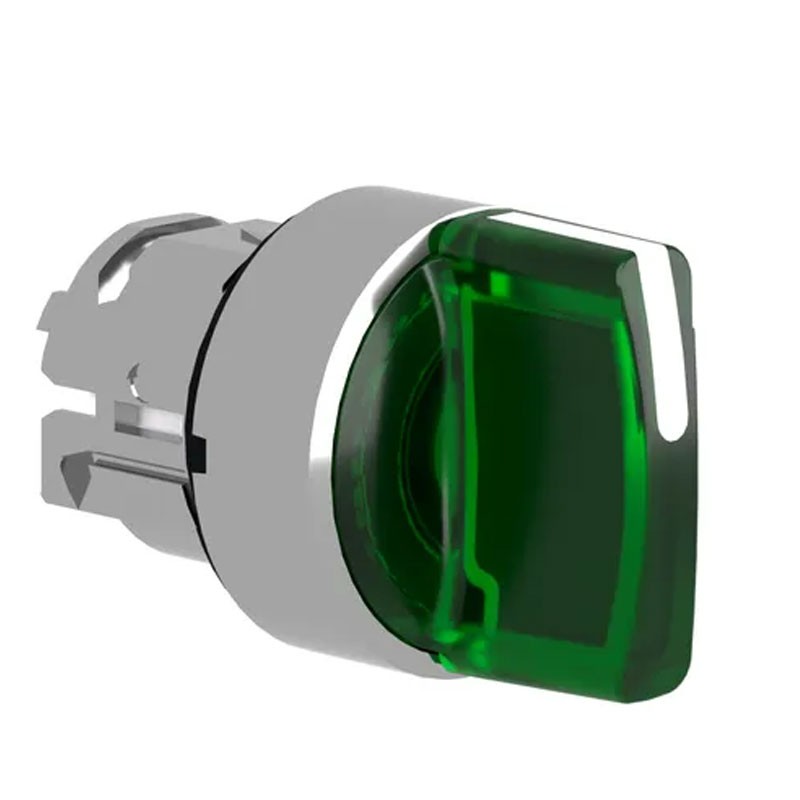

Telemecanique head for LED light selector Green ZB4BK1533
SNR ZB4BK1533
3389110890884
Schneider 3-position light selector head , with the following features:
- Head material: chrome-plated metal
- Head type Standard
- Mounting diameter 22 mm
- Head shape: Circular
- Operator Type: Fixed
- Operator profile: green standard lever
- Operator position information: 3 positions +/- 45°
- CAD total width 29 mm
- Total CAD height 29 mm
- Total CAD depth 43 mm
- Weight 0.036 kg
Telemecanique head for LED light selector Green ZB4BK1533
€18.14
Tax included
€18.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 2
Pay in installments with Klarna
Frequently bought together
Schneider Electric's Harmony XB4 green light selector head for universal LED with standard lever has 3 positions and operates with spring return to the center. It has a round shape and a chrome-plated metal ferrule.
This light switch head for integrated LED provides an ergonomic interface for machine control. It comes with standard lever and can be easily installed on compatible selector units. It provides instant help to set machines in various operating modes even in the darkest control rooms, and provides clear visual feedback. With its IP69K rating, it is resistant to shock, vibration, dust and water, and is ideal for use in harsh environments.
Advantages:
- Metal bezel
- Simple modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- High performance : International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X)
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Environmentally friendly product performance
Electrical composition code:
- M3 for <4 single contacts in Direct front mounting on pushbutton with LEDs
- M6 for <2 contacts single in Direct front mounting on button with integrated LED and transformer
- M10 for <2 contacts single in Direct front mounting on button with LED
- M4 for <4 single and double contacts in Direct front mounting on button with LED
Other features:
- High-pressure washdown resistance: 7000000 Pa at 55 °C, distance: 0.1 m
- Mechanical durability: 1000000 cycles
- Protection treatment: TH
- Storage temperature: -40...70 °C
- Ambient temperature: -40...70 °C
- Overvoltage category: Class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529 - IP67 - IP69 - IP69K
- NEMA degree of protection: NEMA 13 - NEMA 4X
- IK degree of protection: IK06 complying with IEC 50102
- Vibration resistance: 5 gn (F= 2...500 Hz) complying with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27, 50 gn (duration = 11 ms) for half-sine wave acceleration complies with IEC 60068-2-27
There are no reviews
Data sheet
- Type: Selectors
