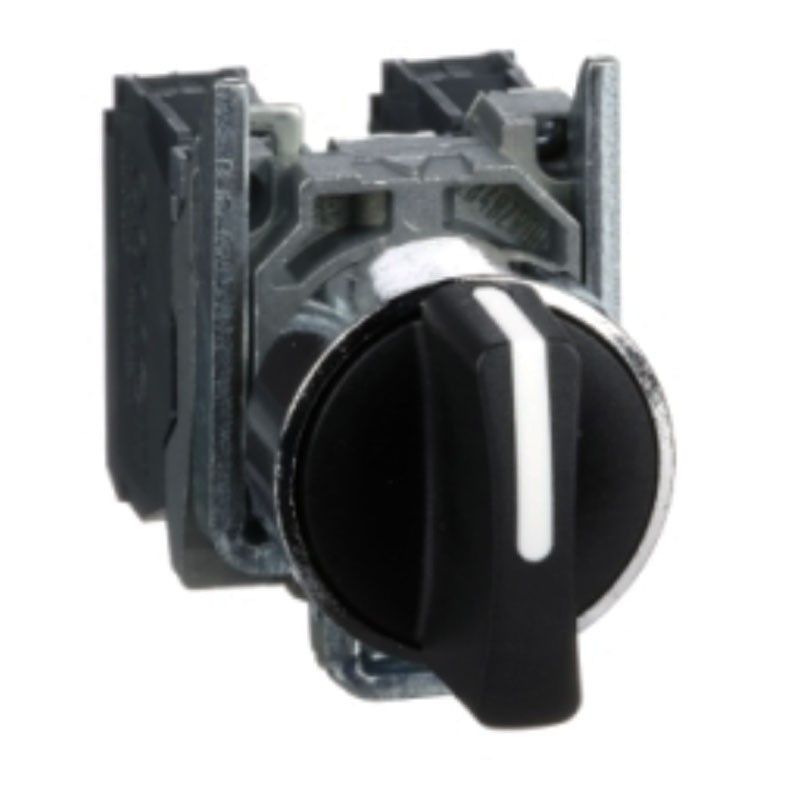

Telemecanique 3 positions lever selector black XB4BD33
SNR XB4BD33
3389110887099
Schneider Telemecanique Lever Selector, with the following characteristics:
- Rated insulation voltage [Ui]: 600 V (pollution degree 3) compliant with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV according to EN 60947-1
- Short-circuit protection: 10 A cartridge fuse type gG in accordance with EN/IEC 60947-5-1
- Conventional thermal current in air [Ith]: 10 A according to EN/IEC 60947-5-1
- Mounting diameter: 22 mm
- Contacts composition and typology: 2 NO
Telemecanique 3 positions lever selector black XB4BD33
€22.34
Tax included
€22.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 61
: 4
Pay in installments with Klarna
Features:
- Schneider Telemecanique Series
- Contact Operation: Slow opening
- Operator position information: 3 +/- 45° positions
- Torque value: 0,14 Nm NO with change of electrical status
- Mechanical life: 1000000 cycles
- Tightening torque: 0.8...1.2 Nm according to EN 60947-1
- Contact material Silver alloy (Ag/Ni)
- Storage temperature: -40...70 °C
- Ambient operating temperature: -40...70 °C
- Overvoltage category: Class I according to IEC 60536
- Degree of protection IP69/IP69K/IP67 per IEC 60529
- NEMA degree of protection:NEMA 13 - NEMA 4X
- Black color
- Dimensions: height 47 mm - width 30 mm - depth 68 mm
- Weight: 0.105 kg
There are no reviews
Data sheet
- Type: Selectors
