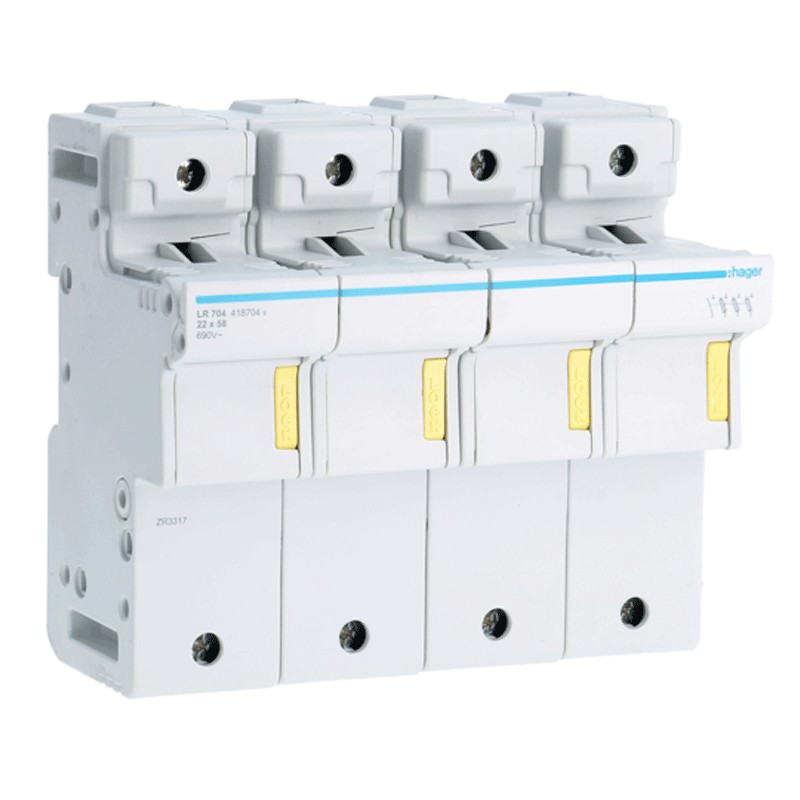

Fuse holder Hager 3P+N 125A 22X58 4 modules LR704
HAG LR704
3250614187049
Hager L58 non-accessory fuse holder, with the following characteristics:
- Type of poles 3P+N
- 4 modules
- Nominal operating voltage AC 690 Vac
- Rated frequency 50 Hz
- Rated current 125A
- Fuse utilization category gG, aM
- Fuse size 22 x 58
- Total power loss 42 W
- Power loss per pole 2.9 W
Fuse holder Hager 3P+N 125A 22X58 4 modules LR704
€75.21
Tax included
€75.21
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 2
Pay in installments with Klarna
Features:
- Hager series
- Pole type 3P+N
- 4 modules
- Nominal operating voltage 690 Vac
- Rated frequency 50 Hz
- Rated current 125A
- Fuse utilization category gG, aM
- Fuse size 22 x 58
- Total power loss 42 W
- Power dissipation per pole 2.9 W
- Electrical life and number of cycles 2000
- Number of operations (mechanical life) 5000
- Depth 96 mm
- Height 125 mm
- Width 140 mm
- Tightening torque 3.6 Nm
- Degree of protection of the housing IP20
- Operating temperature -5...40 °C
- Pollution degree 3
- Storage/transport temperature -25...80 °C
- Calibration temperature 30 °C
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 22x58 fuse sizes
- Voltage: 690VAC
- Modules: 4
- Poles: 3P+N
- Amps: 125A
