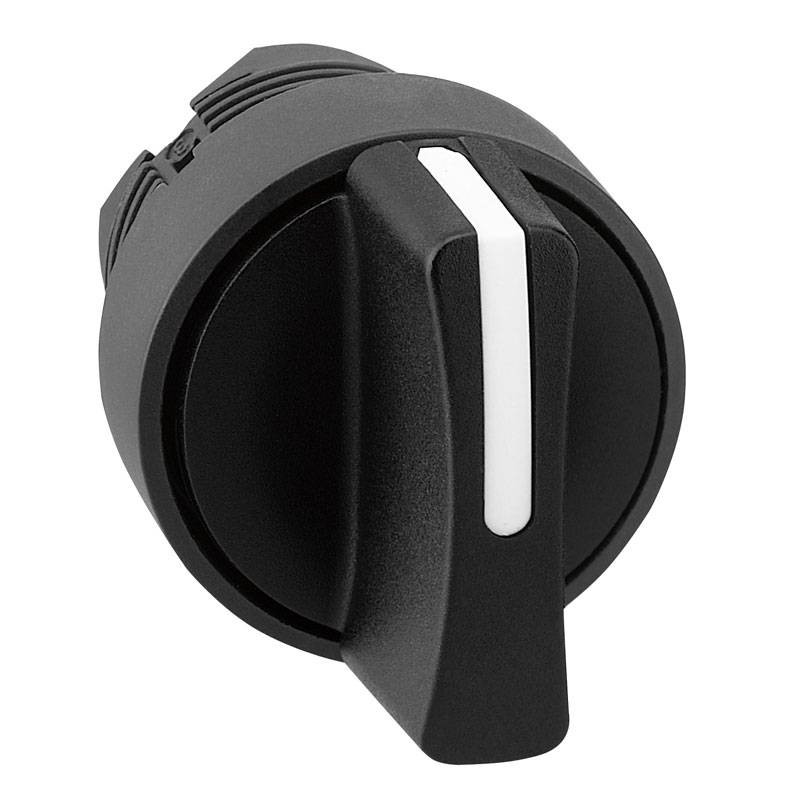

Schneider selector head 3 positions Ø22 black ZB5AD5
SNR ZB5AD5
3389110905199
Schneider 3-position black selector head with the following features:
- Product range: Harmony XALF - Harmony XB5
- Product type or component: Selector switch head
- Device name: ZB5
- Mounting diameter: 22 mm
- Head type: Standard
- Head shape: Circular
- Operator Type: Both toward the center by impulse
- Operator position information: 3 positions +/- 45°
Schneider selector head 3 positions Ø22 black ZB5AD5
€12.09
Tax included
€12.09
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Frequently bought together
Schneider Electric's Harmony XB5 selector switch head is black, has a standard lever and 3 positions, and operates with a spring return mechanism in the center. It is circular and has a plastic ferrule.
This selector switch head with standard lever provides an ergonomic interface for machine control. It can be easily installed on compatible selectors and provides an effective way to set the machine in various operating modes.
With its IP69K rating, it is resistant to shock and vibration, is protected against dust and liquid ingress, and is ideal for use in harsh environments.
Plastic Ferrule. Modular design simplifies post-installation maintenance, modification and adaptation of machines.
Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery.
Wide operating temperature range of -40°C to 70°C ensures versatility of product use.
Ideal for applications requiring good chemical resistance and/or double electrical insulation.
Electrical composition code:
- C3 for <6 single contacts in Direct Front Mount on pushbutton
- C4 for <6 single and double contacts in Direct front mounting on button
- C5 for <5 single contacts in Direct front mounting on button
- C6 for <5 single and double contacts in Direct front mounting on button
- C7 for <4 single contacts in Direct front mounting on button
- C8 for <4 single and double contacts in Direct front mounting on button
- C11 for <3 single contacts in Direct front mounting on button
- SF1 for <3 single contacts in Direct front mounting on button
- SR1 for <3 single contacts in Rear mounting on bottom of push button panel
Features:
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- Class II in accordance with IEC 60536
- IP degree of protection: IP67 IP69 - IP69K
- IK degree of protection: IK06
- Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Vibration resistance: 5 gn (F= 2500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration complying with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half-sine wave acceleration complying with IEC 60068-2-27
There are no reviews
Data sheet
- Type: Selectors
