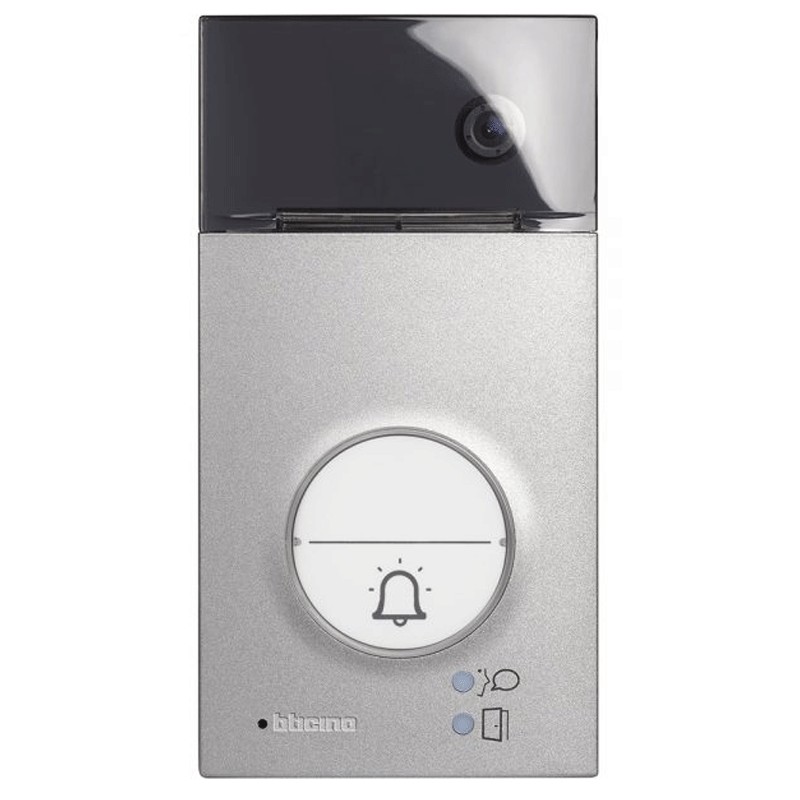

Bticino video door station 2-wire wall-mounted one- or two-family, with zinc-plated front panel, wide-angle colour camera and proximity reader.


Request info about this product

Bticino Video Door Station 2-wire Wall-mounted One- or Two-family 343091

€291.76 Tax included
€291.76

Bticino Video Door Station 2-wire Wall-mounted One- or Two-family 343091

€291.76
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 6
logo priority: 1
Altre disponibilità dal produttore
qty

Bticino Video Door Station 2-wire Wall-mounted One- or Two-family 343091

€291.76

Buy it within and receive it from Friday, 19 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Advantages:

  • White LEDs for low-light field illumination
  • Configurable for single-family or two-family installations
  • Allows opening of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max).
  • It manages a maximum number of 20 badges (125 KHz) for opening the electric lock (including the system management badge).
  • Illumination of the name tag with white LEDs
  • Meets IP54 protection rating - IK10 degree of robustness
  • Supplied with 1 door opener kit consisting of: 6 coloured badges and 2 clear discs.



Features:

  • Power supply by BUS SCS: 18 - 27 Vdc
  • Absorption in stand-by (with backlighting LEDs off): 30 mA
  • Absorption in stand-by (with backlighting LEDs on): 40 mA
  • Maximum absorption in operation: 265 mA
  • Color sensor: 1/3" Lens: f 2.35 mm f 2.2 Camera angle ~ 110° diagonally
  • Resolution: 330 TV lines (horizontal)
  • Field illumination: white LEDs
  • Brightness adjustment: Automatic Interlacing: 2:1
  • Badge working frequency 125 Khz
  • Operating temperature: (-25) - (+70) °C
  • Degree of protection: IP 54 Degree of robustness: IK 10
  • Power supply from SCS BUS: 18 - 27 Vdc
  • Absorption in stand-by (with backlighting LEDs off): 30 mA
  • Absorption in stand-by (with backlighting LEDs on): 40 mA
  • Maximum absorption in operation: 265 mA
  • Color sensor: 1/3"
  • Lens: f 2.35 mm f 2.2
  • Shooting angle: ~ 110° diagonally
  • Resolution: 330 TV lines (horizontal)
  • Field illumination: White LEDs
  • Brightness Adjustment: Automatic
  • Interlacing: 2:1
  • Working frequency of badges 125 Khz
  • Working temperature: (-25) - (+70) °C
