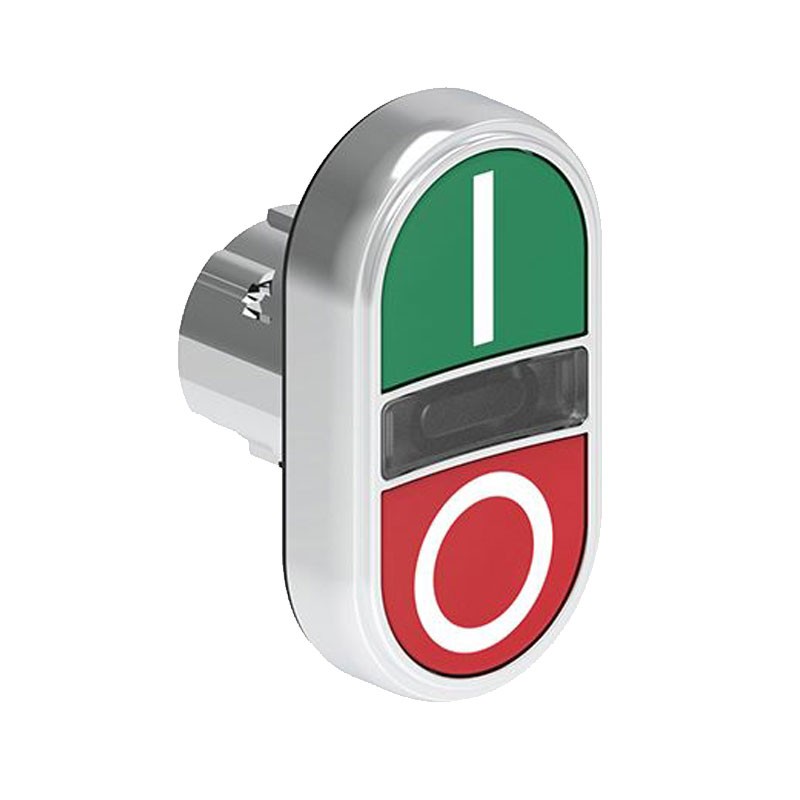

Lovato Double-touch Actuator Spring return I-0 Green/Red LPSBL7123
LOV LPSBL7123
8013975294635
Lovato Platinum ouble-touch Actuator Spring return Green/Red I-0 (without fixing base to add separately LPXAU120M), both impulse, diameter 22 mm.
Accessory contacts LPXC10 / LPXC01.
Lovato Double-touch Actuator Spring return I-0 Green/Red LPSBL7123
€19.68
Tax included
€19.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 28
Pay in installments with Klarna
Frequently bought together
Features:
- Button body made of zamak
- Plastic parts made of polyamide
- Force per actuation: <0,5kg (operator)
- Mechanical life: double buttons: 1.000.000 cycles - selectors: 1.000.000 cycles
- Degree of protection (IEC) IP66, IP67 and IP69K
- Without fixing base to add LPXAU120M
- Degree of protection (UL) Type1, 2, 3R, 4, 4X, 12, 12K
- Operating temperature min °C -25 - max °C +70
- Storage temperature min °C -40 - max °C +85
- Classification ETIM 8.0 EC000221 - Panel-mounted pushbutton.
There are no reviews
Data sheet
- Type: Buttons
