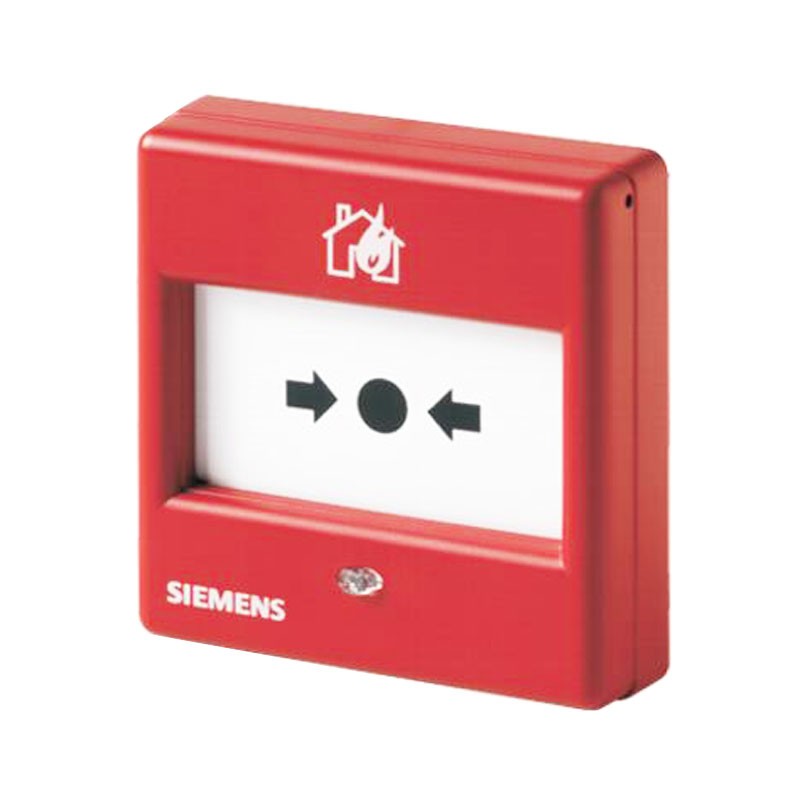

Siemens complete fire alarm button FDM365-RP S54311F111A1
SIE S54311F111A1
4047625015442
Manual call point FDM365-RP with resettable direct activation for wall and flush mounting.
Integrated line separator: the defective section on the detector line is located by the fire alarm control panel and isolated between two C-NET devices.
This device works exclusively in combination with a Cerberus FIT FC360 fire alarm control panel.Reference standards: EN 54-11.
Siemens complete fire alarm button FDM365-RP S54311F111A1
€41.89
Tax included
€41.89
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 37
Pay in installments with Klarna
Features:
- DC 1233 V power supply
- Protection category IP44
- Operating temperature -2570 °C
- Standard EN 54-11 , EN 54-17
- Relative humidity ?95 % rel. (no condensation)
- Dimensions (W x H x D) 87 x 87 x 20 mm
- Current at rest 180 ?A
- Storage temperature -30...+75 °C
- Terminal block 0.281.5 mm2
- Communication protocol C-NET
- Colour Flame red, ~RAL 3000
- System compatibility C-NET -> FC360
- Accessories FDMH295-R Back box , FDMH295-S Back box with 2 entries , FDMC295 Protective cover.
There are no reviews
Data sheet
- Type: Buttons
