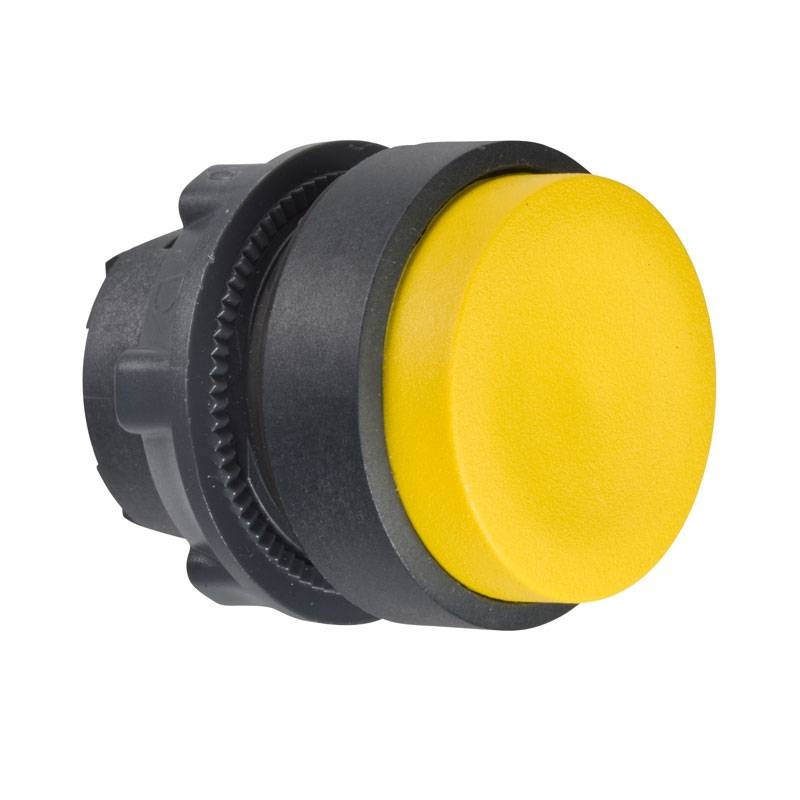

Schneider yellow button without marking diameter 22 ZB5AL5
SNR ZB5AL5
3389110906516
Schneider yellow button without protruding marking with the following features:
- Product range: Harmony XB5
- Product type or component: Non-luminous button head
- Mounting diameter: 22 mm
- Head type: Standard
- Head shape: Circular
- Operator Type: Pulse
- Operator Type: Yellow protruding, unmarked
Schneider yellow button without marking diameter 22 ZB5AL5
€6.53
Tax included
€6.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 3
Frequently bought together
Schneider Electric's Harmony XB5 red protruding button head works with a spring/impulse return mechanism. It is circular and has a plastic ferrule. This button head provides an ergonomic interface for machine control. It easily combines with the Harmony range of buttons and contact elements to perform a wide range of control functions.
Thanks to its vibrant color, it is clearly visually distinguishable from a distance. With its IP66 rating, it is resistant to shock, vibration, water tightness and dust, and is ideal for use in harsh environments.
Other information:
- Plastic ferrule
- Modular design simplifies post-installation maintenance, modification and adaptation of machines
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Ideal for applications requiring good chemical resistance and/or double electrical insulation
Electrical composition code:
- C1 for <9 single contacts in Front mount direct to pushbutton
- C2 for <9 single and double contacts in Direct front mounting on pushbutton
- C11 for <3 single contacts in Direct front mounting on pushbutton
- C15 for <1 single contacts in Direct front mounting on button
- SF1 for <3 single contacts in Direct front mounting on button
- SR1 for <3 single contacts in Back mounting on bottom of push button panel
Features:
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- Class II in accordance with IEC 60536
- IP degree of protection: IP66 - IP67 - IP69 - IP69K
- IK degree of protection: IK03
- High-pressure washing resistance: 7000000 Pa at 55 °C, distance: 0.1 m
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration according to IEC 60068-2-27 - 50 gn (duration = 11 ms) for half-sine wave acceleration according to IEC 60068-2-27
- Vibration resistance: 5 gn (F= 2500 Hz) in accordance with IEC 60068-2-6
