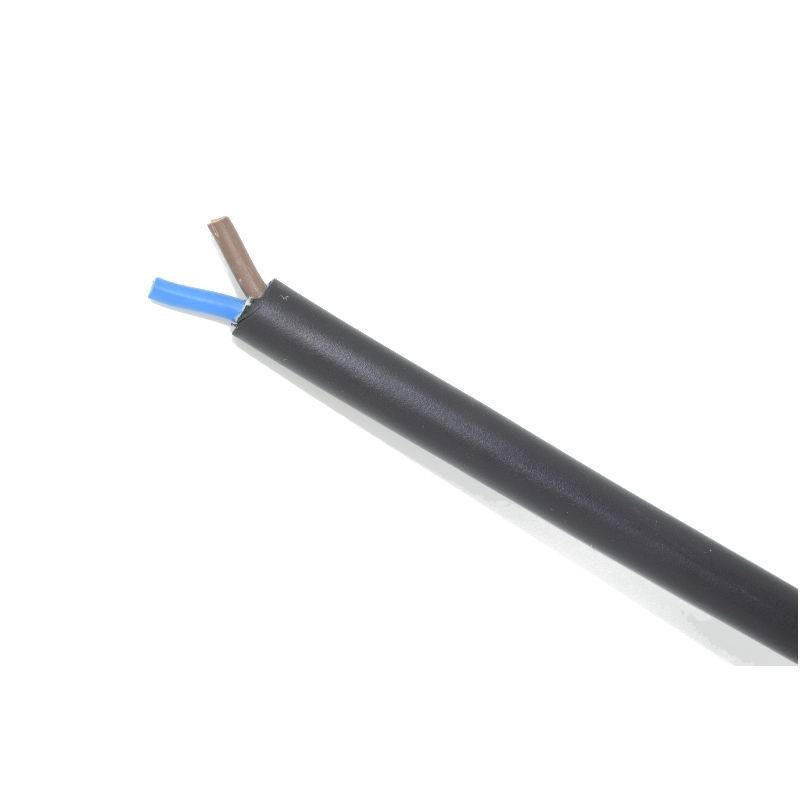

Polychloroprene Sheathed Cable 2X1 mmq H07RNF2X1

Brand: Cavi

Cod: 9X9 H07RNF2X1 EAN:

Flexible cables for heavy mobile service, in even wet rooms, workshops or outdoors.

Can be used for connections of industrial or agricultural equipment such as large kettles, heating plates, portable lamps, power tools, motors and transportable generators.

Mandatory for temporary installations at construction sites in accordance with IEC 64-8 part 7 third edition. Also usable for fixed installations.

Sold by the meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable

Polychloroprene Sheathed Cable 2X1 mmq H07RNF2X1

€0.82 Tax included

€0.82

Polychloroprene Sheathed Cable 2X1 mmq H07RNF2X1

€0.82
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 4642

: 2975

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Characteristics:

Rated voltage: U0/U = 450/750V
Operating temperature: 60° C (85° in fixed and protected installations)
Short circuit temperature: 200° C
Minimum bending radius: 4 x outer diameter in fixed installation 6 x outer diameter in movable installation
Tensile stress in laying: 50N/mm² of copper section max in fixed laying 15N/mm² of copper section max in moving laying
Laying temperature: Minimum
Conductor wire diameter 0.26mm, average insulation thickness 0.80mm, maximum outer diameter 7.1mm
Maximum resistance at 20° C Ohm/km 13.3
Flow rate at 30° C in free air mobile service 16
