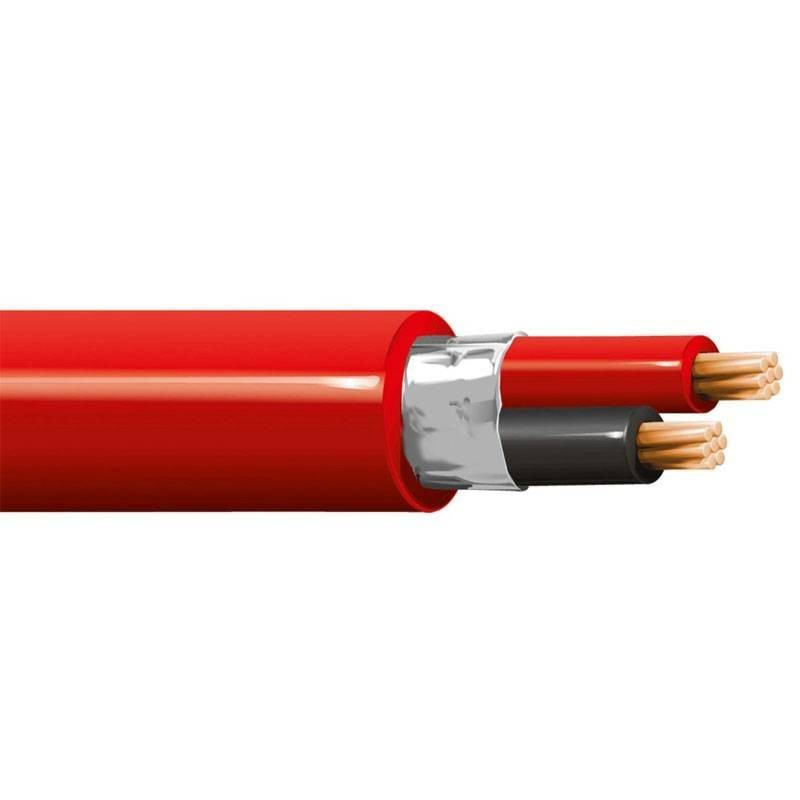

Fire Fighting Cable TW/SCH 2x1 sq. mm red LSZH EN50200 PH120
ITC SF210RZB500
Firefighting cable TW/SCH 2x1 sq mm red EN50200 PH120 with the following characteristics:
- Insulation: G29 low capacitance
- Conductor color: red, black
- Outer sheath color: red
- Outer sheath diameter: 6.6 mm
- Rated voltage: 100/100 V
- Operating temperature range -20/+90 °C
- Test voltage 2.5 KVac
The selling price is per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
Fire Fighting Cable TW/SCH 2x1 sq. mm red LSZH EN50200 PH120
€1.17
Tax included
€1.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1000
: 400
Pay in installments with Klarna
120-minute fire resistant, shielded cables for fire alarm detection and warning systems. Halogen-free, very low smoke and toxic gas emission and non-fire propagating. Suitable for indoor installation in rooms open to the public, wet and outdoor (non-severe) environments and for cohabitation with 450/750V and 0.6/1kV energy cables.
Features:
- Conductor CU 2x1.00 mm²
- Conductor 1 (Resistance) 19 Ohm/Km
- Insulation: G29 low capacitance
- Conductor color Red, Black
- Foil 1 Al/Pet 100 %
- LSZH thermoplastic outer sheathing M16 quality Red
- Outer sheath (Diameter) 6.6 mm
- Mutual or coaxial cable capacitance: MUTUA 120 pF/m
- Characteristic inductance 0.65 mH/Km
- Insulation Resistance (20°C) Min 500 GOhm x Km
- Continuity wire CUSn 16 x 0.20 mm
- Rated voltage 100/100 V
- Operating temperature range -20 / +90 °C
- Sheath insulation C-4 (U0=400V)
- Test voltage 2.5 KVac
- Minimum bending radius 12 x O.D
Ideal for addressed systems, Permitted for outdoor or underground installation in conduit.
CPR Fire rating according to EN 50575: Ccas1b,d1,a1.
There are no reviews
Data sheet
- Section: 1mmq
- Number of cables: 2
