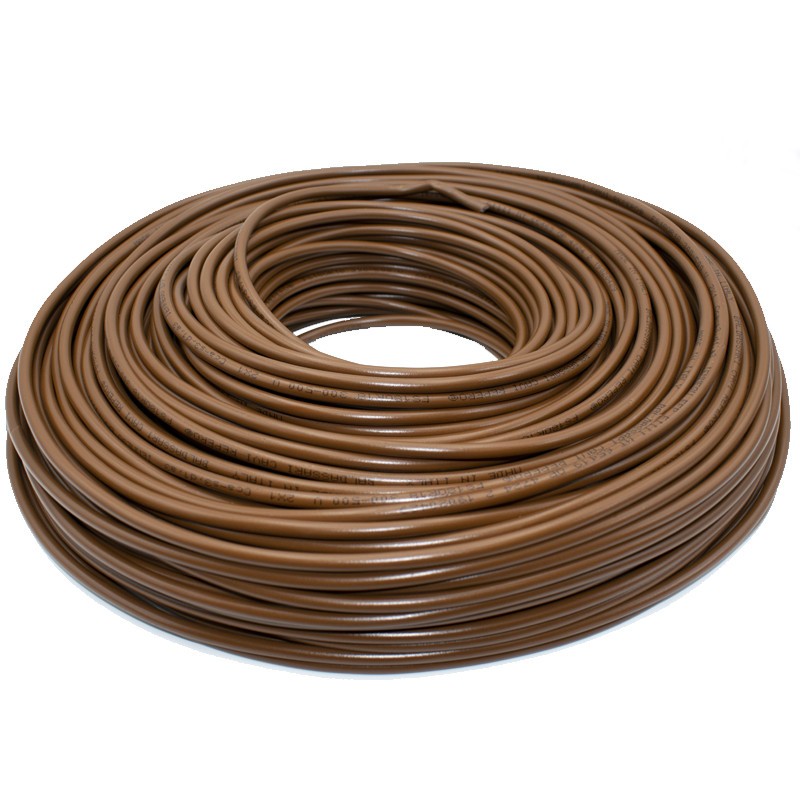

Cable CPR FS18OR18 2 X 1 mmq 300/500V
9X9 FS18R2X1
Cable CPR FS18OR18 2 X 1 mmq 300/500V (replaces the old Fror) Cable for power, signal and control, isolated quality PVC S18 PVC sheathed quality R18, with the particular characteristics of reaction to fire and that meet the Regulation, the Construction Products (CPR EU) no. 305/11. Features see below. Suitable for fixed installation or for temporary installation in hazardous areas with dincendio. For use inside the local dry or wet.(CEI 20-40).
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Cable CPR FS18OR18 2 X 1 mmq 300/500V
€0.53
Tax included
€0.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 116706
: 4794
Features: Wire Rope flexible red copper annealed, class 5 - Insulation Mixes of quality PVC S18 - Outer Sheath Compound of PVC and quality R18 - Color Souls Energy (from 2 to 5 conductors): coloured cores according to CEI UNEL 00722 or numbered, black in colour with or without protective conductor signal and control (>5 souls): black in colour with a progressive number according to CEI UNEL 00722 with or without protective conductor - sheath Colour Black - Rated Voltage Uo/U: 300/500 V - maximum operating Temperature: 70°C - minimum operating Temperature: -15°C (without mechanical stress) - the minimum Temperature of laying: 0°C - maximum Temperature of short circuit: 160°C - maximum drawbar pull: 50 N/mm2 - minimum bending Radius: 4 times the maximum outside diameter - Application Suitable for fixed installation or for temporary installation in hazardous areas with dincendio. For use inside the local dry or wet. (ref. CEI 20-40). The cables FS18OR18 belong to the line AFIAM and are marked Cca-s3,d1,a3, to indicate that they are responding to the Regulation, the Construction Products (CPR) in accordance with the requirements prescribed in the Standard EN 50575:2014+A1:by 2016, and to indicate that they are of the type fire retardant in accordance with the requirements of self-prescribed in the Standard CEI EN 50399 in which the tests are measured is also the issue of heat, production of smoke and possible dripping during the test of the development of the flame. The cables FS18OR18 are also flame retardant on a single vertical cable as a test EN and IEC 60332-1-2 (CEI 20-35). In addition, to prevent further risks arising from the substances emitted during the combustion of the plastics, the cables FS18OR18 are built with special compounds to reduced emission of halogens, the amount of hydrochloric acid, contained in the fumes emitted in case of combustion, lower than 18%. The cables FS18OR18 belong to the ecological line named ECOGAMMA is marked by the symbol of the Windmill. In these cables, the ecological, has been phased out lead, a heavy metal dangerous for the environment and for human beings if present in excessive amounts.
Cavo come previsto nella norma , buona fattura
come da descrizione .........................
Data sheet
- Section:
- 1mmq
- With yellow/green:
- No
- Number of cables:
- 2
