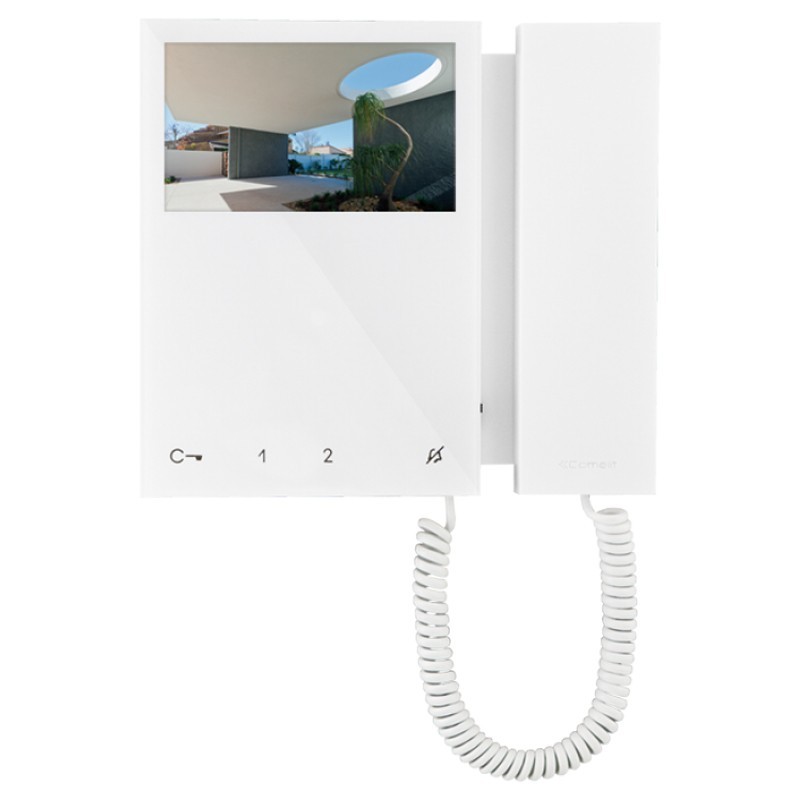

Comelit Mini Colour Monitor for Video Door Phone 4.3 6701W
COE 6701W
8023903282337
Monitor Videophone Comelit MINI wall-mounted with 4.3" / 16:9 colour screen and handset. Allows adjustment of brightness and color and volume ringer that is customizable by choosing between different melodies.
Comelit Mini Colour Monitor for Video Door Phone 4.3 6701W
€178.69
Tax included
€178.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 69
Pay in installments with Klarna
Frequently bought together
Advantages:
- Standard equipped with 4 soft touch buttons for managing the door opener, the auto switch-on, the switchboard call and the privacy function and LEDs for signalling the status of the door
- Standard management of out-of-door call
- Possibility of adding 4 additional buttons with accessory art. 6733W
- Complete with 2 dip-switches with 8 positions for user code and button programming
- Including fixing bracket for wall or civil series box and upright shunt terminal art. 1214/2C
- The monitor can be used only on 2-wire Simplebus2 systems.
Characteristics:
- Dimensions: Product height (mm) 160 Product width (mm) 175 Product depth (mm) 22
- Product weight (g) 600
- Product colour White RAL9003
- Material ABS
- Wall Mount Yes
- Desktop Mounting Yes, with dedicated accessory
- Size (inch) (") 4.3
- Aspect Ratio 16:9
- Resolution (pixels) 480x272
- Microphone 6mm (ø), Omni-directional
- Speaker 40 (ø) x 5.1 (H)mm, 100 ohm, 0.25W
- Power supply type Power supply from video door phone bus
- Power supply voltage 22÷34 VDC (Bus)
- Maximum absorption (W) 5.4
- Button type Capacitive
- Service buttons Door opener, Silent (Privacy), Door open
- No. of programmable buttons for additional functions 2 (6 with accessory art. 6733W)
- Terminals L CFP1 CFP2
- Removable terminals Yes
- Ringer volume Yes
- Yes Screen brightness
- Yes Screen colour
- IP protection degree IP30
- Operating temperature (°C) 5 ÷ 40
- Operating humidity (RH max - %) (%) 25 to 75
- Environmental class I
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
Compatible systems
- Audio/video Simplebus 2 with power supply unit art. 4888C
- Audio/video Simplebus 2 with power supply unit art. 1210/1210A
- Audio/video Simplebus 2 kit with power supply unit art. 1209
Main functions
- Door opener Yes
- Auto switch-on Yes
- Intercom calls Yes
- Actuator control Yes
- Call to switchboard Yes
- Off-door call input Yes
- Silent mode (Privacy) Yes
- Door open on call (Doctor) Yes
- Door open signalling Yes
- Multiple address Yes
- Customisable Ringtone Yes
- Alarm Call Sending Yes
Montato da due giorni, facile installazione e buona qualità audio video.
Perfetto e tutto funzionante, articolato idoneo alla descrizione
Tutto perfetto. Prodotto arrivato come da descrizione.
Data sheet
- Type: Video Intercoms
- System: 2-Wire
