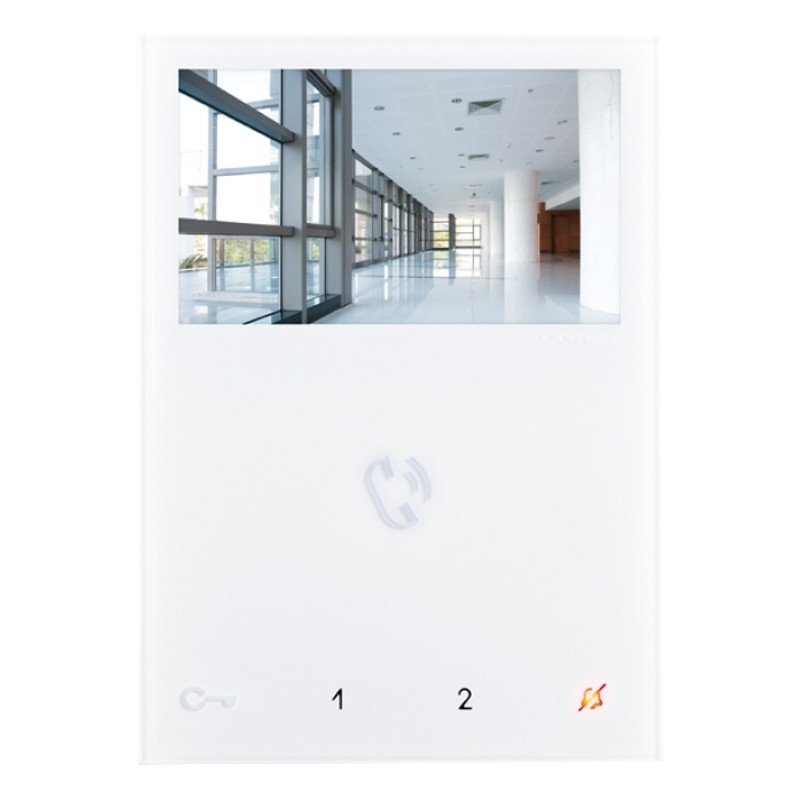

Comelit Monitor Mini Colour Handsfree for Video Door Phone 4.3 6721W
COE 6721W
8023903282375
Hands-free wall monitor with full-duplex audio and 4.3" / 16:9 colour screen. Allows adjustment of the brightness and ringer volume, which can be customised by choosing from various melodies.
Comelit Monitor Mini Colour Handsfree for Video Door Phone 4.3 6721W
€199.61
Tax included
€199.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 51
: 11
Frequently bought together
Advantages:
- Standard equipped with 5 sensitive touch buttons with LED backlighting for phonic socket, door opener, auto switch-on, switchboard call and privacy function and LED for signalling door status.
- Door call management as standard
- Possibility of adding 3 additional buttons with accessory art. 6734W
- Complete with 2 dip-switches with 8 positions for user code and button programming
- Including wall or civil series box fixing bracket and upright shunt terminal art. 1214/2C
- The monitor can only be used on Simplebus2 systems.
Characteristics:
- Dimensions: Product height (mm) 160 Product width (mm) 115 Product depth (mm) 22
- Product weight (g) 500
- Product colour White RAL9003
- Material ABS
- Wall Mount Yes
- Desktop Mounting Yes, with dedicated accessory
- Size (inch) (") 4.3
- Aspect Ratio 16:9
- Resolution (pixels) 480x272
- Microphone 6mm (Ø), Omni-directional
- Speaker 36mm (Ø), 40 Ohm, 1W
- Power supply type Power supply from video door phone bus
- Power supply voltage 22÷34 VDC (Bus)
- Absorption in stand-by (W) 0.05
- Maximum absorption (W) 8.8
- Button type Capacitive
- Service buttons Door open, Answer, Silent (Privacy), Door open
- No. of programmable buttons for additional functions 2 (5 with accessory art. 6734W)
- Terminals L CFP1 CFP2
- Removable terminals Yes
- Speaker volume Yes
- Microphone volume Yes
- Yes Ringer volume
- Screen Brightness Yes
- Screen Contrast Yes
- Screen Color Yes
- IP protection degree IP30
- Operating temperature (°C) 5 ÷ 40
- Operating humidity (RH max - %) (%) 25 ÷ 75
- Environmental class I
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
Compatible systems:
- Audio/video Simplebus 2 with power supply unit art. 4888C
- Audio/video Simplebus 2 with power supply unit art. 1210/1210A
- Audio/video Simplebus 2 kit with power supply unit art. 1209
Main functions:
- Door opener Yes
- Auto switch-on Yes
- Intercom calls Yes
- Actuator control Yes
- Call to switchboard Yes
- Door call input Yes
- Silent mode (Privacy) Yes
- Door open on call (Doctor) Yes
- Automatic answer (hands-free) Yes
- Door open indication Yes
- Multiple Address Yes
- Customisable Ringtone Yes
- Alarm Call Sending Yes
Data sheet
- Type:
- Video Intercoms
- System:
- 2-Wire
