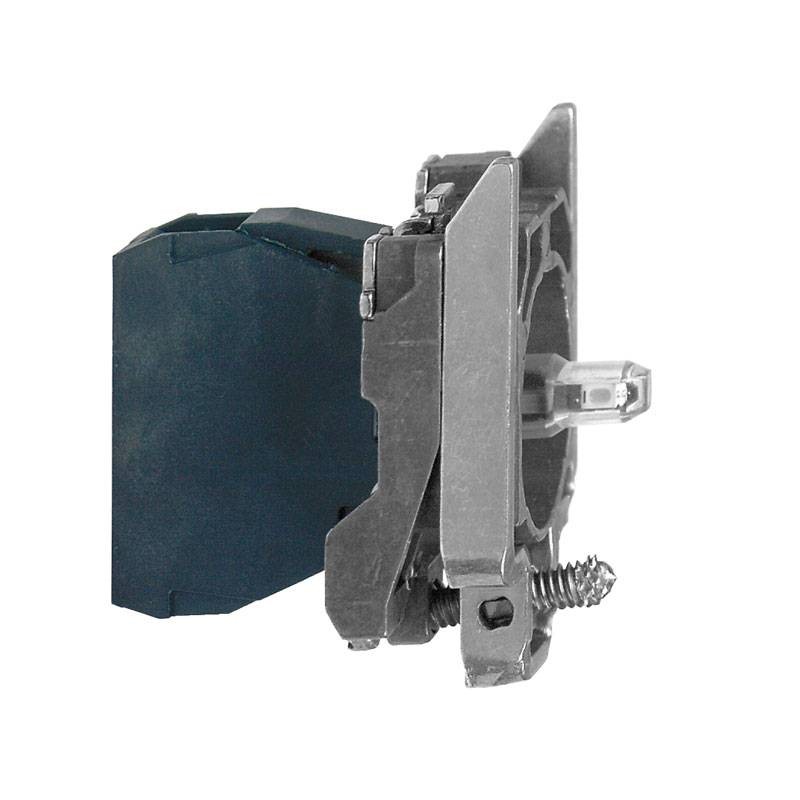

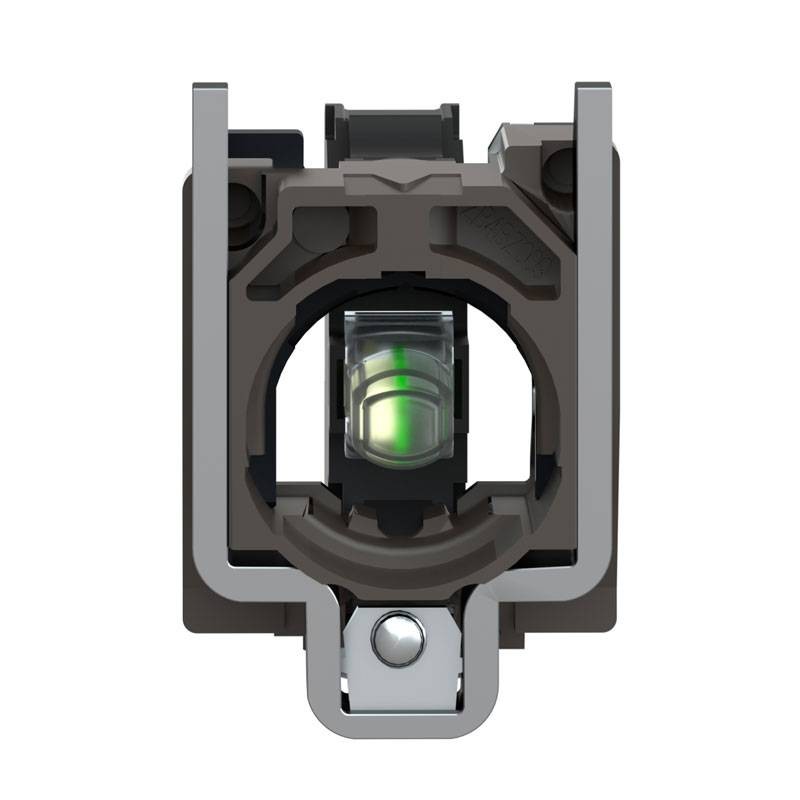

Body for Schneider spy lamp LED integrated red 48/120V ZB4BVG4
SNR ZB4BVG4
3389110892451
Body for Schneider spy lamp LED integrated red with the following features:
- Light source: integrated LED
- Lamp socket: LED
- Light source color: Red
- Rated supply voltage: 110...120 V AC at 50/60 Hz
- Rated insulation voltage: 600 V (pollution degree 3) in accordance with EN 60947-1
- Rated impulse withstand voltage: 6 kV complying with EN 60947-1
- Power consumption: 14 mA
Body for Schneider spy lamp LED integrated red 48/120V ZB4BVG4
€10.19
Tax included
€10.19
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together
Schneider Electric's Harmony XB4 light element with red fixing body/base and operates with an integrated LED.
It is powered by 24 VAC/DC and uses screw terminals. It has a metal body and is compatible with Harmony XB4 indicator lamps.
This light element allows for quick and easy replacement and configuration of warning units. It can be easily installed and replaced on compatible selector units or light buttons by snap-on mounting and connected with simple screw connections.
Allows signaling units to be visually distinguished through integrated LED illumination.
Protects operators from accidental contact with live circuits through its IP20 rating.
Features:
- Terminal connections: Screw clamps, <= 2 x 1.5 mm² with cable end - Screw clamps, > = 1 x 0.22 mm² without cable end
- Tightening torque: 0.81.2 Nm in accordance with EN 60947-1
- Overvoltage resistance: 1 kV complying with IEC 61000-4-5
- Storage temperature: -40/+70 °C
- Ambient operating temperature: -40/+70 °C
- Class I in accordance with IEC 60536
- Vibration resistance: 5 gn (F= 2500 Hz) complying with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine wave acceleration conforming to IEC 60068-2-27 - 50 gn (duration = 11 ms) for half-sine wave acceleration conforming to IEC 60068-2-27
- Fast transient resistance: 2 kV in accordance with IEC 61000-4-4
- Resistance to electromagnetic fields: 10 V/m in accordance with IEC 61000-4-3
- Resistance to electrostatic discharge: 6 kV on contact (on metal parts) complies with IEC 61000-2-6 - 8 kV in free air (in insulating parts) complies with IEC 61000-2-6

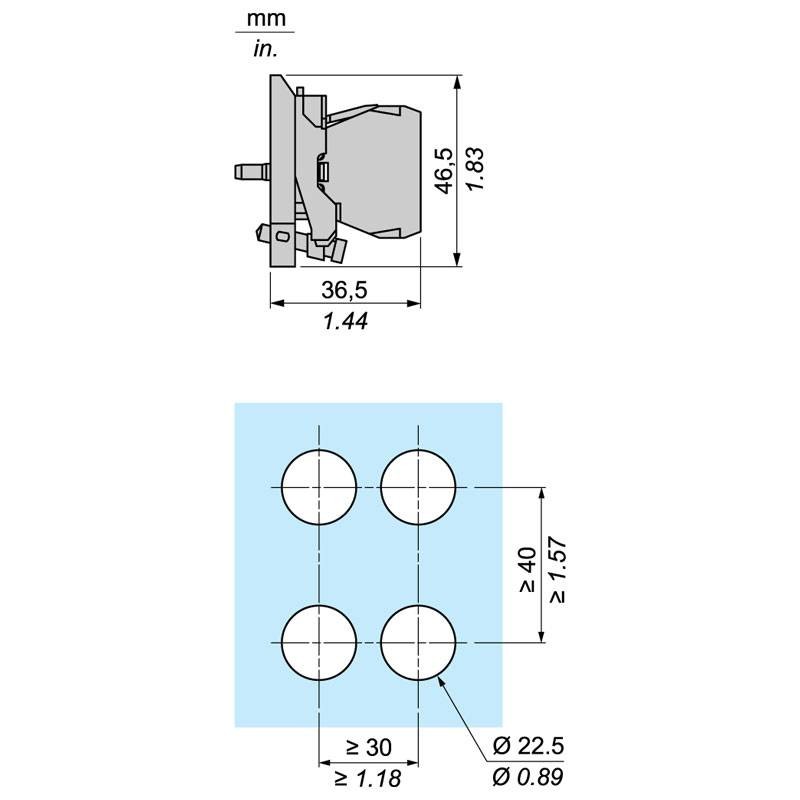

- Dimensions: height 47 mm width 30 mm depth 37 mm
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slotted compatible with plate Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
There are no reviews
Data sheet
- Type: Lamp holder
