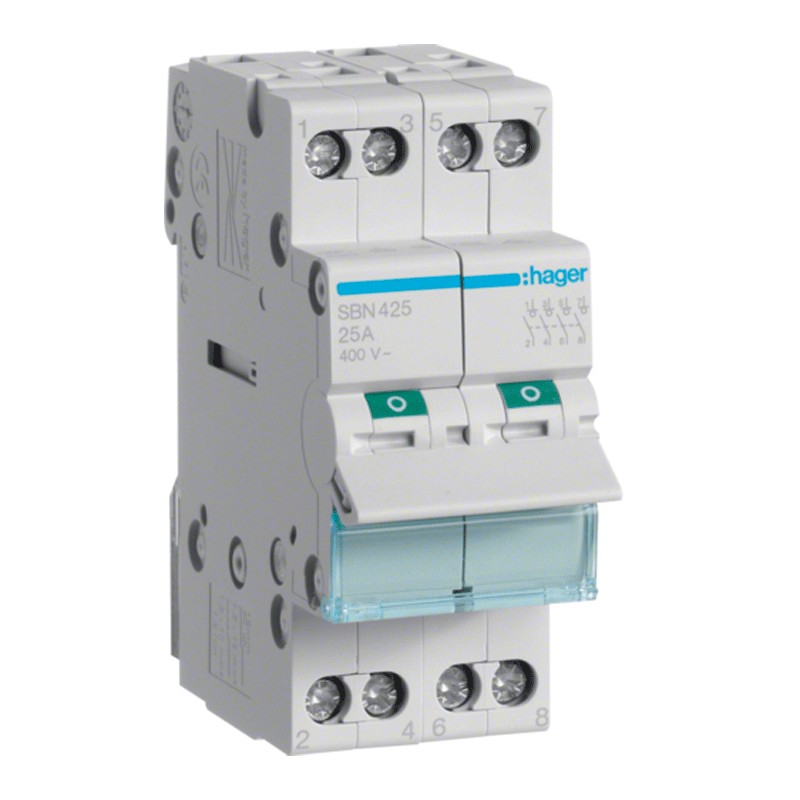

Hager Disconnect Switch 25A 4 Poles 400VAc 2 Modules SBN425

Brand: Hager

Cod: HAG SBN425 EAN: 3250615510112

Disconnect switch, Hager circuit breaker:

€27.77 Tax included

€27.77

€27.77
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 22

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Features:

Control type Disconnect switch
Neutral position without neutral
Poles 4 P
Type of poles 4 P
Rated operating voltage AC 400 V
Rated frequency 50/60 Hz
Rated insulation voltage 440 V
Type of input voltage 1 AC
Rated fault holding current 4000 V
Rated current in AC21 in category B 25 A
Rated current in AC22 in category A 25 A
Rated current in A 25 A
Breaking capacity 1 second Icw 0.375 kA
Thermal current in free air 25 A
Rated current in AC21 in category A 25 A
Rated current in AC22 in category B 25 A
Rated short-circuit closing capacity Icm at 415 V AC according to IEC 60947-3 529 A
Frequency (ETIM numerical value range) 50 to 60 Hz
Total power dissipation 3.6 W
Power dissipation per pole 0.9 W
Duty cycle. AC21 rated load electr. dur. 25000
Cycle oper. AC22 rated load electr. dur. 25000
Number of operations (mechanical duration) 200000
Depth of the installed product 68 mm
Height of the installed product 83 mm
Width of installed product 35 mm
Tightening torque 1.8Nm
Minimum cross-section with flexible cable 1.5 / 10mm²
Minimum cross-section with rigid cable 1.5 / 16mm²
Position of misaligned terminals
Type of screw connection
Quantity of NO contacts 4
Standards, Approvals Text IEC 60947-3, IEC/EN 60669-2, IEC/EN 60669-4
European WEEE Directive concerned
Enclosure degree of protection IP20
Operating temperature -2050 °C
Pollution degree/IEC60664/IEC60947-2 2
Altitude 2000m
Storage/transport temperature -40/+80 °C
