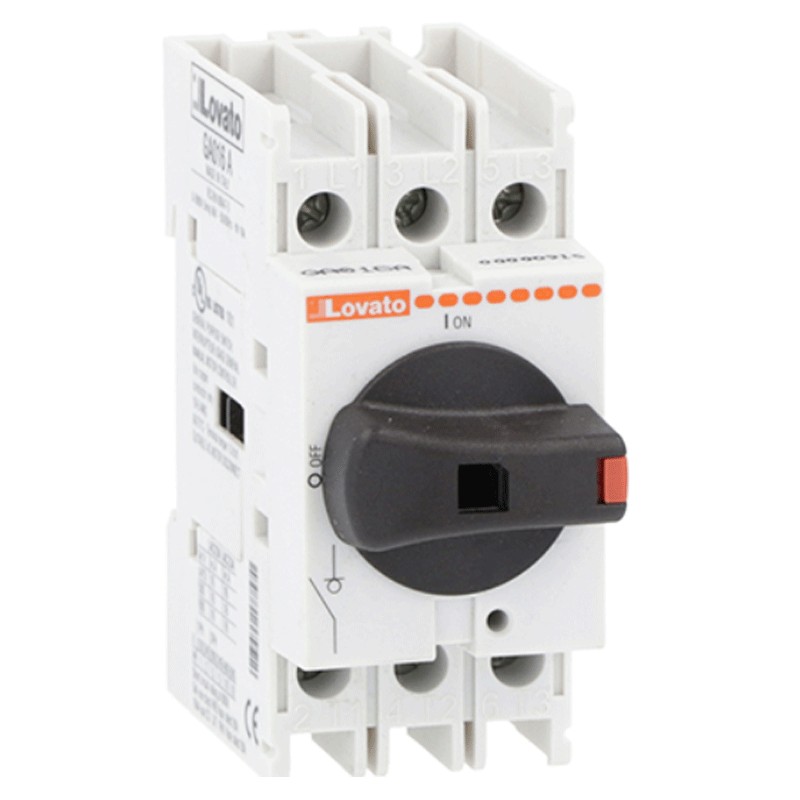

Lovato three-pole switch 25A direct control GA025A
LOV GA025A
8013975177587
Lovato three-pole switch disconnector withdirect control, with the following characteristics:
-
Max operating voltage 600 V
-
General operating current 25 A
-
Type of operating voltage AC
-
3 poles
-
2 modules
-
Screw fixing 35 mm DIN rail
-
Degree of protection front IP20
-
Mounting position flat vertical
Lovato three-pole switch 25A direct control GA025A
€20.51
Tax included
€20.51
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 39
: 4
Pay in installments with Klarna
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Features:
- Lovato series
- Operating voltage max 600 V
- Type of operating voltage AC
- 3 poles
- 2 modules
- Current In 25 A
- Rated insulation voltage IEC/EN 1000 V
- Rated impulse withstand voltage (Uimp) 8 kV
- Power dissipation per pole max 0.4 W
- Mechanical life 100000 cycles
- Electrical life 100000 cycles
- Mounting position vertical plane
- Permissible position any
- Screw fixing DIN 35 mm rail
- Terminal tightening torque min Nm 1.8 - max Nm 2
- Operating temperature min -25 °C max 55 °C
- Storage temperature min -40 °C max 70 °C
- Maximum altitude 3000 m
- Frontal protection degree IP20
- Pollution degree 3
Data sheet
- Voltage: 600VAC
- Modules: 2
- Poles: 3P
- Amps: 25A
- Circuit Protections: Disconnectors
- Operating voltage: AC
