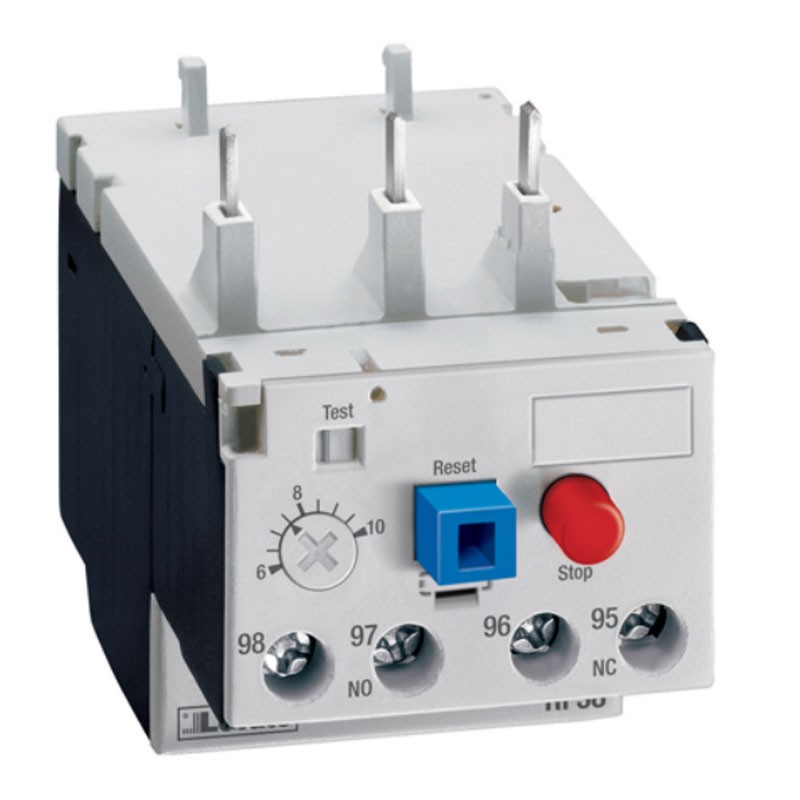

Lovato thermal relay mounting contactor BF09-38 2.5 to 4A RF380400
LOV RF380400
8013975169926
Lovato thermal overload relay for motor protection, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Rated operating voltage: 690V
- Operating frequency: min Hz 0 - max Hz 400
- Operating current Es: Min operating current UN 2.5 - Max operating current UN 4
- Trip class 10A
- Number of poles: 3
- Overvoltage category III
- Pollution degree 3
- Front IP rating: IP20
Lovato thermal relay mounting contactor BF09-38 2.5 to 4A RF380400
€37.67
Tax included
€37.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
: 4
Pay in installments with Klarna
Other technical features:
- Release type: thermal
- Phase failure detection: YES
- Recovery mode: manual or automatic
- Test button: yes
- Trip indicator: yes
- Conductor cross section: AWG/kcmil max 8
- Operating temperature: Min °C -25 - Max °C +60
- Storage temperature: Min °C -50 - Max °C +70
- Compensation temperature: Min °C -20 - Max °C +60
- Maximum altitude: m 3000
- Operating position: normal vertical plane - allowable ±30°
- Fixing: direct mounting on BF09... BF38...
- Weight: 160 grams
There are no reviews
Data sheet
- Type: Relays
- Poles: 3P
- Degree of protection: IP20
