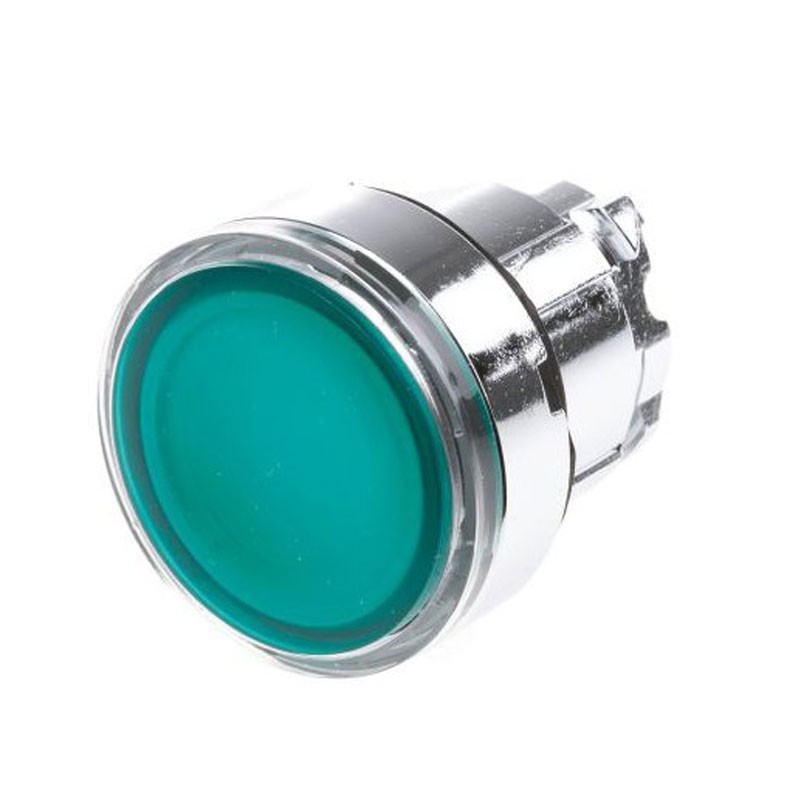

Telemecanique Bright LED Green Button ZB4BW333
SNR ZB4BW333
3389110889802
Telemecanique Schneider bright Green Harmony XB4 button head with the following features:
- Head material: chrome-plated metal
- Head type: Standard
- Mounting diameter 22 mm
- Head shape: circular
- Operator type Impulse
- Operator type: Green filoghiera, unmarked
- Operator Info: With smooth gem
- Total CAD width 29 mm
- Total height CAD29 mm
- Total CAD depth 30 mm
- Weight approx. 26 grams
Telemecanique Bright LED Green Button ZB4BW333
€7.74
Tax included
€7.74
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 359
: 46
Pay in installments with Klarna
Schneider Electric's Harmony XB4 integrated LED Harmony XB4 flush-mounted bezel light button head is green and operates with an impulse mechanism. It is circular and has a chrome-plated metal ferrule. This light head for integrated LED provides a versatile interface for machine control. It can be easily installed and replaced on complete pushbutton units compatible with pushbuttons and contact elements by snap-on mounting. It is clearly distinguishable visually from a distance due to the light head and vivid color, and by touch due to the flush ferrule element, which minimizes machine control errors. With its IP66 rating, it is resistant to shock and vibration, is protected against dust and liquid penetration, and is ideal for use in harsh environments.
Electrical composition code:
- M1 for <6 single contacts in Direct front mounting on button with LED
- M2 for <6 single and double contacts in Direct front mounting on button with LED
- M6 for <2 single contacts in Direct front mounting on button with integrated LED and transformer
- M10 for <2 single contacts in Direct front mounting on button with LED
Impact resistance:
- 30 gn (duration = 18 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
- 50 gn (duration = 11 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
Other technical characteristics:
- Resistance to high-pressure washing: 7000000 Pa at 55 °C, distance: 0.1 m
- Mechanical durability: 10000000 cycles
- TH protection treatment
- Storage temperature -40/+70 °C
- Operating ambient temperature -40/+70 °C
- Overvoltage category Class I in accordance with IEC 60536
- IP degree of protection: IP66 complying with IEC 60529,IP67,IP69, IP69K
- NEMA degree of protection: NEMA 13, NEMA 4X
- IK degree of protection: IK06 in accordance with EN 50102
- Vibration resistance: 5 gn (F= 2...500 Hz) complies with IEC 60068-2-6
There are no reviews
Data sheet
- Type: Buttons
