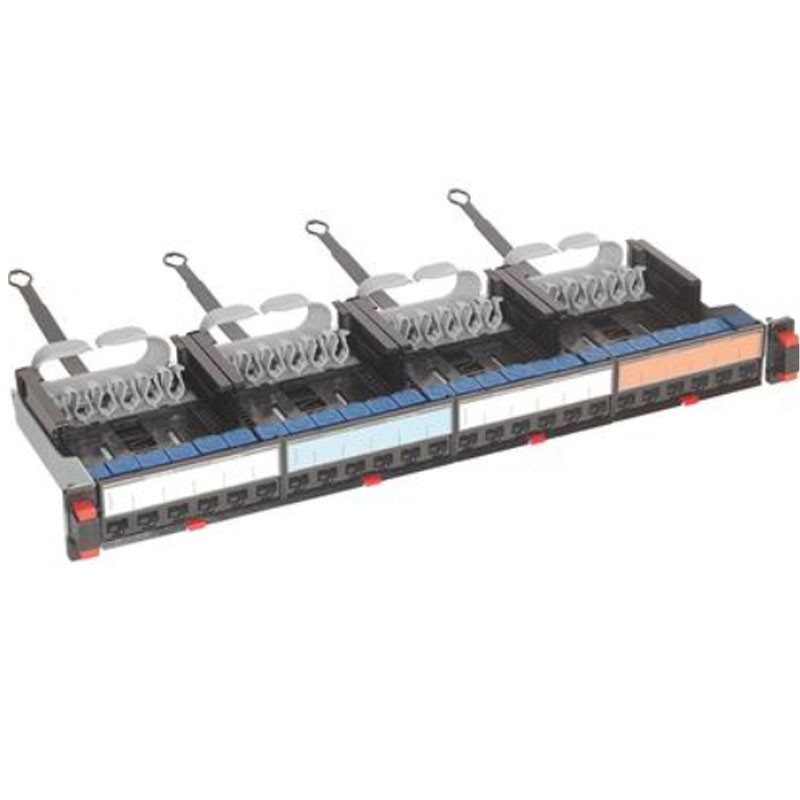

Bticino patch panel 24 RJ45 CAT5E UTP connectors C9024C5EU
BTI C9024C5EU
8005543617700
Bticino BTNET SERIES patch panel, with the following features:
- Complete with 24 RJ 45 CAT 5E UTP connectors, Quick Connect model.
- Equipped with 4 push-button removable blocks, in which are already housed connectors installable without tools, Quick Connect
- Each block contains 6 RJ 45 cat 5E UTP connectors with automatic grounding
- Built-in ergonomic cable guide for securely securing cables
- Side Quick Fix system for screwless mounting on 19" uprights
- Equipped with colored identification plates
Bticino patch panel 24 RJ45 CAT5E UTP connectors C9024C5EU
€100.92
Tax included
€100.92
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
Pay in installments with Klarna
Advantages:
- Equipped with next-generation Soluclips for automatic (screwless) mounting on switchboard and cabinet uprights (Soluclips are designed to fit uprights ranging in thickness from 1.5 to 2mm max)
- Universal mounting on all racks or cabinets with automatic grounding on unpainted uprights. Painted uprights can be grounded with a cable and screw connection
- Equipped with rear cable guide, to hold cables during maintenance
- Equipped with 4 cassettes of 6 LCS3 RJ45 Cat. 5E connectors with quick tool-free connection, marked 568 A/B
- Supplied with different color identification labels for each cassette (blue, white, yellow, orange)
- Complies with ISO/IEC 11801 version 3.0 (2017) and ANSI/TIA 568.2-D standards
- 19" panel - 1 U
- Automatically removable cassettes by simply pressing the button on the front
- Each connector can be removed individually
Placement:
- Connectors are attached to the front without the need for a special tool
- Connectors attach to the panel individually
- No need for cable ties: the cable is held in the box by its grommet and on the panel by a concentric strand guide
Material characteristics:
- Panel: galvanized steel sheet DC01
- Connector: Contacts: gold/nickel, minimum gold thickness > 0.8 μm minimum- Metal components: bronze, nickel, platinum, gold- Polycarbonate PBT
Electrical characteristics:
- Breaking voltage: 1000V
- Contact resistance: 20 mΩ
- Insulation resistance: 500 MΩ spttp i 100V DC
- "PoE" compatible remote power supply up to 100W (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)
Mechanical features:
- Max. number of connections and disconnections: 5 without wire replacement
- Durability: 2500 operations (insertion/removal) IK03
Climatic characteristics:
- Operating temperature: -10°C to +60°C
- Humidity: 5% to 85% (non-condensing)
There are no reviews
Data sheet
- Type: Patch panels
