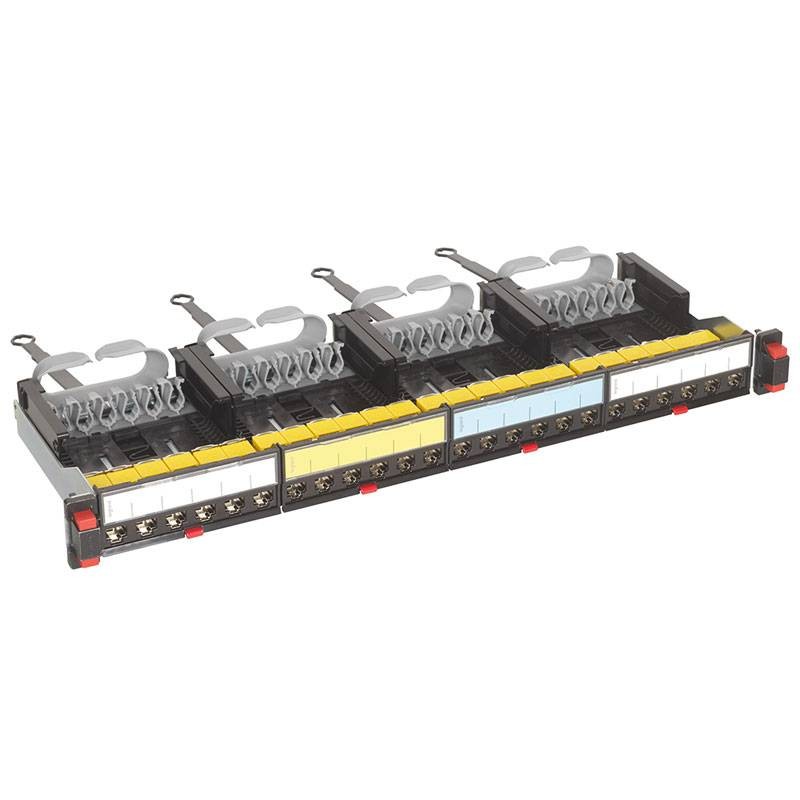

Bticino patch panel 24 RJ 45 CAT 6A UTP connectors C9024C6AU

Brand: Bticino TEST

Cod: BTI C9024C6AU EAN: 8005543617595

Bticino patch panel with the following features:

Complete with 24 RJ 45 CAT 6A UTP connectors, Quick Connect model.
Equipped with 4 push-button removable blocks, in which are housed connectors installable without tools, quick connect
Each block contains 6 RJ 45 CAT 6A UTP connectors with automatic grounding
Built-in ergonomic cable guide for securely securing cables
Side quick fix system for screwless mounting on 19" posts
Equipped with colored identification plates

€164.60 Tax included

€164.60

€164.60
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 1

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Advantages:

Equipped with next-generation Soluclips for automatic (screwless) mounting on switchboard and cabinet uprights (Soluclips are designed to fit uprights ranging in thickness from 1.5 to 2mm max)
Universal mounting on all racks or cabinets with automatic grounding on unpainted uprights. Painted uprights can be grounded with a cable and screw connection
Equipped with rear cable guide, to hold cables during maintenance
Equipped with 4 cassettes of 6 LCS3 RJ45 Cat. 6A connectors with quick tool-free connection, marked 568 A/B
Supplied with different color identification labels for each cassette (blue, white, yellow, orange)
Complies with ISO/IEC 11801 version 3.0 (2017) and ANSI/TIA 568.2-D standards
19" panel - 1 U
Automatically removable cassettes by simply pressing the button on the front panel
Each connector can be removed individually

Placement:

Connectors are attached to the front without the need for a special tool
Connectors attach to the panel individually
No need for cable ties: the cable is held in the box by its grommet and on the panel by a concentric strand guide

Material characteristics:

Panel: galvanized steel sheet DC01
Connector: Contacts: gold/nickel, minimum gold thickness > 0.8 m minimum, Metal components: bronze, nickel, platinum, gold, Polycarbonate PBT

Electrical characteristics:

Breaking voltage: 1000V
Contact resistance: 20 m
Insulation resistance: 500 M spttp i 100 V DC
PoE compatible remote power supply up to 100W. (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)

Mechanical features:
