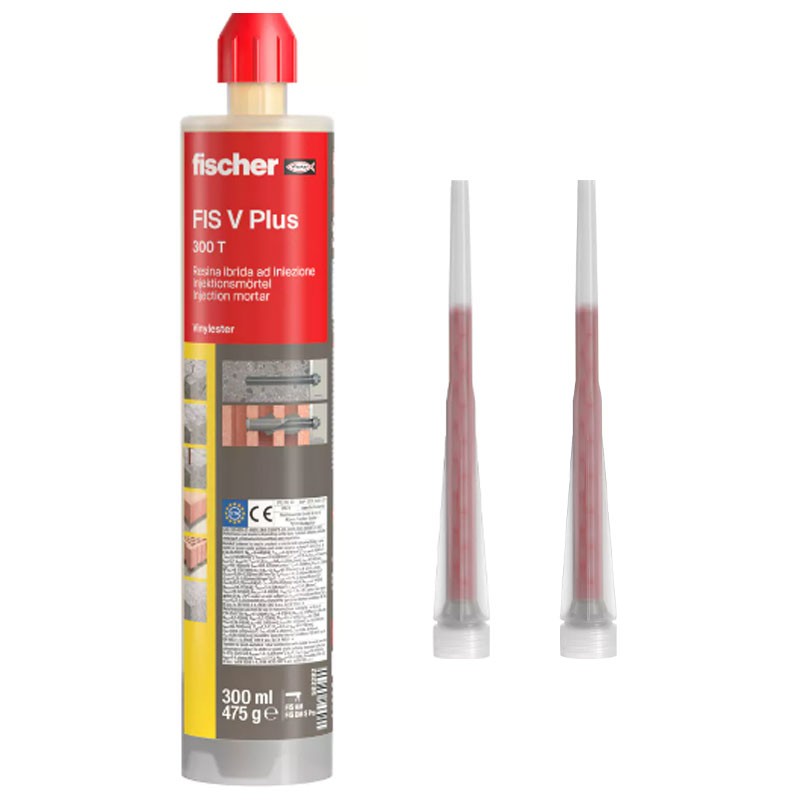

Fischer chemical anchor FIS V Plus 300 T 00563282
FIS 00563282
4048962137989
Fischer FIS V Plus 300 T hybrid vinylester chemical anchor with the following characteristics:
- Certified heavy structural anchors in cracked and non-cracked concrete with service lives of up to 100 years
- Earthquake-resistant fasteners (seismic performance category C1 and C2) with service lives of up to 100 years
- Casting restorations with post-installed reinforcing bars from Ø8 to Ø28
- Applications in water-filled holes from M12 to M30
- Fire resistance R120
- Minimum installation temperature -5°C
- Operating temperature range of -40°C to +120°C
- Suitable on laminated wood
- Wide range of certified accessories
- Partially used cartridges can be reused by simply replacing the mixer
- Contents: 300 ml (475 grams)
Fischer chemical anchor FIS V Plus 300 T 00563282
€15.62
Tax included
€15.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 124
: 11
Pay in installments with Klarna
FIS V Plus is approved in combination with TherMax 12/16 fastener for spaced and thermally insulated loads and with VBS 8 fastener for retaining double-skin face brick walls. The reduced curing time of the FIS VW Plus version enables rapid work progress even at low temperatures.
Applications:
- Structural steelwork construction
- Connections of steel profiles in concrete and masonry
- Concrete reinforcement
- Reinforcement of concrete slabs
- Masonry consolidation
- Wood construction
- Facades
- Canopies
- Awnings
- Balustrades and railings
- Stairs
- Brackets and brackets for hydrothermal systems
Support materials:
- Certified for anchorages in: C20/25 to C50/60 concrete
- Cracked and non-cracked
- Solid brick
- Solid calcium silicate brick
- Semi-full brick (vertically perforated) brick
- Semi-full (vertically perforated) calcium silicate brick
- Hollow block in normal concrete
- Lightened concrete hollow block
- Autoclaved aerated concrete (cellular)
Suitable for:
- Concrete connections with FRA anchor bar
- Fixing in concrete and masonry with TherMax 12/16
- Connection of exposed brick walls with VBS 8
- Glulam wood
Certifications:
- ETA-20/0603
- ETA-20/0728
- ETA-20/0729
- DoP No. 0231
- DoP No. 0232
- DoP No. 0331
- ESR-2786
- 20046/15515
- 22044-enshort
- EPDDBCFIW20220088IBE2DE
Assembly:
- FIS V Plus is a two-component injection resin hybridized with Portland cement-based inorganic agents that provide excellent resistance to high temperatures (up to +120 °C)
- Resin and hardener are in two separate containers and are not mixed or activated until extrusion occurs through the mixer
- Manually install FIS A (or RG M) threaded rods, reinforcing bars, or RG MI internally threaded sleeves by rotating them slightly until they reach the base of the hole
- To achieve maximum shear loads in seismic performance category C2 fill the annular space between the threaded bar and the hole of the object to be fastened with FIS V Plus resin. For optimal filling, use the appropriate FFD filler washer.
Data sheet
- Type: Fixing Accessories
