Joints Connectors Cembre head for copper conductors 10mmq L2-M
CEM L2-M
8016692037585

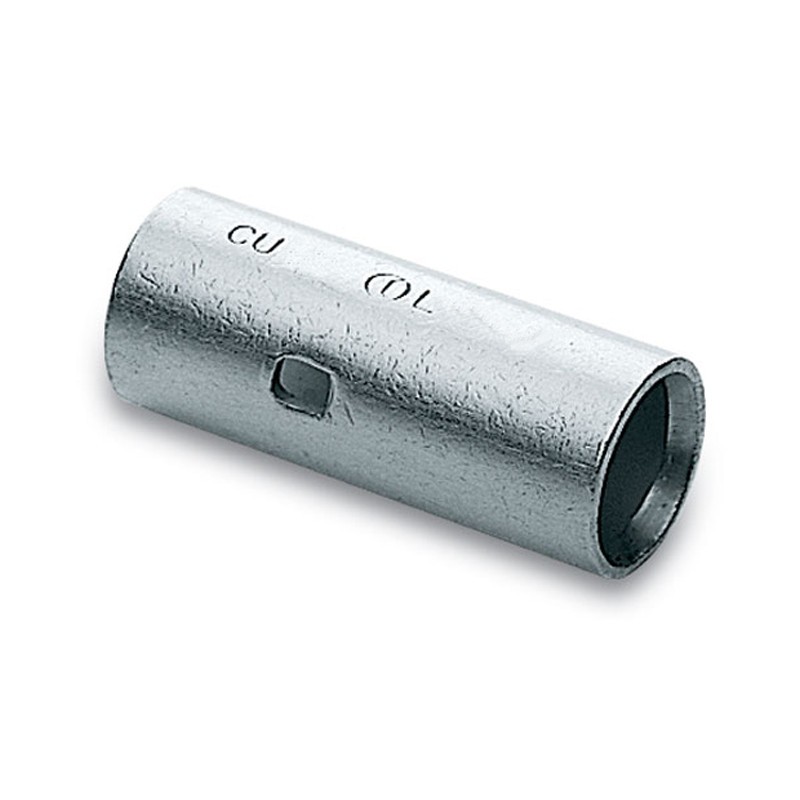

Joints Connectors Cembre head for copper conductors nominal section 10mmq, size, diameter 4.6 mm, length 25mm. Copper material ETP tin-plated electrolytically.
Joints Connectors Cembre head for copper conductors 10mmq L2-M
€0.39
Tax included
€0.39
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 598
: 32
Pay in installments with Klarna
The connectors of series-M are designed for the jointing of low voltage cables. Are made from tube of electrolytic copper of the same size as the one used for the cable lugs of series A-M, are annealed and protected on the surface by tinning electrolyte. Are provided with a chamfer at both ends, and a stop in the central area, for easy and correct introduction of the conductor.
Are made from tube of electrolytic copper Cu-OF CW008A according to the UNI EN 13600.
Data sheet
- Type: Connections
- Section: 10mmq
