Fischer pre-assembled triangle for photovoltaic inverters 10/13 degrees 00512625
FIS 00512625
8001132022450

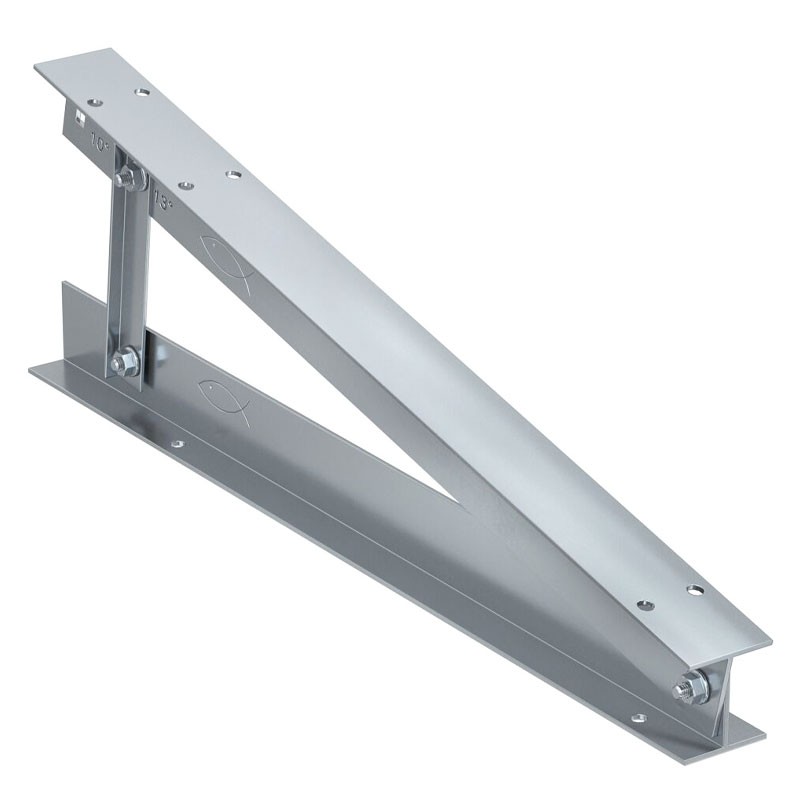

Fischer STFS pre-assembled triangle support for photovoltaic installations, with the following features:
- Adjustable tilt at 10 and 13 degrees
- Compact for roofs with limited perimeter shielding
- Made of AW 6063/6060 T66 aluminum
- Supplied pre-assembled and connection accessories to Solar profiles are included in the package
- Stainless steel A2-70 hardware in accordance with EN ISO 3506-1/2:2009
- Profile cross-sectional area: 3.00 cm²
- Hole diameter: 9 mm
- Tightening torque: 10 Nm
- Tightening wrench: 13 mm
The selling price refers to the purchase of a single piece.
Fischer pre-assembled triangle for photovoltaic inverters 10/13 degrees 00512625
€28.99
Tax included
€28.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 55
: 4
Pay in installments with Klarna

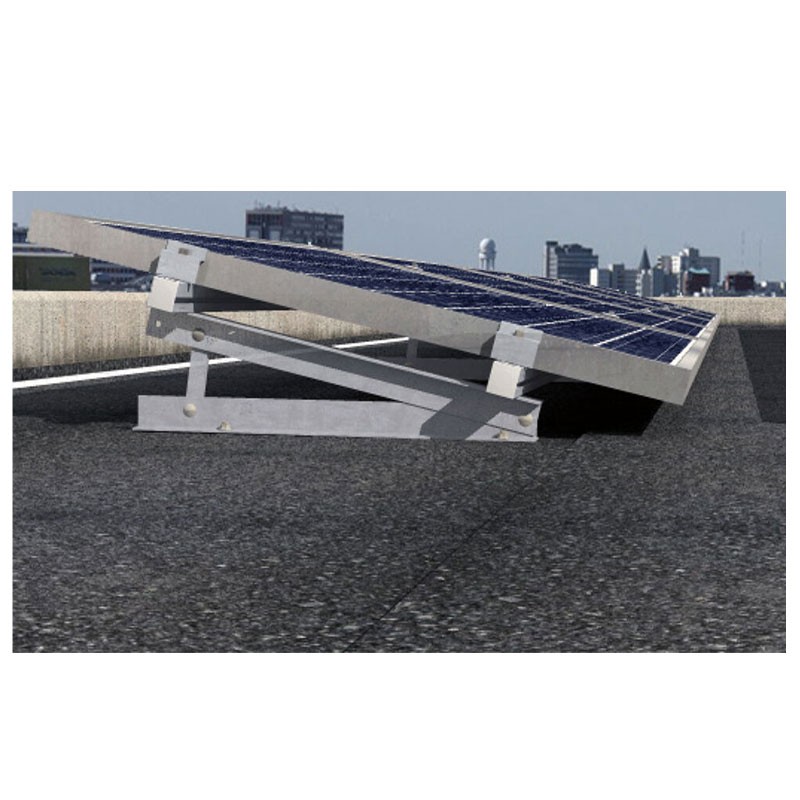

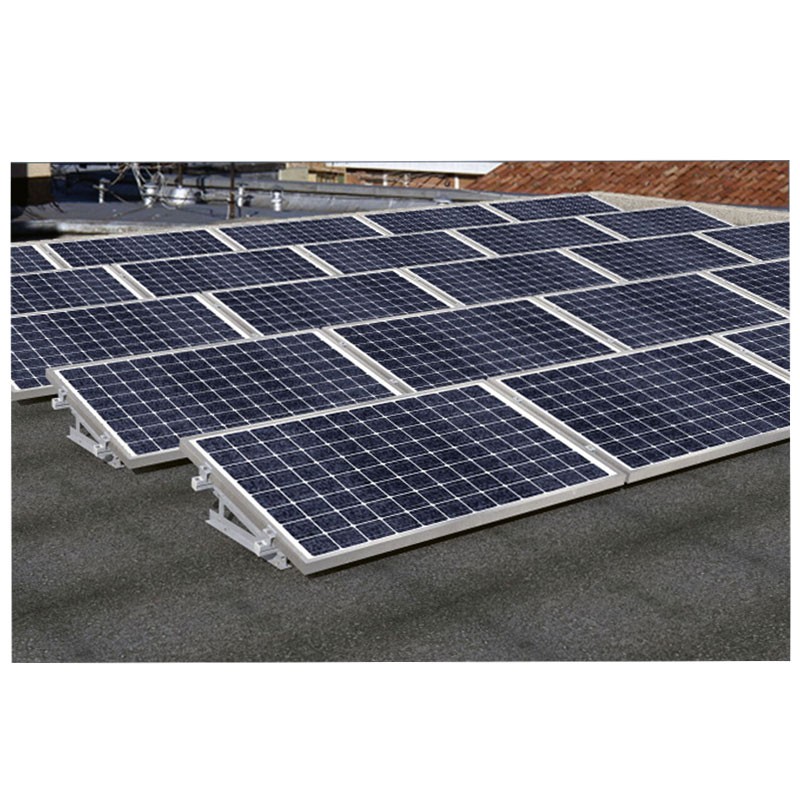

The triangle for low-position installation of PV panels on flat roofs. Suitable for installation of panels with landscape orientation.
STFS is the compact triangle for low-position installation of photovoltaic systems on flat roofs with landascape orientation panels. Especially suitable for minimizing the visual impact of the system and wind action in case of roofs with limited height perimeter masonry.
Advantages:
- Complete: the STFS triangle comes pre-assembled, and the accessories for connection to Solar profiles are included in the package
- Flexible: by moving the diagonal between 2 positions, 2 different angles (10° and 13°) are possible
- Invisible: the installation, with horizontal panel arrangement, is only 30 cm high
Mounting:
- Define the spacing of the triangles according to the snow and wind loads of the installation area of the system, according to the National Standards
- Locate the position of the triangles according to the supporting structure and layout of the system
- Secure the base of the triangle with the appropriate anchor depending on the substrate support material
- Attach the Solar profile to the diagonal of the triangle using the screws in the package
There are no reviews
Data sheet
- Type: Fixing Accessories
