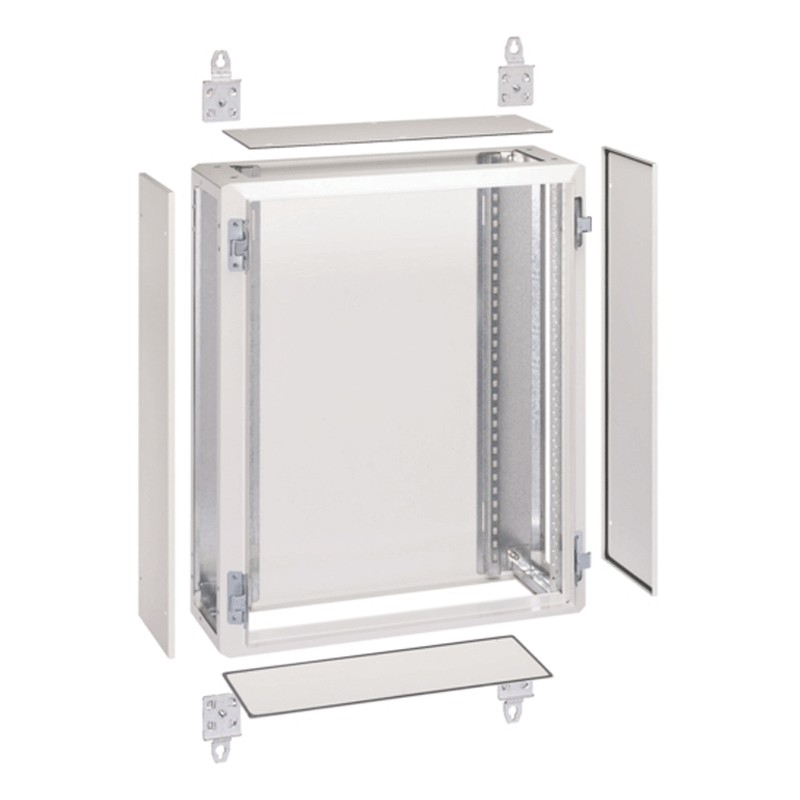

Hager Quadro 5 wall-mounted switchboard 660x685x260mm IP55 FM201
HAG FM201
3250612632015
Hager Quadro 5 wall-mounted switchboard dimensions 660x685x260mm, protection rating IP55.
Hager Quadro 5 wall-mounted switchboard 660x685x260mm IP55 FM201
€201.66
Tax included
€201.66
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Hager quadro 5 IP55 switch boards and enclosures allow the installation of modular equipment and molded case circuit breakers up to 630A in all civil and tertiary environments. The range includes one-piece, modular, side-by-side and stackable switchboards and cabinets from 72 to 432 DIN modules composed of one-piece structure with open sides , closed back, cable entry plates, plinth (cabinets) to be completed with side panels and blind or transparent doors color RAL 9010. Main advantages are complete accessibility on all 4 sides, cabinets with double depth 260 and 400mm, built-in or side-by-side cable/bar compartment, real use up to 630A thanks to 400mm deep cabinets, easy and quick assembly, single kit internal system for all series, elegant and personal design. Use is suitable for short-circuit currents up to 35kA.
Features:
- Mounting mode Pedestal (underground mounting)
- Not Suitable for lightning protection
- Rated current in A 630 A
- Material thickness cover 2mm
- Cover type Blind door
- Single door leave
- Cover type Door
- Without Transparent cover or door
- Pure white color
- White color
- RAL Color White RAL 9010
- Material Steel
- Powder coated surface treatment
- Built-in depth 260 mm
- Installed product depth 260 mm
- Interior depth 260 mm
- Height of installed product 660 mm
- Installed product width 700 mm
- Width in units of division 24
- Thickness of side wall material 2 mm
- Not Suitable for outdoor use
- Mounting plate not included
- With lock
- Equipment Quantity of rows in the enclosure 4
- Quantity of section in width 2
- Number of flanged sides 2
- Removable
- Degree of impact resistance >IK10
- Degree of protection of the enclosure IP55.
There are no reviews
Data sheet
- Type:
- Panels
- Degree of protection:
- IP55
- Model:
- Without door
- Installation:
- Wall-mounted
- Amps:
- 630A
