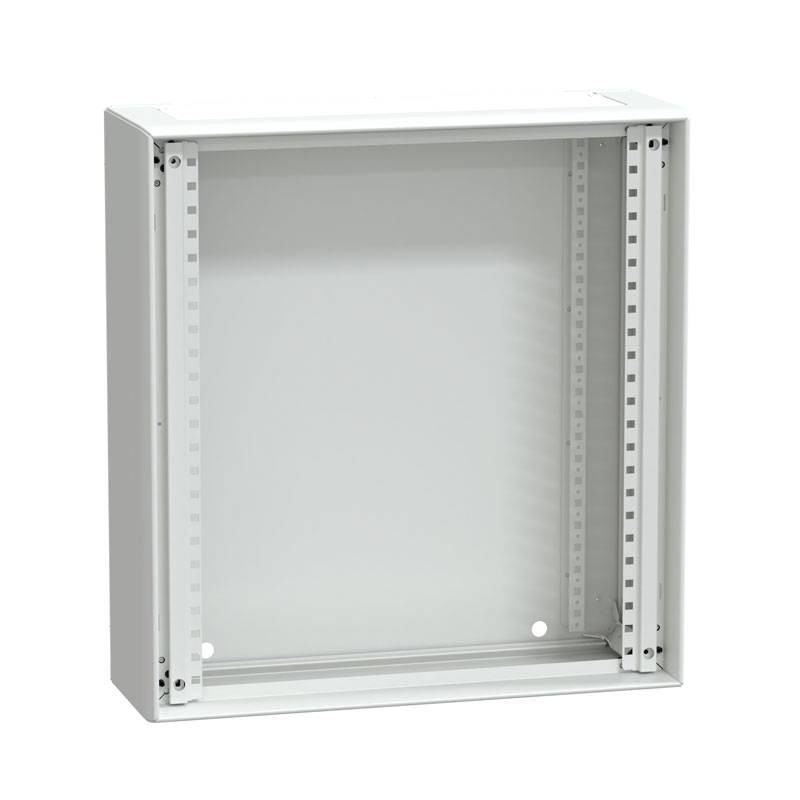

Schneider PrismaSeT G L600mm H630mm 12M IP30 LVS08104 Wallboard
SNR LVS08104
3606481876904
Schneider PrismaSeT G W600mm H630mm 12M IP30 wall panel with the following features:
- Product range: PrismaSet G
- Device Application: Low-voltage electrical distribution
- Enclosure Type: Functional enclosure delivered as a kit - Metal enclosure - Indoor enclosure
- Description of enclosure/cabinet: Wall cabinet - width 600 mm
- Number of vertical modules (50 mm): 12
- Number of 18mm modules per row: 24
- Rated insulation voltage: 1000V on the rear main busbars according to IEC 61439-2
- Rated current: 630A at 40°C in accordance with IEC 61439-2
- Short-circuit current: 50 kA
- Rated short-time withstand current: 25 kA 1 s complying with IEC 61439-1
- Rated peak withstand current: 53 kA complying with IEC 61439-1
Schneider PrismaSeT G L600mm H630mm 12M IP30 LVS08104 Wallboard
€330.12
Tax included
€330.12
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 2
Pay in installments with Klarna
Features:
- Electrical insulation class: Class I
- Material: Treated sheet steel
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
- Surface finish: Matt textured
- Mechanical strength: Seismic testing - 2.5G complying with IEC 60068-2-57
- Standards: IEC 61439-1 - IEC 61439-2 - IEC 62208
- Product certifications: ASTA - EAC
IP rating:
- IP30 with front panel
- IP40 with door
- IP41 with door and canopy
- IP43 with door, canopy and gasket IP43
IK degree of protection:
- IK07 with front panel
- IK08 with transparent door
- IK10 with plain sash
Kit composition:
- Uprights
- Back plate
- 2 side panels
- Upper plate
- Bottom plate

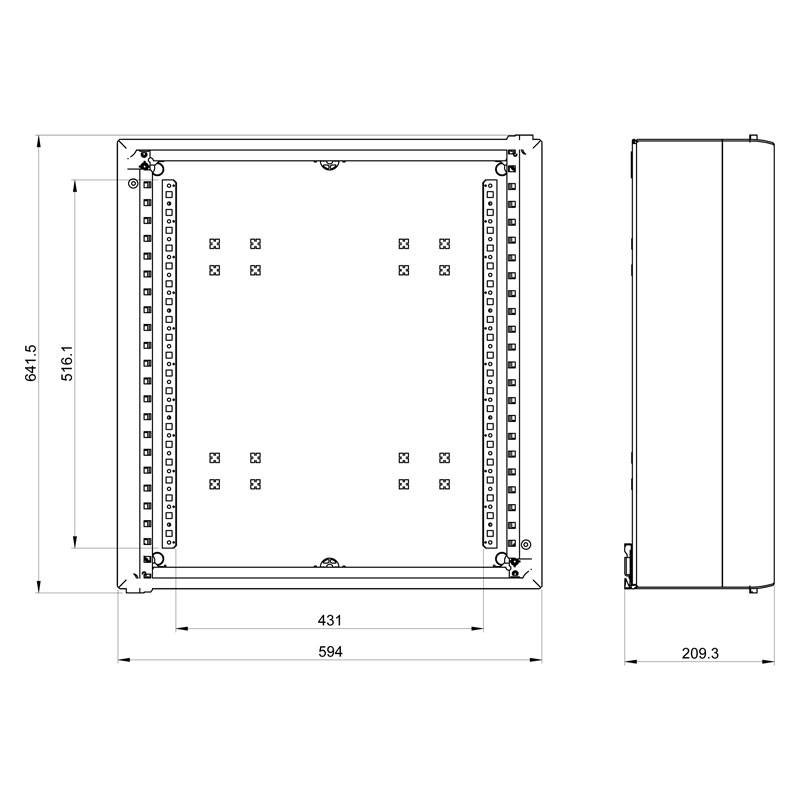

Dimensions and weight:
- Height: 630 mm
- Width: 595 mm
- Depth: 205 mm
- Weight: 10.78 kg
There are no reviews
Data sheet
- Type: Panels
- Modules: 12
- Degree of protection: IP30
- Installation: Wall-mounted
- Amps: 630A
