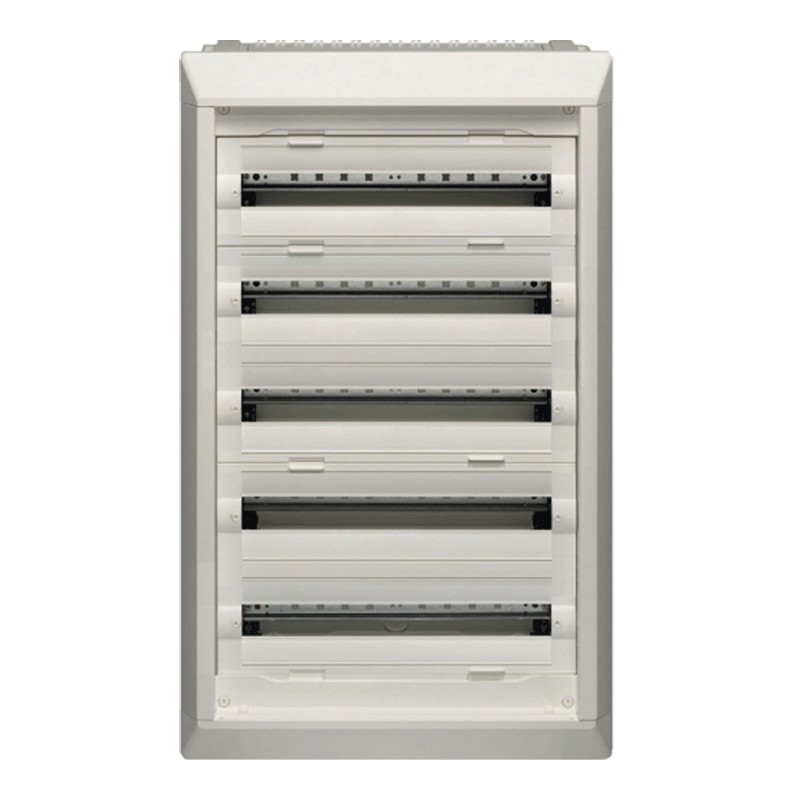

Hager Vega Built-in Panelboard D 120 Modules without Door FU52LN
HAG FU52LN
3250612711048
Hager Vega D 120 Modules recessed switchboard without door height 987mm.
Hager Vega Built-in Panelboard D 120 Modules without Door FU52LN
€431.72
Tax included
€431.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Features:
- Flush mounting modes
- Compatible with mounting on DIN Rail
- Current rating in A 160 A
- White color
- RAL color White RAL 9010
- Material Plastic/metal
- Surface treatment powder-coated
- Recessed depth 110 mm
- Installed product depth 150 mm
- Inside depth 110 mm
- Height of installed product 987 mm
- Height of installed product 987 mm
- Width of installed product 600 mm
- Width in units of division 24
- Thickness of side wall material 1 mm
- Not Suitable for outdoor use
- Number of duct inlets 4
- Mounting plate not included
- Without lock
- Amount of rows in the enclosure 5
- Amount of section in width 2
- Number of sections 5
- Accessory yes
- Number of flanged sides 2
- Removable no
- Degree of impact resistance IK07
- Enclosure degree of protection IP30
- Insulation protection class II
There are no reviews
Data sheet
- Type:
- Panels
- Modules:
- 120
- Degree of protection:
- IP30
- Model:
- Without door
- Installation:
- Recessed
- Amps:
- 160A
