Best seller
Ferrari G4 gas meter diaphragm domestic use steel 010940
FER 010940
8025584888044

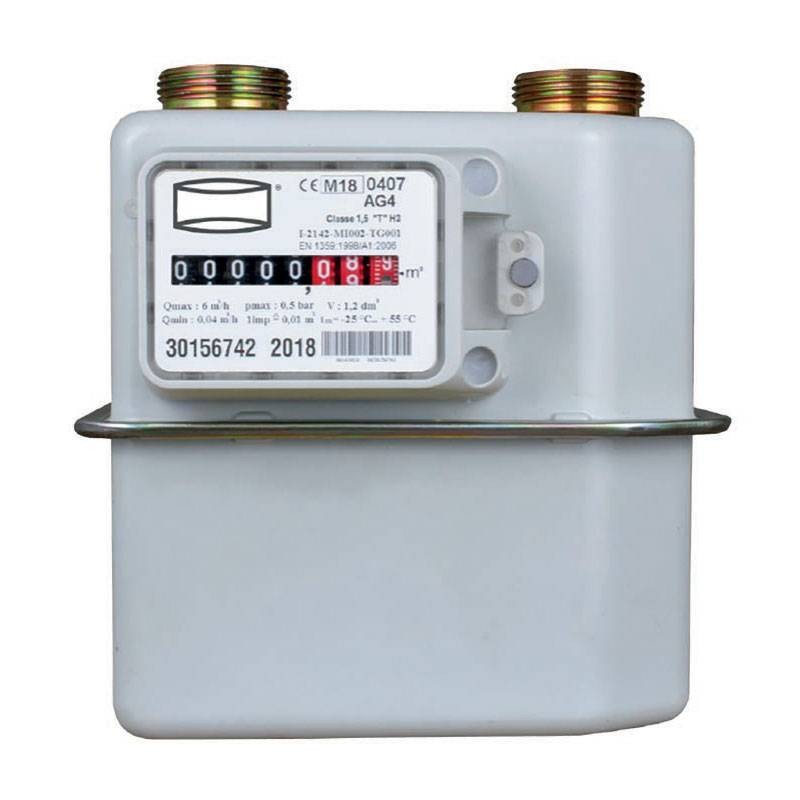

Ferrari G4 diaphragm gas meter for domestic use made of steel with the following characteristics:
- Maximum flow rate: Qmax = 6 m³/h
- Minimum flow rate: Qmin = 0.04 m³/h
- Cyclic volume: V = 1.2 dm³
- Maximum working pressure: Pmax = 0.5 bar steel
- Ambient temperature: -25/+55 degrees
- Starting flow rate: 5 dm³/h
- Approval: MID
- Equipped with mechanical backstop
Ferrari G4 gas meter diaphragm domestic use steel 010940
€58.62
Tax included
€58.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 41
: 5
Pay in installments with Klarna
The type G4 gas meter is designed for domestic use, with high performance in terms of measurement accuracy and safety. In particular, the magnetic transmission excludes any possibility of gas leakage, reducing pressure drop.
The gas meter is prepared for mounting a pulse generator (1imp = 0.01m³). , for remote reading. Epoxy powder coating provides perfect protection against weathering. In any case, it is good practice to protect the meter from the direct action of ultraviolet rays and the weather.
Data sheet
- Type: Gas meters
