Pole Amplifier FTE 3 VHF 2UHF 22DB LG227LTE 2UHF Input Amplifier
FTE LG227LTE
8436545300305

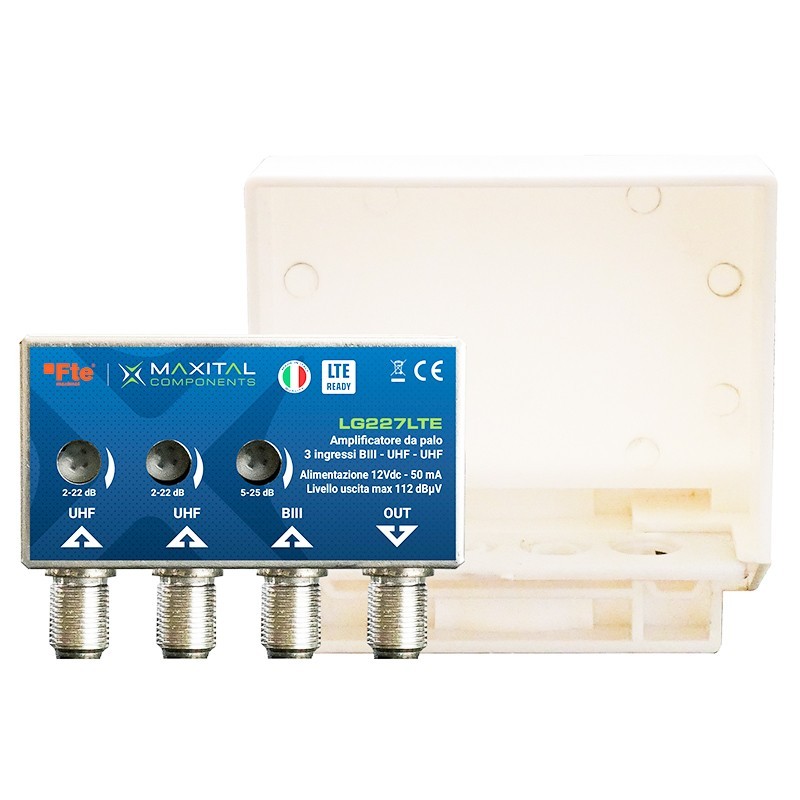

FTE pole mount amplifier with 3 BIII/ UHF/UHF inputs, 12V power supply, 16/26 dB gain, fully shielded 112 dBµV output level, equipped with internal LTE filter and plastic rain enclosure
Pole Amplifier FTE 3 VHF 2UHF 22DB LG227LTE 2UHF Input Amplifier
€28.76
Tax included
€28.76
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 59
: 1
Pay in installments with Klarna
STRENGTHS
- Separate band amplification VHF / UHF
- 16 / 28 dB gain and 112 dBµV output levels
- Gain adjustment 20 dB
- Integrated LTE/4G filter
- Fully shielded metal frame and type F connectors
- Power supply 12 VDC
- Equipped with plastic houses and pole clamps
- 100% Made in Italy
APPLICATIONS
Amplifies the DTT signals coming from a single logarithmic or combined BIII UHF antenna oriented on a repeater from which it is possible to receive BIII and UHF band signals. Suitable for the distribution of signals in small installations. From a coaxial cable remote feeder via 12 V power supply with art. LPS200 / LPS202
TECHNICAL DATA
- No. 3 inputs (BIII/UHF/UHF)
- Bands 174 ÷ 230 / 470 ÷ 790 / 470 ÷ 790
- No. of exits 1
- Gain - dB BIII: 16 / UHF: 26 / UHF: 26
- Gain adjustment - dB BIII: 16 / UHF: 20 / UHF: 20
- Max. output level VHF / UHF - dBµV 112
- Noise figure - dB
Materiale ok
Non mi hanno dato mai problemi di funzionamento
Amplificatore molto compatto. Funziona alla perfezione.
Prodotto eccellente soddisfatto del acquisto
Prodotto come da descrizione. Ottimo il montaggio con la fascetta inclusa e le connessioni a F.
Data sheet
- Type: Amplifiers
- Version: 3IN/2OUT
- Model: Pole
