Energy Abb Wallbox 7.4KW kit 1 T2 RFID socket line protection and one-way meter
KIT ABBENERGY
the Kit consists of:

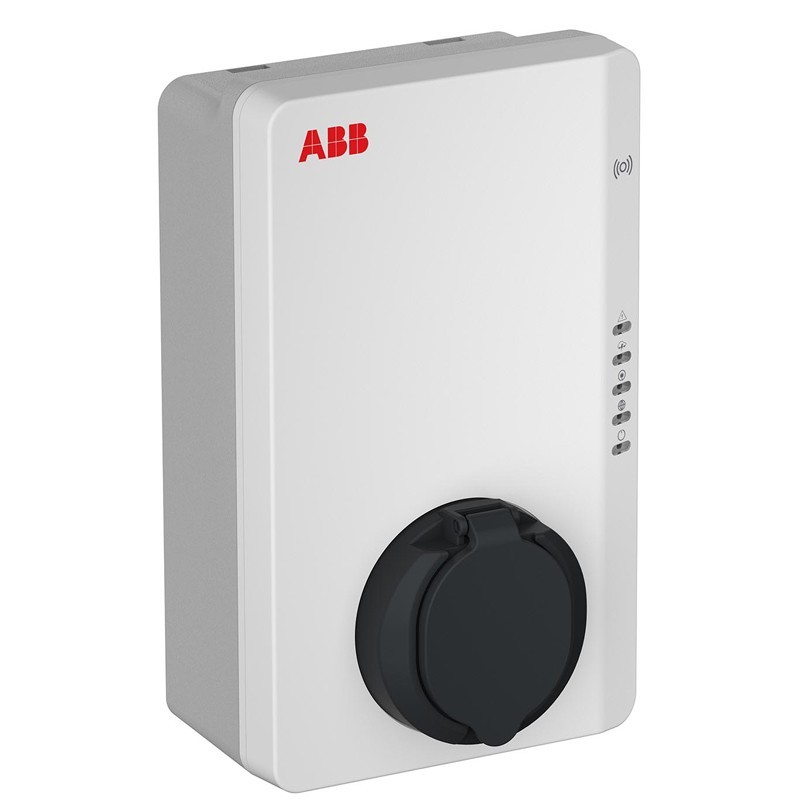

- 1 Ground Charger AC Wallbox Abb Single Phase 7.4KW with 1 T2 Socket with shutter and RFID Card (1 included) 6AGC101252
- 1 Abb Differential Circuit Breaker 40A 30mA 1P+N Type A 6KA 2 Modules DS201C40A30
- 1 ABB Smart Meter 230V Energy Meter B211121
Charging Mode 3, Level 2. The wallbox is designed for smart charging in homes and businesses. Compatible with the electrical system of homes and buildings.
With the kit you save compared to individually purchased items
Energy Abb Wallbox 7.4KW kit 1 T2 RFID socket line protection and one-way meter
€899.97
Tax included
€899.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Frequently bought together
The Terra AC wallbox is equipped with a high-precision meter that can be integrated with intelligent building energy management systems, enabling advanced load management capabilities. This allows home and business owners to adjust the power of recharging as needed to maximize it consistent with maximum cost savings.
Benefits
Prepared for communication with external energy meter for dynamic load management.
Integrated protection
- PE continuity monitoring
- Overcurrent
- Overvoltage
- Undervoltage
- Ground fault, including DC ground fault protection
- Integrated surge protection.
Connectivity
- Ethernet, Bluetooth, WiFi standard on all models
- 4G connectivity (with 3G compatibility) available in some variants
- OCPP 1.6 protocol.
Smart features
- Configuration via ChargerSync APP or ChargerSync web portal
- User authentication via ChargerSync APP or RFID card.
Features:
- Charging mode Mode 3, level 2
- Supply voltage Single-phase 220 240 VAC.
- Power rating and input/output current 7.4KW / 32A
- TT, TN systems
- Frequency 50 / 60 Hz
- Socket type: Type 2 socket outlet with shutter
- Overvoltage Category III
- Energy measurement Integrated (indicative accuracy +/- 2%)
- Weight 2 kg
- Overall dimensions (H x W x D) 320 x 195 x 110 mm
- Degree of protection IP54
- Mechanical shock protection IK10 (IK08+ for operating temperatures of -35 to -30 °C)
- Altitude 2000 meters
- Operating temperature -35°C to + 55°C (with derating)
- Storage temperature from -40 to +80°C
- Wall, floor installation via accessory kit
- Cellular communication with nano SIM slots GSM, 4G, LTE, WCDMA
- Configurable contacts 1 input, 1 output
- OCPP 1.6 software upgrade, ChargerSync web portal or ChargerSync APP
- ChargerSync web portal or ChargerSync APP management and configuration
- Connectivity Wifi, Ethernet (RJ45), Bluetooth, RS485, 4G / 3G
- User interface RFID card (1 included) or via ChargerSync APP
- OCPP 1.6 and RS485 communication protocols for energy meter connection
- Status signaling 5 LEDs
- Safety standards EN 61851-1: 2019, IEC 62955: 2018
- CE Certifications.
Abb DS201 C40 A30 differential circuit breaker:
- Rated current 40A
- Rated residual current: 30mA
- Poles 1P+N
- Residual current type: A
- Rated short-circuit capacity 6KA
- Tripping characteristic: C
- 2 modules
The thermal-magnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one and interrupts the electric current if necessary.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.
The magneto-thermal differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire;
- the thermal one for overloads in the power supply (e.g., more than one appliance in operation);
- the differential one proper to the circuit breaker, which protects the subject from a power leakage.
The C-curve, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.
Type A differential circuit breaker, tripping is assured for alternating sine differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (IEC EN 61008-1).
Characteristics:
- Rated voltage 230 V
- Rated operating voltage:230 / 240 V AC
- Rated insulation voltage 500V
- Impulse withstand voltage 4 kV
- Dielectric proof voltage:2 kV
- Rated primary impulse withstand voltage:4 kV
- Input voltage type:AC
- Rated short-circuit capacity 6 kA
- Frequency 50/60 Hz
- Contact position indication: Red ON / Green OFF
- Energy limitation class: 3
- Number of poles: 2
- Number of protected poles: 1
- Operating characteristic: Instantaneous
- Overvoltage category: III
- Position of neutral terminals: Right
- Tightening torque: 2.8 N-m
- Ambient temperature: -25 to 55 °C
- Ambient temperature: Operating -25...55 °C
- Dimensions: Product width: 0.035 m - Product height: 0.085 m - Product depth: 0.069 m
- Product net weight:0.200 kg.

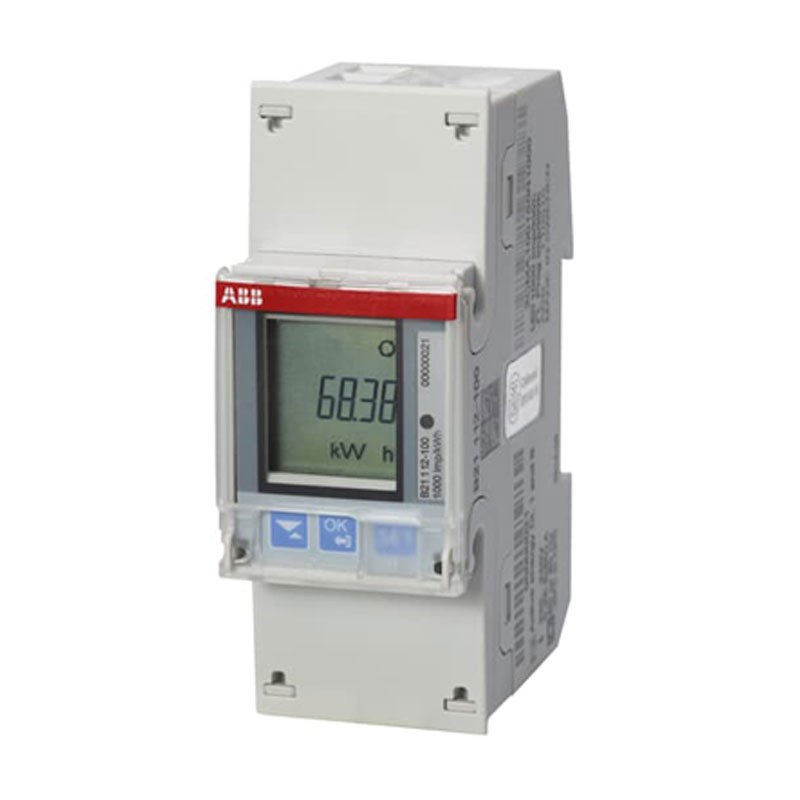

ABB Smart Meter energy meter, with the following features:
- Ideal for its excellent compactness
- Ideal solution for 230 Vac systems
- Ambient operating temperature -40 +70 °C
- Rated current 65A
- Rated voltage 220/240 Vac
- IP20 degree of protection
- Plastic enclosure material
- Frequency 50/60 Hz
- DIN rail mounting type
They allow the following quantities to be displayed, depending on the version chosen:
- Active, reactive, apparent energy
- Active, reactive, apparent power, currents
- Frequency
- Voltages
- Breakdown of consumption into tariffs
- Power factor
- Two-way consumption
All codes are certified according to the MID directive, have outputs for pulse or alarm management, and infrared port for communication with KNX adapter. The meters depending on the versions have built-in serial communication interfaces for Modbus RTU (RS485 version) and Meter BUS (M-Bus versions).
Features:
- Abb Series
- Product width 35 mm
- Product height 26.5 mm
- Product depth 65 mm
- Product net weight 0.15 kg
- Ambient operating temperature -40 +70 °C
- Accuracy Active Energy Cl. ±1% (or B for MID meters)
- Modbus communication interface
- MODBUS RTU communication
- Cable cross-sections-main circuit 1...25 mm²
- Rated current 65A
- Rated voltage 220/240 Vac
- Degree of protection IP20
- Plastic enclosure material
- Frequency 50/60 Hz
- Function Electricity meter
- Type of measurement direct connection
- DIN rail mounting type
- Number of phases 1
- Current consumption (@Pcons) 0.414 W
- Main product type B21
- Date RoHS 2012-36
- Reference Standards EN 50470-3
- Steel sub-function
There are no reviews
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
