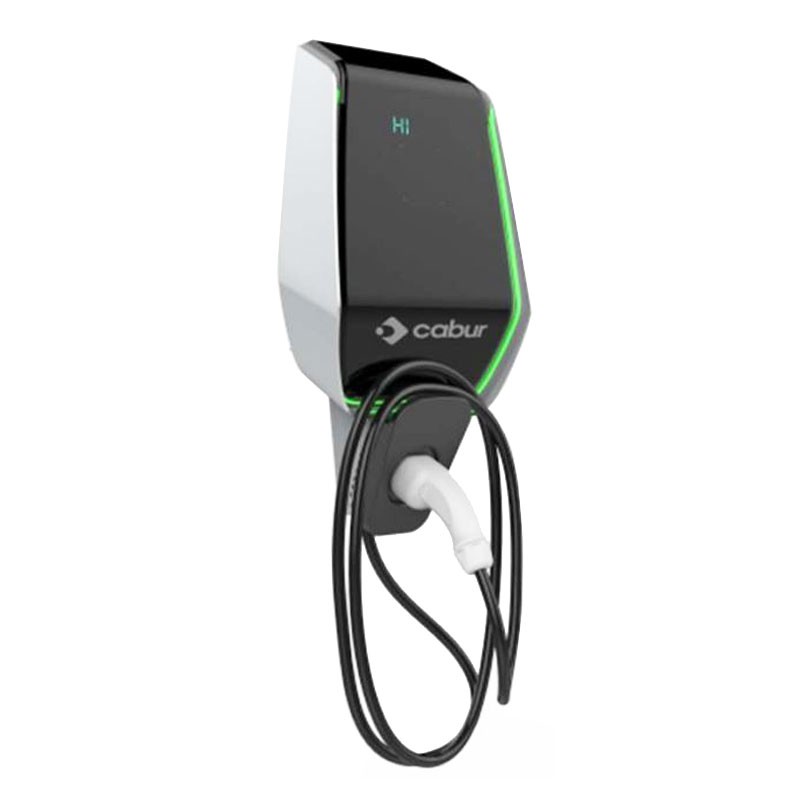

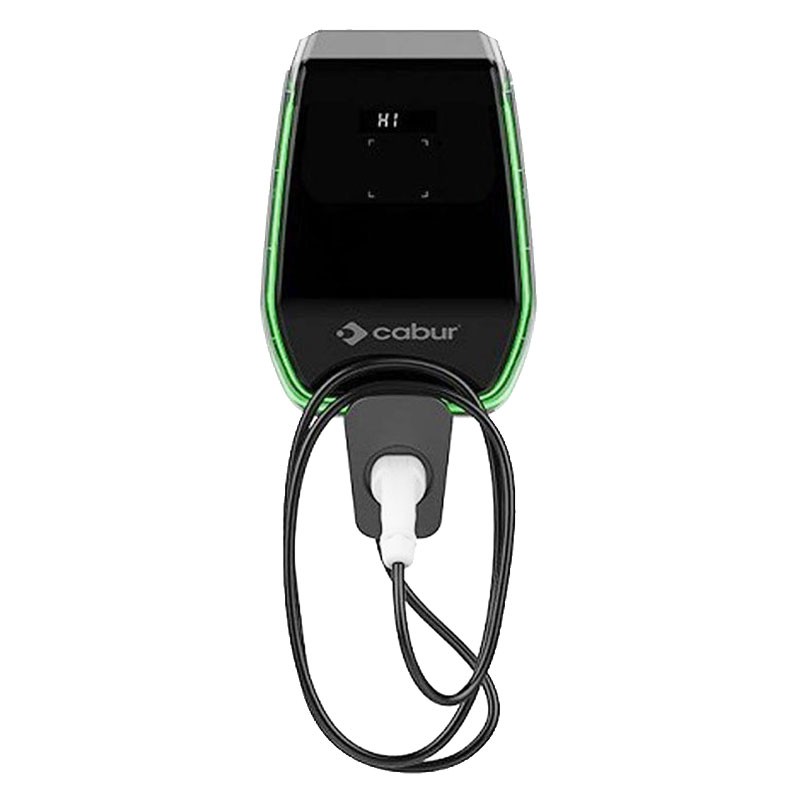

Recharge Electric Vehicles Wallbox Cabur 7,4KW with 1 Cable T2 Single phase EVPLUS7C

Brand: Cabur

Cod: CBR EVPLUS7C EAN:

Recharge Electric Vehicles Wallbox Cabur, power 7,4KW supplied with 1 cable with socket type 2, single-phase power supply.

Recharge Electric Vehicles Wallbox Cabur 7,4KW with 1 Cable T2 Single phase EVPLUS7C

€1,102.23 Tax included

€1,102.23

Recharge Electric Vehicles Wallbox Cabur 7,4KW with 1 Cable T2 Single phase EVPLUS7C

€1,102.23
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 8

: 2

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Frequently bought together

Cabur Wallbox Stand for 1 or 2 EVSTD refills

CBR EVSTD

€237.80

Description

The charging stations for electric vehicles EV Smart Charger line of Cabur offer the most advanced solution and a complete range for the needs of domestic users, condominiums and medium-sized companies and institutions. With an original and elegant design, they adapt easily to different needs of installation and use. They guarantee flexibility, advanced functionality, excellent standards and high levels of security, both for the user and the installer.

Advantages:

Refined and compact design
Available in Compact, Easy and Plus versions, from 7.4 to 22 kW
Charging mode MODE 3, with integrated cable and cable holder (CASE C) or with socket (CASE B)
Connector, TYPE 2 socket
WI-FI connectivity in Client or Access Point mode
Charging process started by RFID cards or dedicated Web APP
Possibility to constantly monitor the recharge status through dedicated Web APP
Recharge options management through dedicated Web APP
DC leakage 6mA differential protection for ground fault currents
Integrated MID certified meter
Remote management through OCCP protocol
Possibility of wall or stand mounting
CE Certifications DEKRA, TUV

Features:

3.5-7.4kW power
Charging mode MODE 3 CASE C (with 5m cable)
Type 2 cable connector
Dimensions (W x H x D) 355x650x150 mm
Weight 10.98kg
Enclosure Material PC+ASA (UL94-V0)
Cooling system Integrated fan
Mounting Wall / Stand Mounting

Technical specifications:

230V±15% mains
Network frequency 50/60Hz
Mains configuration TN/TT/IT(1P+N+PE or 2P+PE)
Efficiency >99%.
Leakage current protection DC Leak (6ma)
Recharge management Control by RFID card Control by OCPP Control by WEB APP (optional)
Indicators: Contour LED (green, red, blue) Digital display LED indicators
Energy measurement MID certified power meter
Connectivity Wifi (Client)/Wifi (AP) Hotspot RS485 (Load balancing ext meter) CAN (Load balancing)
OCPP Protocol OCPP1.6J
Additional functions System FW upgrade via Wif
Reporting Recharge report Error/problem report
Protection degree IP54
Operating temperature -25°C to +50°C
Operating humidity ?95%RH
Standard Certificate IEC 61851-1; IEC 61851-21-2 (EMC class B); IEC 62196-2; EN 300 328 (RED WiFi 2.4GHz); EN 301 489-1/17 (RF-EMC); EN 62311 (Health)
CE CB (DEKRA) / CE (DEKRA) certified.
