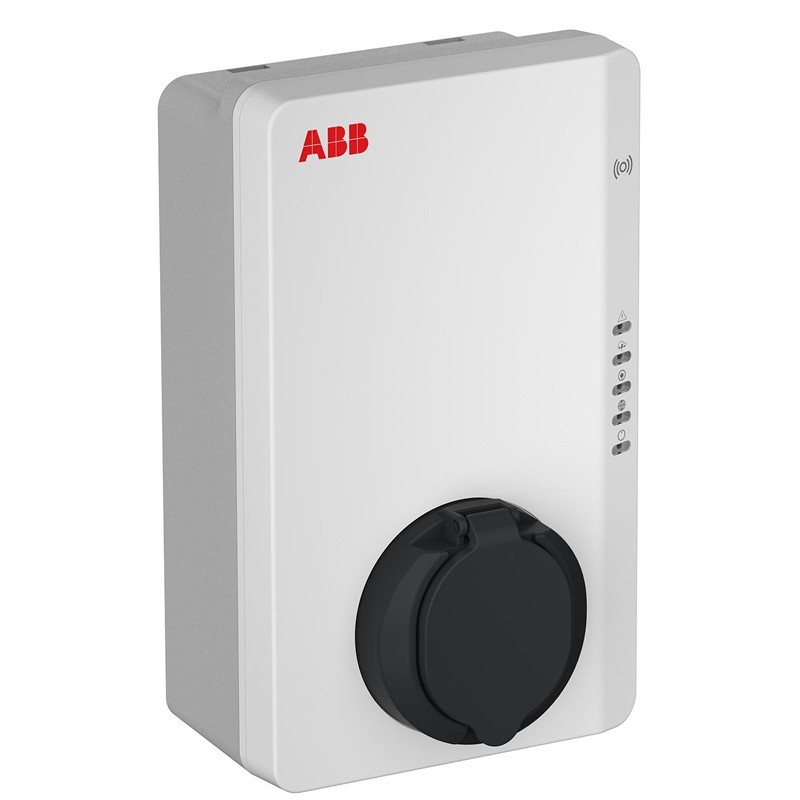

Single Phase 7.4KW Wallbox Abb Ground AC Charger with 1 T2 RFID Socket 6AGC101252
ABB 6AGC101252
8719874452076
Terra AC Wallbox Abb Single-phase 7,4KW charger with 1 T2 socket with shutter and RFID card (1 included). Charging mode Mode 3, level 2. The wallbox is designed for smart charging in homes and businesses. Compatible with the electrical system of homes and buildings.
Single Phase 7.4KW Wallbox Abb Ground AC Charger with 1 T2 RFID Socket 6AGC101252
€938.58
Tax included
€938.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 203
: 9
Pay in installments with Klarna
Frequently bought together
The Terra AC wallbox is equipped with a high-precision meter that can be integrated with intelligent building energy management systems, enabling advanced load management capabilities. This allows home and business owners to adjust the power of recharging as needed, to maximize it consistent with maximum cost savings.
Benefits
Ready for communication with external energy meter for dynamic load management.
Integrated protection
- PE continuity monitoring
- Overcurrent
- Overvoltage
- Undervoltage
- Ground Fault including DC Ground Fault Protection
- Integrated overvoltage protection
Connectivity
- Ethernet, Bluetooth, WiFi as standard on all models
- 4G connectivity (with 3G compatibility) available in some variants
- OCPP 1.6 protocol.
Smart functions
- Configuration via ChargerSync APP or ChargerSync web portal
- User authentication via ChargerSync APP or RFID card.
Features:
- Charging mode Mode 3, level 2
- Supply voltage Single-phase 220 240 VAC
- Power rating and input/output current 7,4KW / 32A
- TT, TN systems
- Frequency 50 / 60 Hz
- Type of socket: Type 2 socket with shutter
- Overvoltage category III
- Energy measurement Integrated (indicative accuracy +/- 2%)
- Weight 2 kg
- Overall dimensions (H x W x D) 320 x 195 x 110 mm
- Degree of protection IP54
- Mechanical shock protection IK10 (IK08+ for operating temperatures from -35 to -30 °C)
- Altitude 2000 meters
- Operating temperature -35°C to + 55°C (with derating)
- Storage temperature from -40 to +80 °C
- Wall installation, floor installation with accessory kit
- Cellular communication with nano SIM slot GSM, 4G, LTE, WCDMA
- Configurable contacts 1 input, 1 output
- Software upgrade OCPP 1.6, ChargerSync web portal or ChargerSync APP
- Management and configuration ChargerSync web portal or ChargerSync APP
- Connectivity Wifi, Ethernet (RJ45), Bluetooth, RS485, 4G / 3G
- User interface RFID card (1 included) or via ChargerSync APP
- Communication protocols OCPP 1.6 and RS485 for energy meter connection
- Status indication 5 LEDs
- Safety standards EN 61851-1: 2019, IEC 62955: 2018
- CE certifications.
Trop tôt,
je n'ai pas encore eu le temps de l'installer,
mais produit de qualité !!!
Délai respecté
Tarifs correct
Point négatif. J'ai demandé 2 fois une facture en pdf.Pas de nouvelle. Dommage
Collegamento soltanto in prossimità della wallbox attraverso il bluetooth
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
