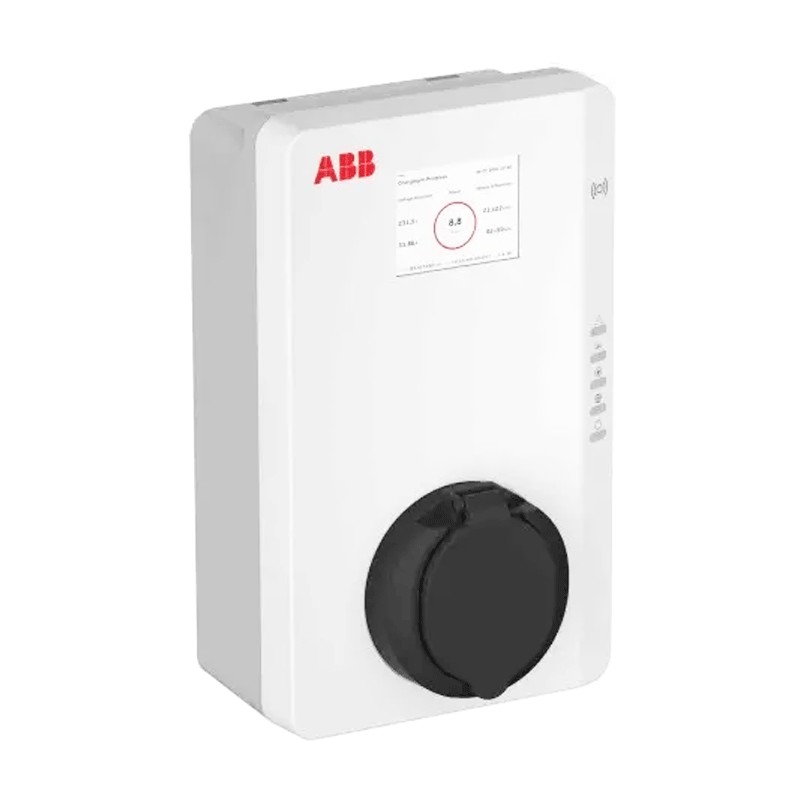

Earth AC Wallbox Abb Single Phase 7.4KW RFID 4G socket T2 MID charger 6AGC101191
ABB 6AGC101191
8719874452069
Earth AC Wallbox charger Abb:
- Power rating and input/output current 7.4KW
- Single phase 220 240 VAC
- User authentication via ChargerSync App or RFID card
- 4G connectivity (With 3G compatibility) available in some 4G variants
- 1 Socket with T2 shutter
- Ethernet (RJ45)
- Bluetooth
- Built-in WiFi
Earth AC Wallbox Abb Single Phase 7.4KW RFID 4G socket T2 MID charger 6AGC101191
€1,521.06
Tax included
€1,521.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 57
Pay in installments with Klarna
Frequently bought together
Strengths:
- Ready for communication with external energy meter for dynamic load management (ABB EQ meter)
- All variants are suitable for indoor and outdoor installation: IP54, IK10
- OCPP 1.6 protocol
- Configuration via ChargerSync App or ChargerSync web portal
Integrated protection
- PE continuity monitoring
- Overcurrent
- Overvoltage
- Undervoltage
- Ground Fault including DC Ground Fault Protection
- Integrated overvoltage protection
Features:
- Charging Mode Mode 3, Level 2
- Power rating and input/output current Single-phase up to 7.4 kW / 32 A
- Supply voltage Single-phase 220 240 VAC
- TT, TN systems
- Frequency 50 / 60 Hz
- Type of socket / connector Type 2 socket with shutter
- Overvoltage category III
- Energy measurement Integrated (MID certified)
- Weight 3 kg
- Overall dimensions (H x W x D) 320 x 195 x 110 mm
- Degree of protection IP IP54
- Mechanical shock protection IK10 (IK08+ for -35 to -30 °C operating temperature)
- Altitude 2000 m
- Operating temperature -35°C to + 55°C (with derating)
- Storage temperature -40 to +80 °C
- Wall installation, floor installation via accessory kit
- Cellular communication with nano SIM slot GSM, 4G, LTE, WCDMA
- Configurable contacts 1 input, 1 output
- Software upgrade OCPP 1.6, ABB web portal or ChargeerSync App
- Management and configuration ABB web portal or ChargeerSync App
- Connectivity Wifi, Ethernet (RJ45), Bluetooth, RS485, 4G / 3G
- User authentication via ABB RFID Card (1 included*) or via ChargerSync App
- ChargerSync App user interface, ABB web portal
- Communication protocols OCPP 1.6; RS485 for energy meter connection; TCP/IP
- Status indication 5 LEDs
- Safety standards EN 61851-1: 2019, IEC 62955: 2018, EN 62311, EN62479
- CE Certifications
Accessories:
- Nr.5 RFID with ABB logo 6AGC082175
- No.5 RFID without logo (unbranded) 6AGC082176
- Rectangular pedestal for 1 or 2 wallboxes** 6AGC082326
- Rectangular pedestal metal base for 1 WB 6AGC085345
- Rectangular metal pedestal base for 2 WB 6AGC085684
- Single-phase charging cable T2-T2 7m 230V 32A 6AGC082535
- Three-phase charging cable T2-T2 7m 400V 32A 6AGC082537
Bluetooth connectivity:
Connecting Terra AC Wallbox via Bluetooth to ChargerSync App or ChargerSync Web Portal allows you to simplify the management of your charging infrastructure, allowing you to monitor information about charging sessions and station status and easily report any malfunctions or failures.
ChargerSync App:
Mobile application available on Google Play Store or Apple Store that allows the owner to connect to the charging station via Bluetooth to:
- Quickly and easily configure the charging station
- Start and stop the charging session
- Authenticate the included RFID card
- View charging status, statistics and any errors
- Set the maximum current of the charging session
- Manage a limited number of stations from a single interface
- Receive and manage software updates
ChargerSync Web Portal:
Cloud-based service that allows the following functions:
- Connect to the station when online (via LAN/WIFI/4G) to perform advanced configuration, view charging status, statistics and errors
- Mapping of different RFID cards into groups and priorities
- Load management configuration and monitoring
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: Without cable
- WIFI: Integrated
- Connection: Single-phase
