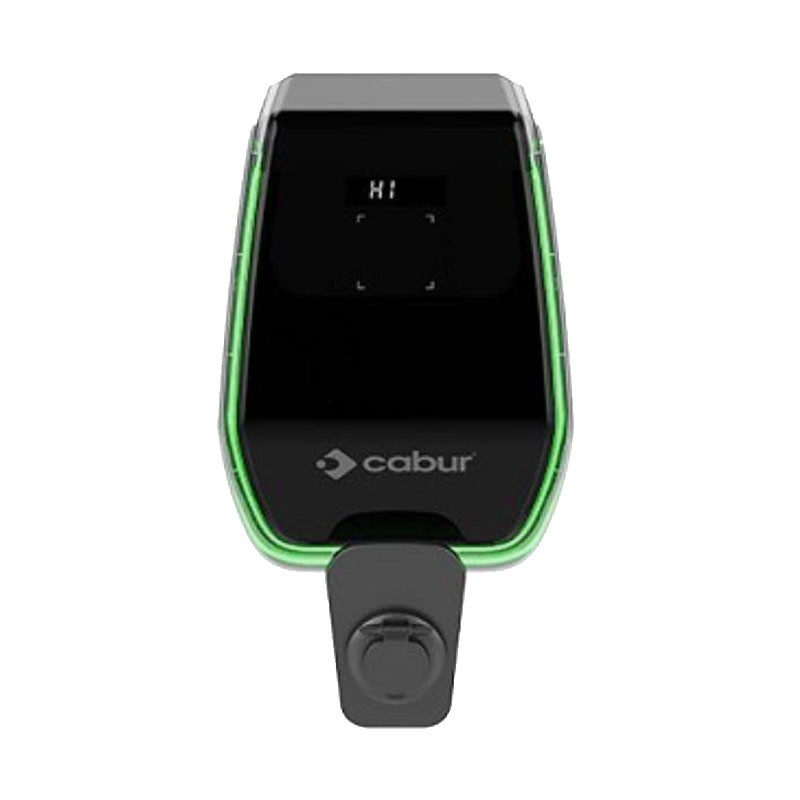

Wallbox Cabur EV Charger Plus 7,4KW T2 single phase EVPLUS7S charging station
CBR EVPLUS7S
8017963228527
Wallbox Cabur EV Charger Plus charging station:
- 3.5-7.4kW Power
- Charging Mode 3 Case B (with socket)
- Type 2 socket
- Supply Voltage 230V±15% 50Hz
- RFID Card
- OCPP Control
- APP Control
- Wifi(Client)/Wifi(AP) Connectivity.
- Accessory cable Type 2 for Wallbox single-phase and three-phase 5 meters to buy separately code EVCPH3TY2M5
- Accessory Support for Wallbox Cabur EV Charger Plus to buy separately code EVSTD.
Wallbox Cabur EV Charger Plus 7,4KW T2 single phase EVPLUS7S charging station
€1,017.82
Tax included
€1,017.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 100
: 26
Pay in installments with Klarna
Frequently bought together
The charging stations for electric vehicles EV Smart Charger line of Cabur offer the most advanced solution and a complete range for the needs of domestic, condominium and medium-sized companies and institutions. With an original and elegant design, they easily adapt to different needs of installation and use. They guarantee flexibility, advanced functionality, excellent standards and high levels of security, both for the user and the installer.
Features:
- Dimensions (W x H x D) 355x650x150 mm
- Weight 9.08kg
- Housing material PC+ASA (UL94-V0)
- Cooling system Integrated fan
- Wall/stand mounting
- Distribution systems TN/TT/IT(1P+N+PE or 2P+PE)
- 99% Efficiency
- Ground fault current protection DC Leak (6ma)
- RFID Card Charging Process Warning - OCPP - APP Control
- Signaling LED light on outline (red, blue, green) - Digital display - LED indicators
- Integrated Power meter (MID certification)
- Wifi(Client)/Wifi (AP) connectivity - Hotspot - RS485 (Power management with external meter) - CAN (Load balancing)
- Remote management protocol OCPP1.6J
- Service functions WIFI system upgrade
- Reporting Recharge reports - Error reports.
Protections
- Overcurrent Protection
- Overvoltage Protection
- Undervoltage Protection
- Relay temperature protection, socket
- CP fault protection
- Relay malfunction protection
- Degree of protection IP54
- Operating temperature -25°C to +50°C
- Operating humidity ?95%RH.
Certifications:
- IEC 61851-1: 2017
- (RED WiFi 2.4GHz----RF: EN 300 328 RF-EMC: EN 301 489-1&-17 Health (MPE): EN 62311)
- (RED RFID 13.56MHz ----RF: EN 300 330 RF-EMC: EN 301 489-1&-3 Health (MPE): EN 62311)
- Certification CE CB from DEKRA/CE from DEKRA.
There are no reviews
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
