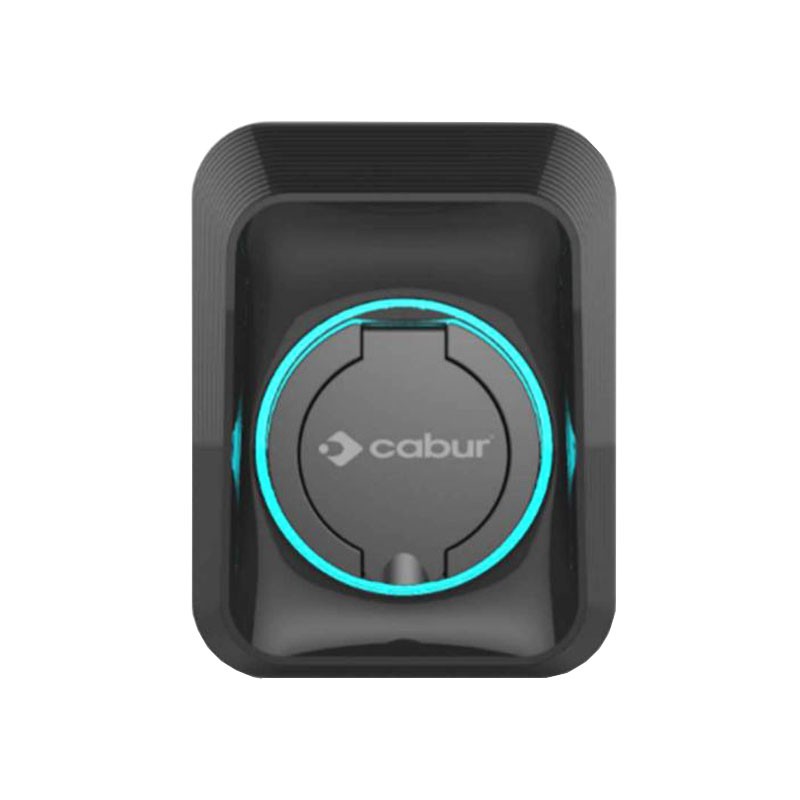

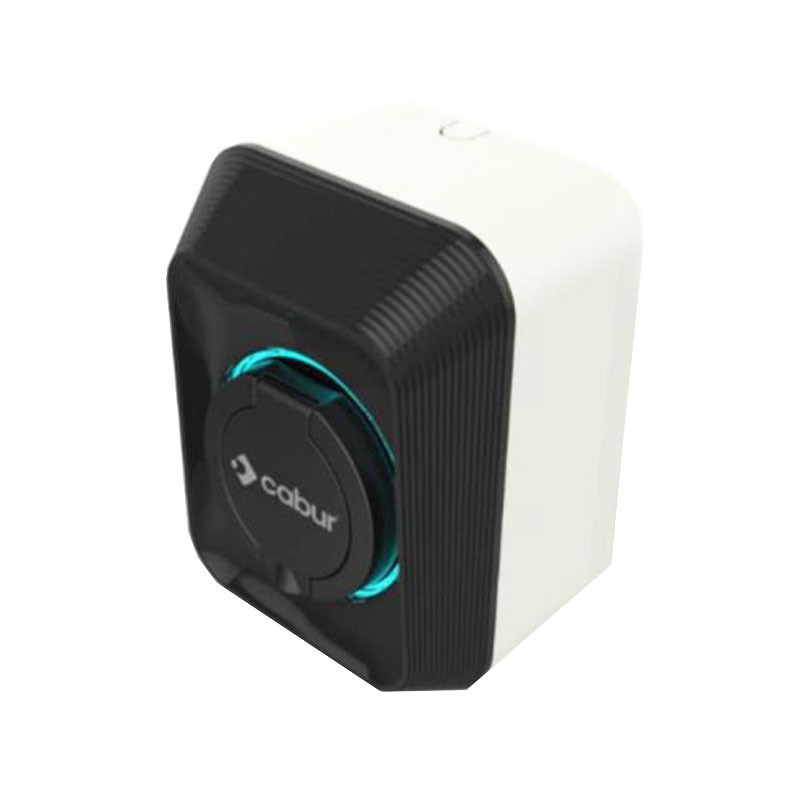

Battery charger Wallbox electric cars Cabur COMPACT 7KW without cable EVCOMP7S
CBR EVCOMP7S
8017963228510
Wallbox battery charger for Cabur electric cars, the most compact on the market supplied without cable, charging mode 3 (for electric cars):
- Power 3.5-7.4kW
- Type 2 socket
- Compact dimensions (WxHxD) 160x210x126 mm
- Recharge management control through Web App
- Wifi connectivity (ap) Hotspot.
Battery charger Wallbox electric cars Cabur COMPACT 7KW without cable EVCOMP7S
€669.32
Tax included
€669.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 44
Pay in installments with Klarna
The charging stations for electric vehicles EV Smart Charger line of Cabur offer the most advanced solution and a complete range for the needs of domestic users, condominiums and medium-sized companies and institutions. With an original and elegant design, they adapt easily to different needs of installation and use. They guarantee flexibility, advanced functionality, excellent standards and high levels of security, both for the user and the installer.
Advantages:
- Refined and compact design
- WI-FI connectivity with dedicated Web APP
- Possibility to constantly monitor the recharge status through dedicated Web APP
- Recharge options management through dedicated Web APP
- DC leakage 6mA differential protection for ground fault currents
- Possibility of wall mounting
- CE; DEKRA, TUV certifications.
Features:
- Weight 2.3Kg
- Housing material PC+ASA (UL94-V0)
- Cooling system Natural air flow
- Wall mounting
- Network 230 V±15%
- Mains frequency 50/60Hz
- Mains configuration TN/TT/IT (IT is supported only for phase-to-phase voltage < 240V)
- Efficiency >99%.
- Leakage current protection DC Leak (6ma)
- Recharge management Control via WEB APP
- Indicators Led light on case outline (green, red, blue)
- Without energy measurement
- Wifi connectivity (AP) Hotspot
- Without OCPP Protocol
- Additional functions System FW upgrade via Wif
- Recharge report Error/problem report
- Degree of protection IP54
- Operating temperature -25°C to +50°C
- Operating humidity 95% RH.
Integrated protections:
- Overcurrent protection
- Overvoltage protection
- Undervoltage protection
- Relay overtemperature protection
- Connector or socket overtemperature protection
- Cable Damage Protection
- Relay malfunction protection.
Certificates:
- IEC 61851-1
- IEC 61851-21-2 (EMC class B)
- IEC 62196-2
- EN 300 328 (RED WiFi 2.4GHz)
- EN 301 489-1/17 (RF-EMC)
- EN 62311 (Health)
- CE certified (TUV).
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: Without cable
