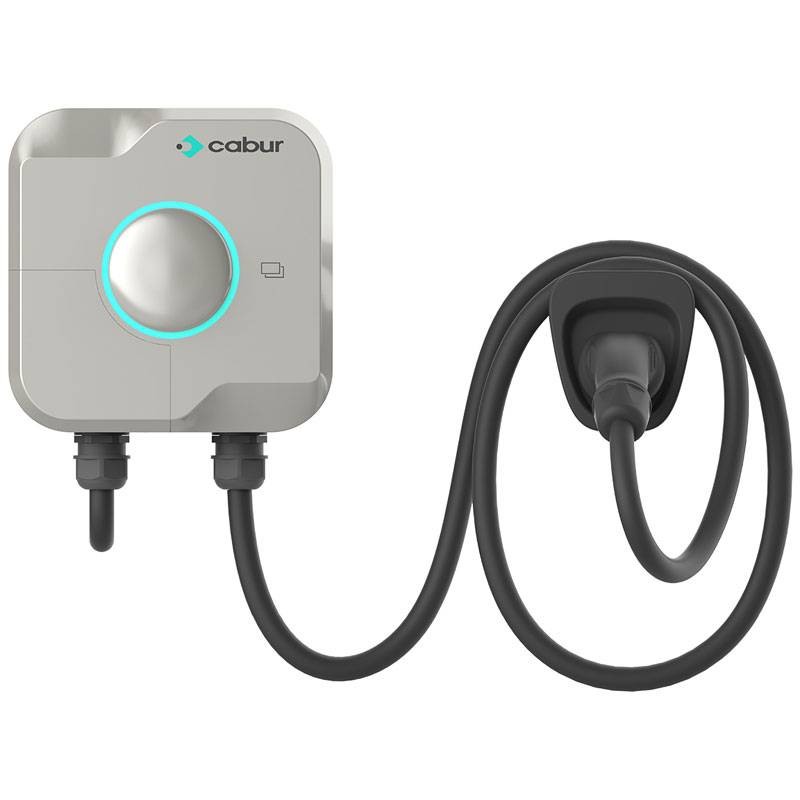

Wallbox Cabur 3.5-7.4KW charging station with cable and T2 socket EVEVO7C
CBR EVEVO7C
8017963234368
Cabur EV charger EVO wallbox charging station:
- Power 3.5-7.4KW
- With integrated cable and Type 2 cable connector
- Connectivity Bluetooth, Wifi, Ethernet, 4G, Free/FREE Access Management
- Control via App
- Control via RFID card
- Control via OCPP
Compatible Accessories:
- Cabur single-phase Smart Power Sensor meter (code EVDDSU6661PH)
- Cabur Ev Charger Stand Evo Wallbox Floor Column (code EVEVOSTD)
By coupling an EVO Series station with an external meter, it is possible to activate the POWER MANAGEMENT function, dynamic management of household loads to avoid disconnection of the power line. The same Energy Meter is required to activate features for systems with photovoltaics.
Wallbox Cabur 3.5-7.4KW charging station with cable and T2 socket EVEVO7C
€860.42
Tax included
€860.42
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
: 5
Pay in installments with Klarna
Frequently bought together
Advantages:
- Recharge authorization via multiple RFID cards or selection of recharge mode without authorization (FREE mode)
- Recharge report date/time/kWh/user
- Hourly scheduling of recharging
- App for charging control, with power adjustment capability
- Bluetooth, WiFi, Ethernet, 4G connection (built-in modem for SIM-card insertion inside the station)
- Dry contact for remote control of the start/end of the charging session
- Possibility to power the 7 kW stations also in phase-phase network
Features:
- 3.5 -7.4 kW power
- Charging mode MODE 3 CASE C (with 5m cable)
- Type 2 cable connector
- Dimensions (W x H x D) 260x260x100 mm
- Mounting Wall / On stand
- Mains 230V ±15%
- Mains frequency 50/60Hz
- Network configuration TN/TT/IT(1P+N+E or 2P+E)
- DC Leakage Current Protection (6 mA)
- User interface EV EVO app, RFID, CABUR EV NET platform via OCPP1.6J
- Start/end charging Free/FREE access Control via App Control via RFID card Control via OCPP
- Indicators LED light on socket outline (green, red, blue)
- Energy metering Electronic metering
- Connectivity Bluetooth, Wifi, Ethernet, 4G
- Power Management Dynamic (with external energy meter) / Static
- Photovoltaic integration ECO mode, ECO PLUS mode, FAST mode via external Power Management Energy Meter
- Dry contact Dry contact for start/end charge
- OCPP Protocol OCPP1.6J
- Additional functions Hourly scheduling of recharge, Integration with PV system, Clean contact start/end recharge
- Reporting Recharging report performed Error/problem report
- Built-in protections Overcurrent protection; Overvoltage protection; Undervoltage protection; Relay overtemperature protection; Connector or socket overtemperature protection; Cable damage protection
- IP rating IP 55 with T2 socket / IP 65 with cable
- IK degree of protection at 20°C IK10
- Operating temperature -30°C +50°C
- Operating humidity 95%UR.
There are no reviews
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: With cable
- Connection: Single-phase
