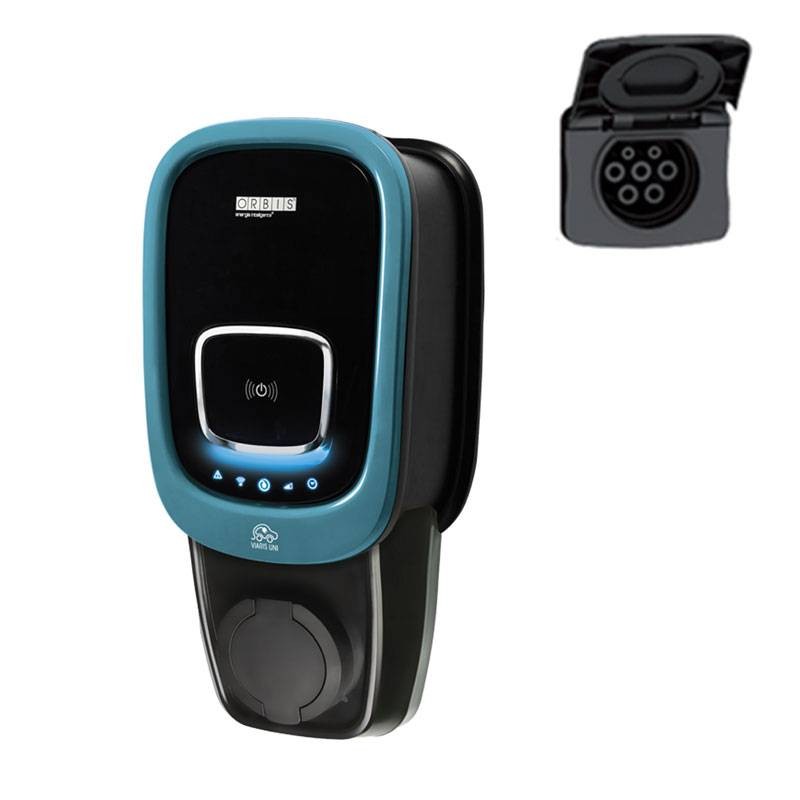

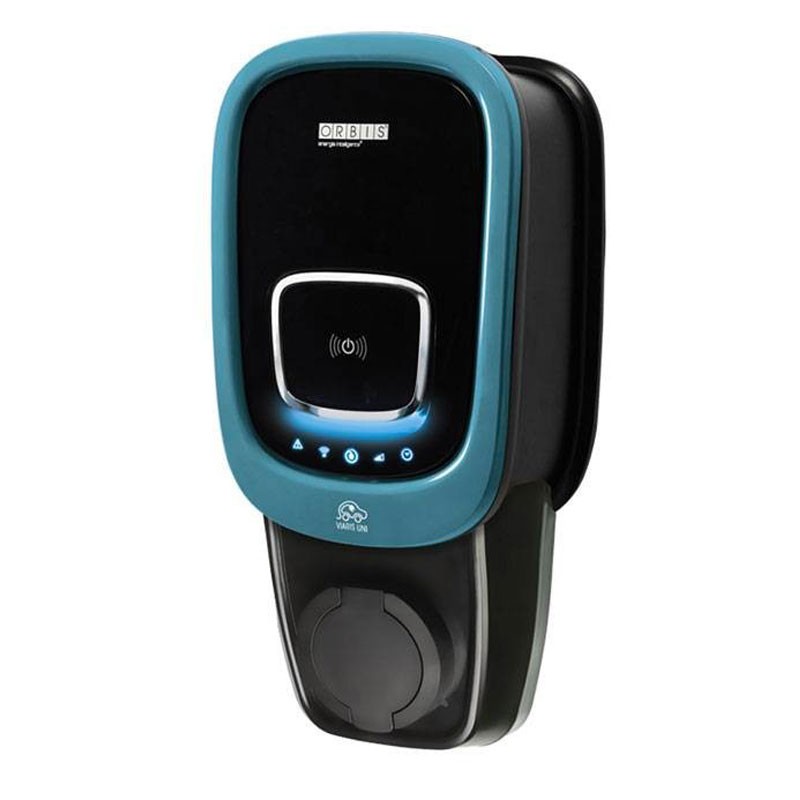

Wallbox charging station Orbis VIARIS UNI BT274 single-phase 7.4 kW 32A OB94U2COHA1
ORB OB94U2C0HA1
8426709117788
Orbis wallbox charging station VIARIS UNI BT274 single-phase one socket type 2 RFID card reader with the following characteristics:
- Station power: 7.4 kW 32A
- Power supply: 230BT274 (single-phase)
- Frequency: 50 Hz
- Charging mode: mode 3 according to EN 61851-1
- Output with Type2 socket
- WiFi communication: Present (802.11 b/g/n)
- Ethernet communication: Absent
- Touch sensor ON/OFF charger: Present
- RFID reader ON/OFF charger: Present
- MID counter: Absent
- Station status LED signaling: Present multicolor
- Charging status LED signaling: Present multicolor
- Operating temperature: -30 °C to +50 °C
- Housing material: high-strength PC
- Housing degree of protection: IP54
- Mechanical degree of protection: IK10 according to EN 62262
- Connector degree of protection: IP44
- Installation: Wall mounting
Wallbox charging station Orbis VIARIS UNI BT274 single-phase 7.4 kW 32A OB94U2COHA1
€838.17
Tax included
€838.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 2
Pay in installments with Klarna
Frequently bought together
VIARIS UNI intelligent charging stations allow the electric vehicle to be connected to the AC power grid and be able to be recharged in MODE 3. A special power supply system equipped with specific connectors, where there is a pilot control that, through a "universal" communication system between the station and the vehicle, ensures a safe charging process for the user and prevents damage to the vehicle's battery system.
Suitable for use in private areas such as garages for single-family homes or apartment buildings, offices, hotels. VIARIS UNI charging stations have a robust casing designed for indoor installation and wall mounting. VIARIS UNI allows you to keep everything under control with indicator lights, which at all times inform about the operational status of the charging station.
A range of optional accessories completes the functionality of the equipment, such as an energy meter and Ethernet communication. The VIARIS UNI charging station is equipped as standard with an integrated device that ensures that the power supply is cut off in the event of DC fault currents greater than or equal to 6 mA.
Included as standard:
- Charge modulator based on instantaneous household consumption. Power demand is adjusted to achieve charging in the shortest possible time, without exceeding contracted power
- WIFI communication
- App for managing charging and monitoring energy consumption. The app also allows the station to be remotely updated
- Touch sensor for charge activation / deactivation
- RFID reader for charge activation / deactivation
- Built-in device that ensures power supply interruption in case of DC fault current higher than 6 mA according to IEC 64-8 V5 2019 02
- Input for external control (home automation control)
- Relay output for air extractor control
- Hourly programming for use in different time slots
The stations implement the standard MQTT communication protocol, which enables remote control and visualization of the charging system and, in turn, facilitates integration with other management platforms. Compatibility with management platforms via OCPP-J 1.6 protocol on MQTT.
There are no reviews
Data sheet
- Type: Electric Vehicles Charge
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
