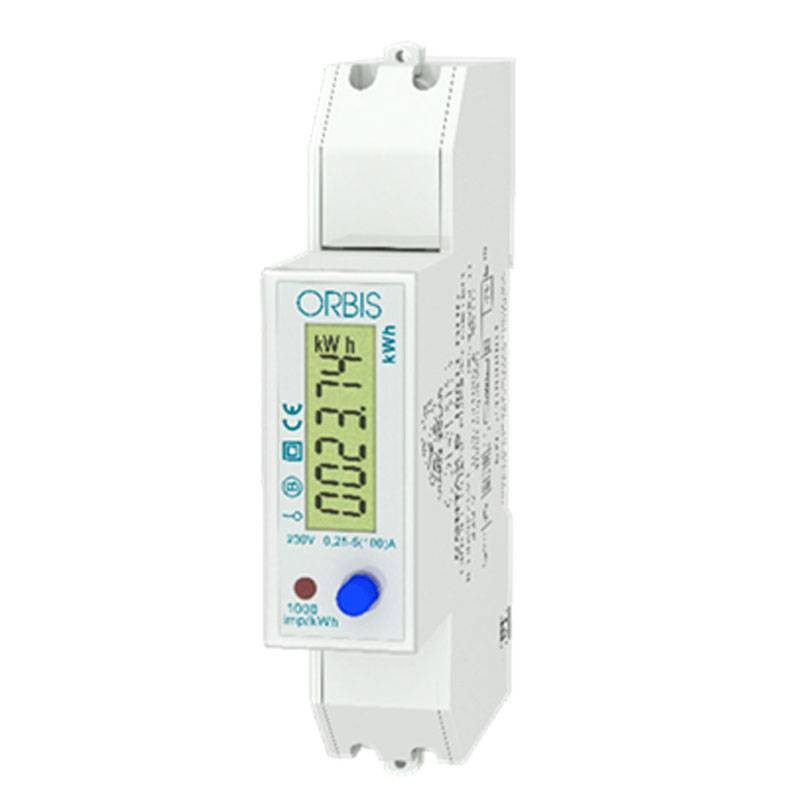

Orbis CONTAX D-10011-BUS 100A 1M single-phase energy meter OB709800
ORB OB709800
8426709122768

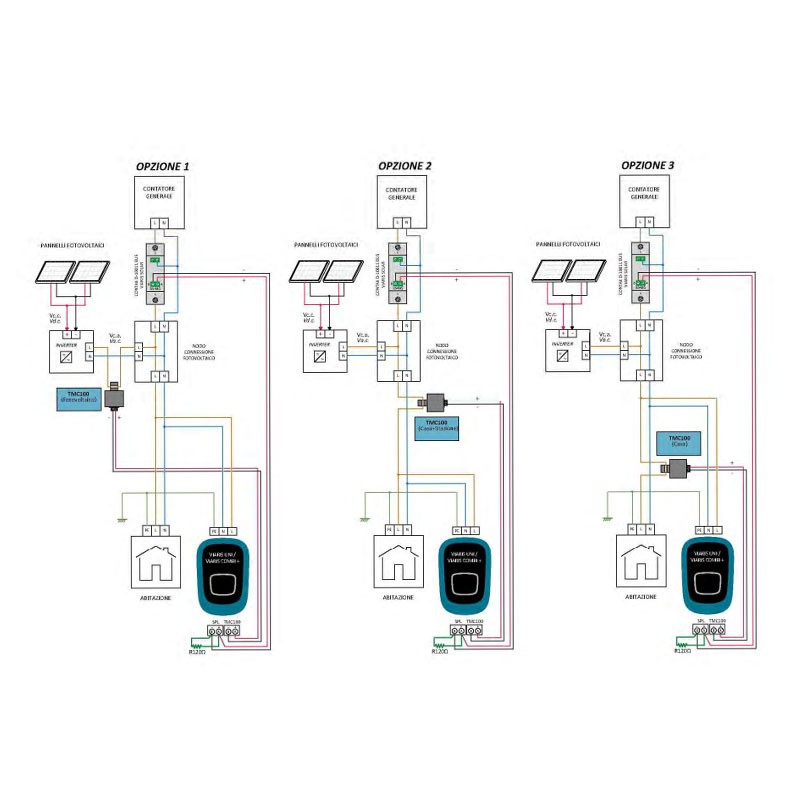

Single-phase energy meter Orbis CONTAX D-10011, is a two-wire direct-insertion single-phase energy meter with RS485 communication and Mod-bus protocol, for DIN rail installation. And designed to enable integration of VIARIS UNI / VIARIS COMBI+ model charging stations in systems with single-phase photovoltaic generation:
- Supply voltage: 230 VAC
- Reference frequency: 50 Hz
- Reference current 0.25-5 (100) A
- Pulse constant: 1000 imp/kWh
- Led flashing pulses: 90 ms
- LCD display: LCD 5 + 1
- 1 Module
Orbis CONTAX D-10011-BUS 100A 1M single-phase energy meter OB709800
€227.09
Tax included
€227.09
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
Contax D-10011 BUS VIARIS SOLAR is a two-wire direct-insertion single-phase energy meter with RS485 communication and Mod-bus protocol for DIN rail installation. It is designed to enable the integration of VIARIS UNI / VIARIS COMBI model charging stations, in systems with single-phase photovoltaic production.
Features:
- Operating temperature: -20°C to +55°C
- Transport and storage temperature: -20 to +70°C
- Average annual humidity: 75 %
- Maximum humidity: 95 %
- Accuracy class: Class 1.0
- Starting current: 0.004 Ib
- Own consumption: 0.4 W, <8 VA
- Communications: RS485, Modbus-RTU protocol
- Complies with standard: EN50470-1/3
There are no reviews
Data sheet
- Type: Counters energy
- Connection: Single-phase
