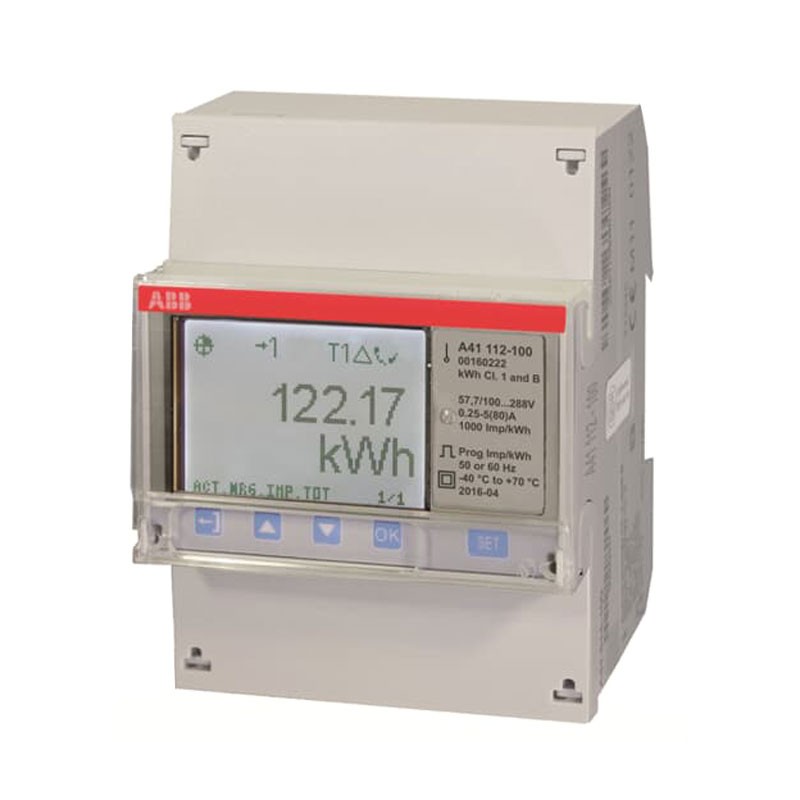

Energy Meter ABB A41 112-100 single-phase 60-288VCA A411121
ABB A411121
7392696705004
ABB A41 112-100 Single-phase Energy Meter, Rated Voltage 60-288V AC, Rated Current 80A.
The A series EQ Meters allow the visualization of consumption (active, reactive, apparent energy) and of the main electrical parameters (V, I, cosfi, f) of single-phase systems.
Energy Meter ABB A41 112-100 single-phase 60-288VCA A411121
€427.37
Tax included
€427.37
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
The following quantities can also be displayed, depending on the version chosen:
- Breakdown of consumption into tariffs
- Total harmonic distortion THD and single harmonics
- Event log
- Recording of consumption history
- Load profile analysis
- Maximum demand
- All codes are certified according to MID directive
- Equipped with outputs for managing pulses or alarms, and infrared port for communication with KNX adapter
- RS485 version equipped in standard with integrated serial communication port for Modbus RTU (RS-485).
Features:
- Product width: 70 mm
- Product height: 26.5 mm
- Product depth: 65 mm
- Product net weight: 0.246 kg
- Ambient temperature: Operating -40 +70 °C
- Communication interface: Modbus
- Cable cross-sections main circuit: 1 ... 25 mmq
- Protection class: IP20
- Housing material: Plastic
- Frequency (f): 50 ... 60 Hz
- Function: Electricity meter
- Measurement type: Direct connection
- Mounting type: DIN rail
- Number of phases: 1
- Object classification code: P
- Current consumption (@Pcons): 0.807 W
- Rated current (In): 80 A
- Rated voltage (Ur):(Un) N-L 57.7 ... 288 V.
Il prodotto funziona, ma la documentazione è minimalista e quindi carente, creando qualche difficoltà nella configurazione.
Data sheet
- Type: Counters energy
