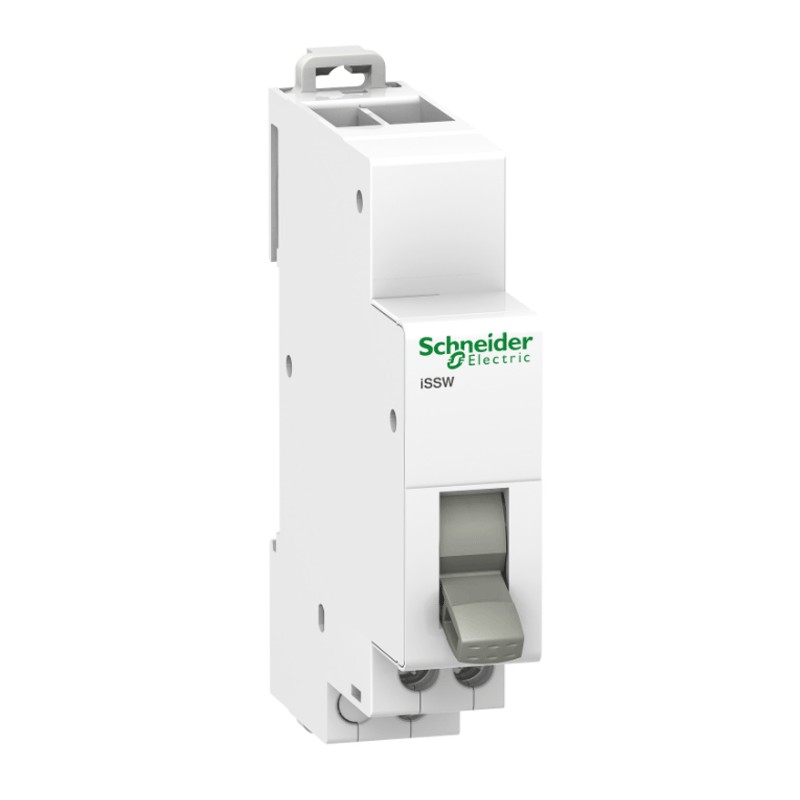

Schneider switch 1-0-2 20A 1M ISSW 1 circuit A9E18073
SNR A9E18073
3606480088506
Schneider ISSW switch, 1-0-2, with the following characteristics:
- Rated operational voltage [Ue] 250 V "AC" "50/60 Hz".
- Rated operational current [Ie] 20 A
- Type of control Lever 3 positions
- Symbology 1 - 0 - 2
- Composition and type of contacts 1 C/O
- 1 module
Schneider switch 1-0-2 20A 1M ISSW 1 circuit A9E18073
€21.08
Tax included
€21.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 45
: 3
Pay in installments with Klarna
Features:
- Schneider Series
- Steps 9 mm 2
- Height 82 mm
- Width 18 mm
- Depth 75 mm
- Electrical life AC-22: 30000 cycles cos Phi = 0.8
Terminal connections
Alternating tunnel clamp (bottom side) 2 cables 0.5...2.5 mm² flexible,
Tunnel alternating terminal (bottom side) 2 wires 0.5...2.5 mm² rigid without cable termination
- Wire stripping length 9 mm
- Tightening torque 1 Nm
- Degree of protection IP20
- Tropicalisation 2
- Pollution degree 3
- Relative humidity 95 % at 55 °C
- Ambient operating temperature -20...50 °C
- Storage temperature -40...70 °C
- Mounting method
- DIN rail mounting bracket
- Colour White
There are no reviews
Data sheet
- Type: Commutators
