Lovato GN series switch scheme 92- 20A 7GN2092O88
LOV 7GN2092O88
3850144002456
Lovato 7GN series rotary cam switch with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Rated operating voltage: 480V
- Rated operating impulse voltage: kV 4
- Conventional free air thermal current Ith: IEC/EN UN 32
- Operating current: IEC UN 20A
- Power dissipation: 0.8W
- Screw terminals: M3
- Tightening torque for terminals max: Nm 0.5
- Mechanical life: 5x106 cycles
Lovato GN series switch scheme 92- 20A 7GN2092O88
€28.39
Tax included
€28.39
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Other technical features:
- Lovato series
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- Switching scheme: 92 - 4-pole ON/OFF switch
- Number of elements: 2

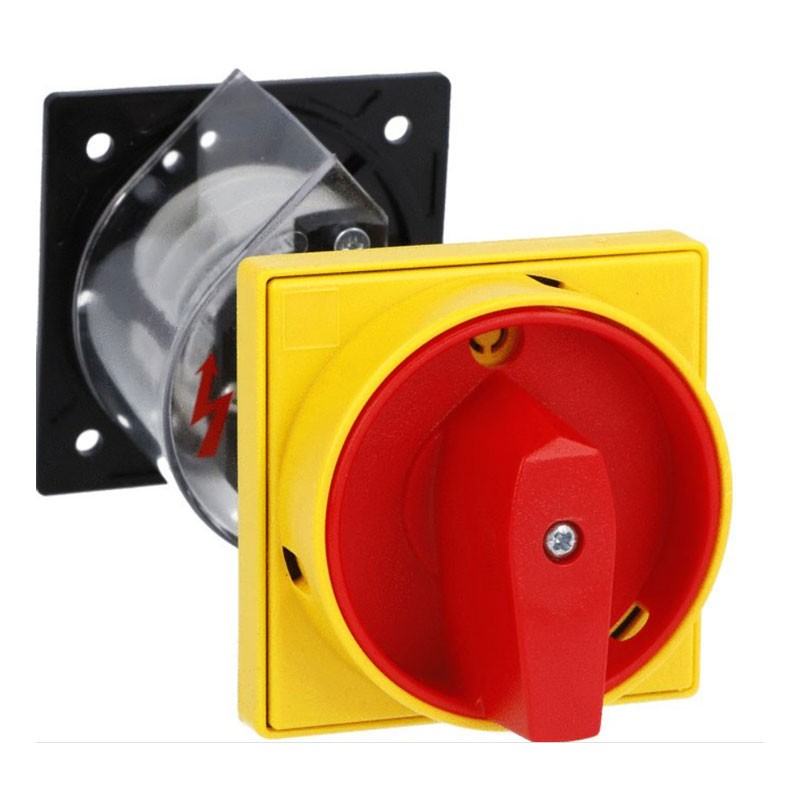

- Mounting module: rear mounting with red/yellow padlockable handle in 0, door coupling and protective cover
- Rear mounting with red/yellow padlockable handle in 0
- Door coupling and protective covers, front plate 65X65mm
- Frontal IP grade: IP40
- IP grade of terminals IP00
There are no reviews
Data sheet
- Type: Commutators
