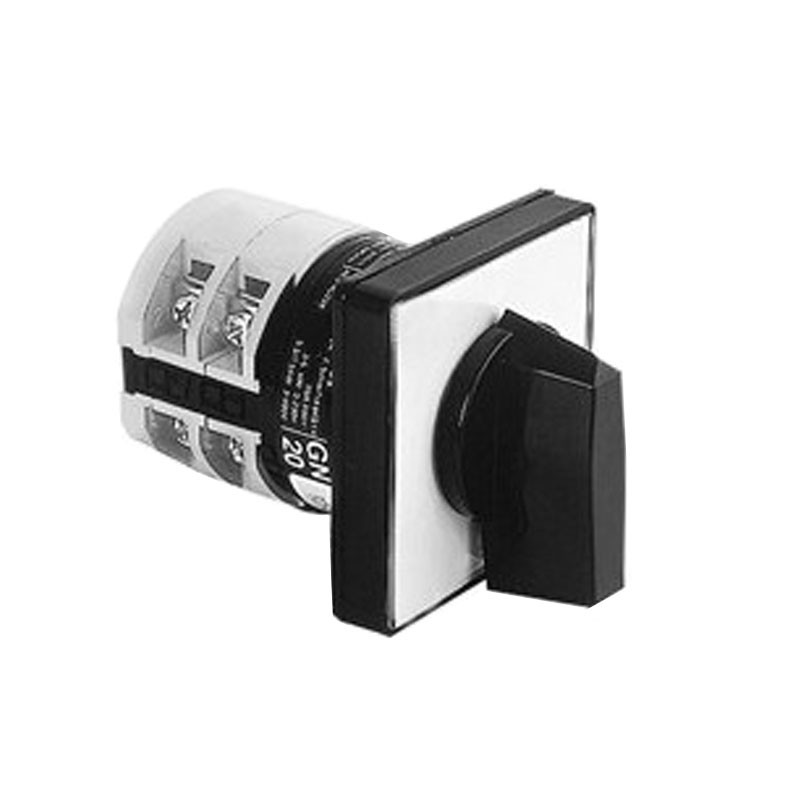

Lovato GN series three-pole switch scheme 53- 63A 7GN6353U
LOV 7GN6353U
3850144003903
Lovato 7GN series rotary cam switch with the following characteristics:
- Rated insulation voltage Ui: IEC/EN 690V - UL/CSA 600V
- Rated impulse withstand voltage Uimp kV 6
- Conventional free air thermal current Ith: IEC/EN UN 63 - UL/CSA UN 60
- Rated operating voltage: 480V
- Rated operating impulse voltage: kV 4
- Mounting module: front mounting with black handle
- 3 poles - 3 elements
- Rated short-time withstand current Icw: 1s UN 1600
Lovato GN series three-pole switch scheme 53- 63A 7GN6353U
€92.72
Tax included
€92.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Other technical characteristics:
- Conductivity: 10/5 mA/V
- Power dissipation: 3.4W
- M5 screw terminals
- Tightening torque for terminals max Nm: 2
- Mechanical life: 5x10⁶ cycles
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- IP rating of front plate IP40 - IP rating of terminals IP00
- Dimensions: front plate 65X65mm
There are no reviews
Data sheet
- Type: Commutators
