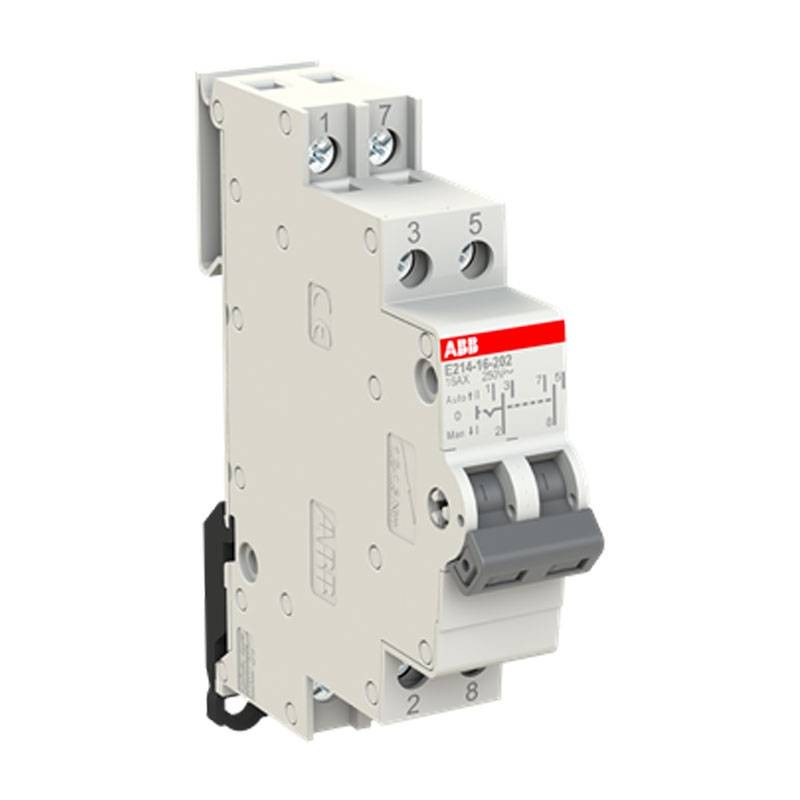

ABB Switch E214 Series 2P 16A 1 Module M093874
ABB M093874
7612270938742
ABB E214 series switch with the following features:
- Rated voltage: 250V
- Rated operating voltage: 250V
- Rated current: 16A
- Rated service short-circuit capacity: 3 kA
- Power loss: 0.82W
- Number of poles: 2
- Number of modules: 1
- Degree of protection: IP20
ABB Switch E214 Series 2P 16A 1 Module M093874
€34.05
Tax included
€34.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 46
: 3
Pay in installments with Klarna
It can be used to control the main installation of an emergency power supply. This device is distinguished by ease of use and installation, as well as excellent functionality.
Features:
- Rated frequency: 50/60 hz
- Number of c/o contacts: 2
- Number of NC contacts: 0
- Number of NO contacts: 0
- Number of NC main contacts: 0
- Number of NO main contacts: 0
- Number of c/o auxiliary contacts (SPDT): 2
- Tightening torque: 1.2-1.5 Nm
- Switch type: Double breaker contacts
- Conductor Material: Copper
- Note: Sealable in the On and Off positions
- Cover color: Gray
- Color of control element: Gray
- Connection capacity: Rigid 1x16 mm² - Rigid 2x2.5 mm² - Flexible 1x0.752x2.5 mm²
- Ambient temperature: In operation -25...+55 °C - In storage -40...+70 °C
- Product width: 18 mm
- Product height: 85 mm
- Product depth: 68 mm
- Product length: 68 mm
- Built-in depth (t2): 68 mm
Data sheet
- Type: Commutators
