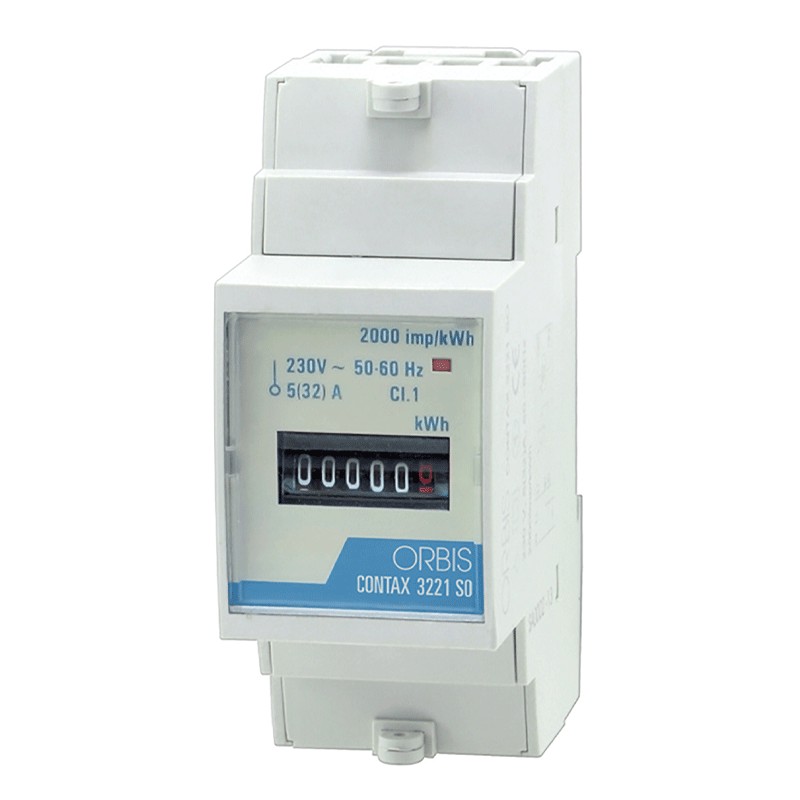

Orbis CONTAX 3221 electricity meter 32A single-phase 2 modules OB703099
ORB OB703099
8426709104320
CONTAX 3221 SO single-phase active energy meter with the following features:
- Nominal voltage: 230 V
- Supply range: 115 V AC to 265 V A
- Nominal frequency: 50 / 60 Hz
- Intensity Ib (Imax): 5 (32) A
- Operating current: 0.25 A to 32A
- 2 modules
Orbis CONTAX 3221 electricity meter 32A single-phase 2 modules OB703099
€40.11
Tax included
€40.11
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 29
: 9
Pay in installments with Klarna
Single-phase modular meters that allow you to control the active energy consumption in a given installation.
Characteristics:
- Orbis series
- Direct insertion
- Electromechanical display
- LED flashing 0.5Wh/imp
- Compliant with EC directives and EN 61036
- Starting current with phase shift 1: typically 20 mA
- Self-consumption: Voltmetric circuit 0.47 W (7.5 VA) and current-measurement circuit 0.04 W
- Accuracy class: 1 EN 62053-21
- Numerator (not resettable): Electromechanical = 5 digits + 1 decimal
- Pulse output: Interface: optical coupler pulse duration > 30 ms, voltage 18÷27 V DC, limit values 60 V DC max 30 mA
- Operating temperature: -20 °C to +50 °C
- Installation: 35 mm DIN rail according to EN 60715
- Sealable terminal cover: YES
- 6 digit electromechanical numerator (5 units + 1 decimal) not resettable
- LED indication of active energy consumption
- Pulse output for PC visualization, through specific software and relative concentrator module
Perfecto...fácil de comprar y pagar...
El envío también 'llegó un día antes el embalaje bien .
conforme alla descrizione, montato , vedrò in futuro se è affidabile
Prodotto conforme a quanto richiesto, sicuramente ditta da consigliare.
Data sheet
- Type: Counters energy
- Installation: Din
