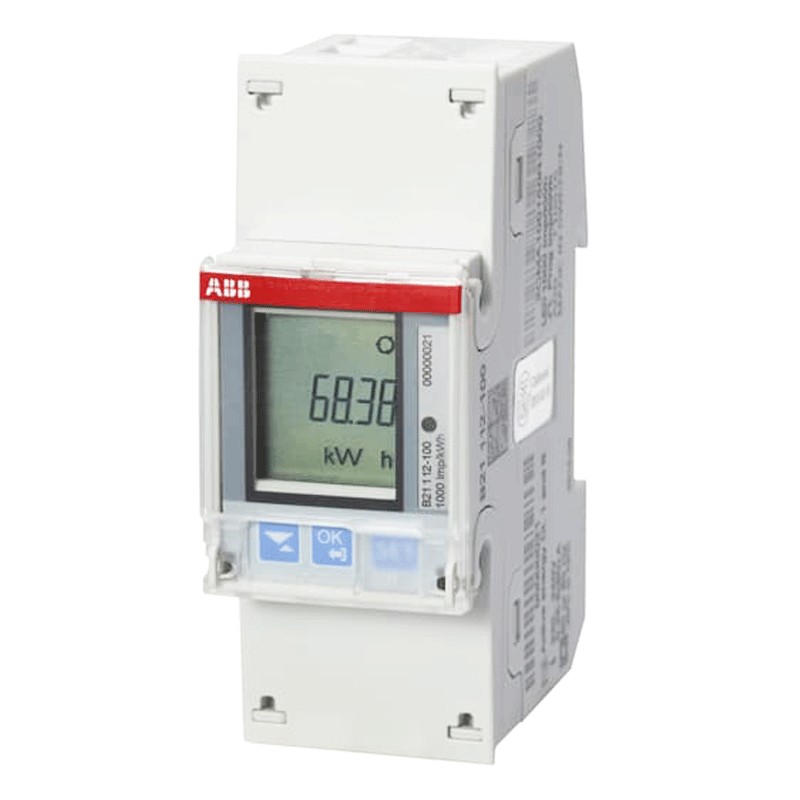

Energy Meter ABB Smart Meter 230V B211121
ABB B211121
7392696001502
ABB Smart Meter energy meter with the following features:
- Ideal because of its excellent compactness
- Ideal solution for 230 Vac installations
- Ambient temperature in operation -40 +70 °C
- Nominal current 65A
- Nominal voltage 220/240 Vac
- Degree of protection IP20
- Plastic container material
- Frequency 50/60 Hz
- DIN rail mounting type
Energy Meter ABB Smart Meter 230V B211121
€191.09
Tax included
€191.09
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 49
Pay in installments with Klarna
They allow the following quantities to be displayed, depending on the version chosen:
- Active, reactive, apparent energy
- Active, reactive, apparent power, currents
- Frequency
- Voltages
- Division of consumption into tariffs
- Power factor
- Bidirectional consumption
All codes are certified according to the MID directive, are equipped with outputs for pulse or alarm management, and with infrared port for communication with KNX adapter. Depending on the version, the meters are equipped with integrated serial communication interfaces for Modbus RTU (RS485 version) and Meter BUS (M-Bus versions).
Features:
- Abb series
- Product width 35 mm
- Product height 26.5 mm
- Product depth 65 mm
- Product net weight 0,15 Kg
- Ambient temperature in operation -40 +70 °C
- Active Energy Accuracy Cl. ±1% (or B for MID meters)
- Modbus communication interface
- MODBUS RTU communication
- Cable cross-sections - main circuit 1...25 mm²
- Nominal current 65A
- Nominal voltage 220/240 Vac
- Degree of protection IP20
- Housing material plastic
- Frequency 50/60 Hz
- Function Electricity meter
- Type of measurement direct connection
- DIN rail mounting type
- Number of phases 1
- Current consumption (@Pcons) 0.414 W
- Main product type B21
- Date RoHS 2012-36
- Reference standards EN 50470-3
- Sub function Steel
Data sheet
- Type: Counters energy
- Voltage: 220/240VAC
- Amps: 65A
